Komatsu PC130-7 User Manual

OPERATION DETAILED CONTROLS AND GAUGES
3-35
AIR CONDITIONER CONTROLS 3
Air Conditioner Control Panel 3
OFF Switch
Switch (1) is used to stop the fan and air conditioner.
q When OFF switch (1) is pressed, the set temperature and
air flow displayed on monitor (7), the lamps above auto
switch (5), and air conditioner (8) go out, and operation
stops.
REMARK
When switch (1) is turned to the OFF position, the lamp above
FRESH/RECIRC selector switch (6) does not go out, but this is
not an abnormality.

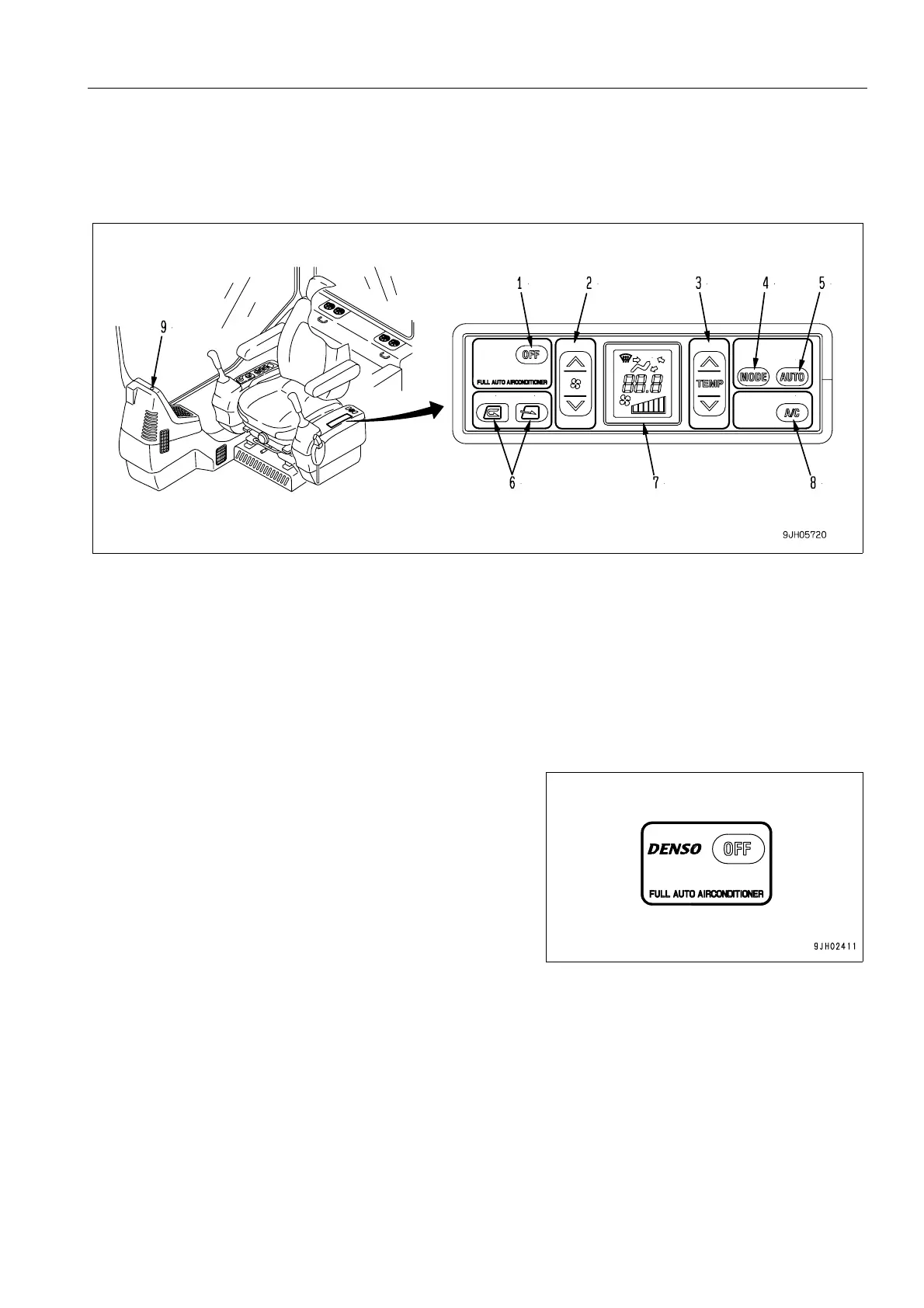

(1) OFF switch (6) FRESH/RECIRC selector switch
(2) Fan switch (7) Display monitor
(3) Temperature control switch (8) Air conditioner switch
(4) Vent selector switch (9) Sunlight sensor
(5) Auto switch
A
