STEERING THE MACHINE 3
Steering 3
WARNING
Before operating the travel levers, check the direction of the track frame (the position of the sprocket). If
the sprocket is at the rear, the machine moves in the reverse direction to the operation of the travel levers.
Use the travel levers to change direction.
Avoid sudden changes of direction as far as possible. In partic-
ular, when carrying out counter-rotation (spin turn), stop the
machine first before turning.

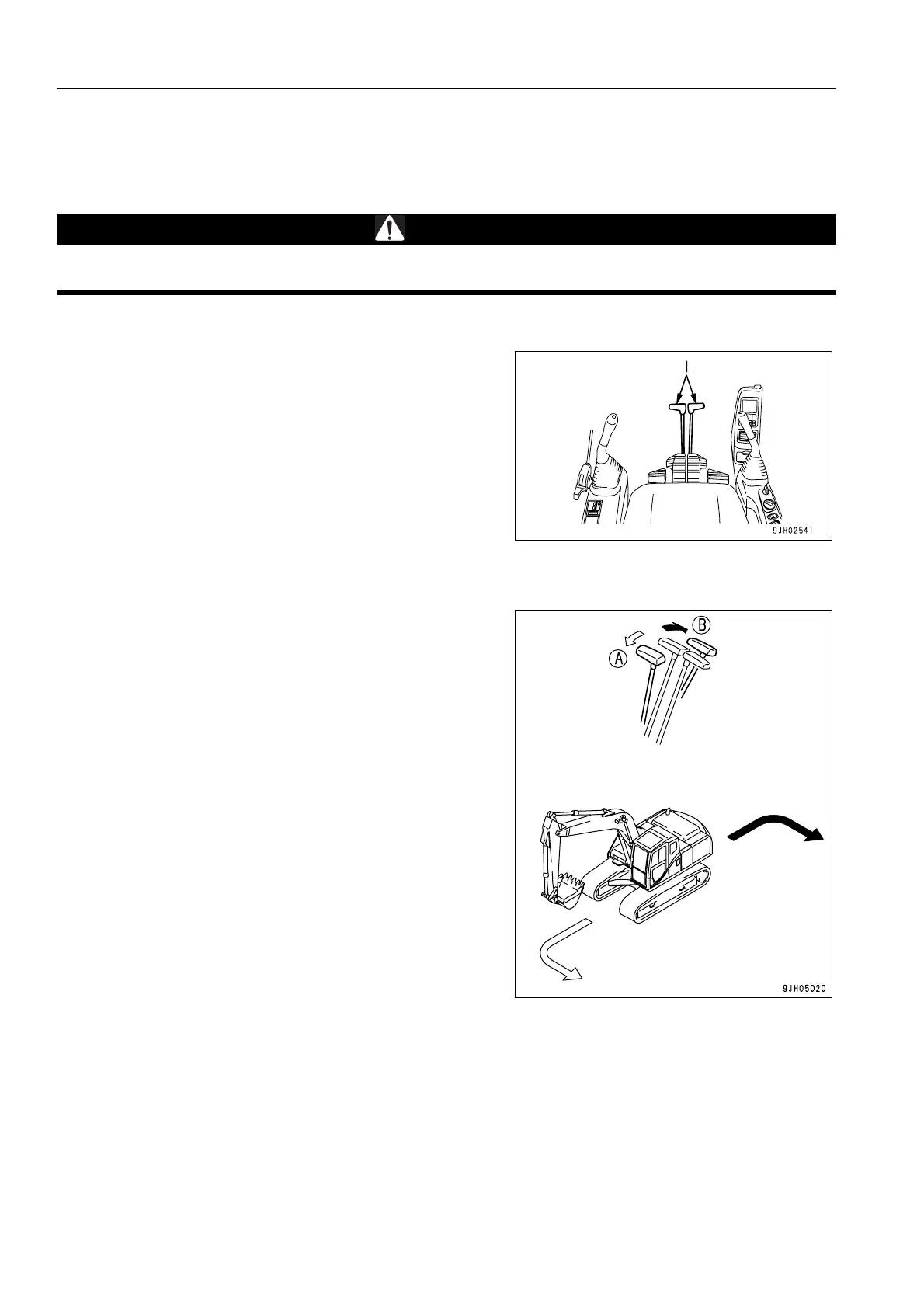

Operate two travel levers (1) as follows.
Steering the Machine when Stopped
When turning to the left:
Push the right travel lever forward to turn to the left when trav-
eling forward; and pull it back to turn left when traveling in
reverse.
(A): Forward left turn
(B): Reverse left turn
REMARK
When turning to the right, operate the left travel lever in the
same way.
