MACHINE OPERATIONS AND CONTROLS OPERATION
3-90
SWINGING 3
WARNING
The tail of the machine extends outside the tracks. Before
operating the swing, check that the area around the
machine is safe.

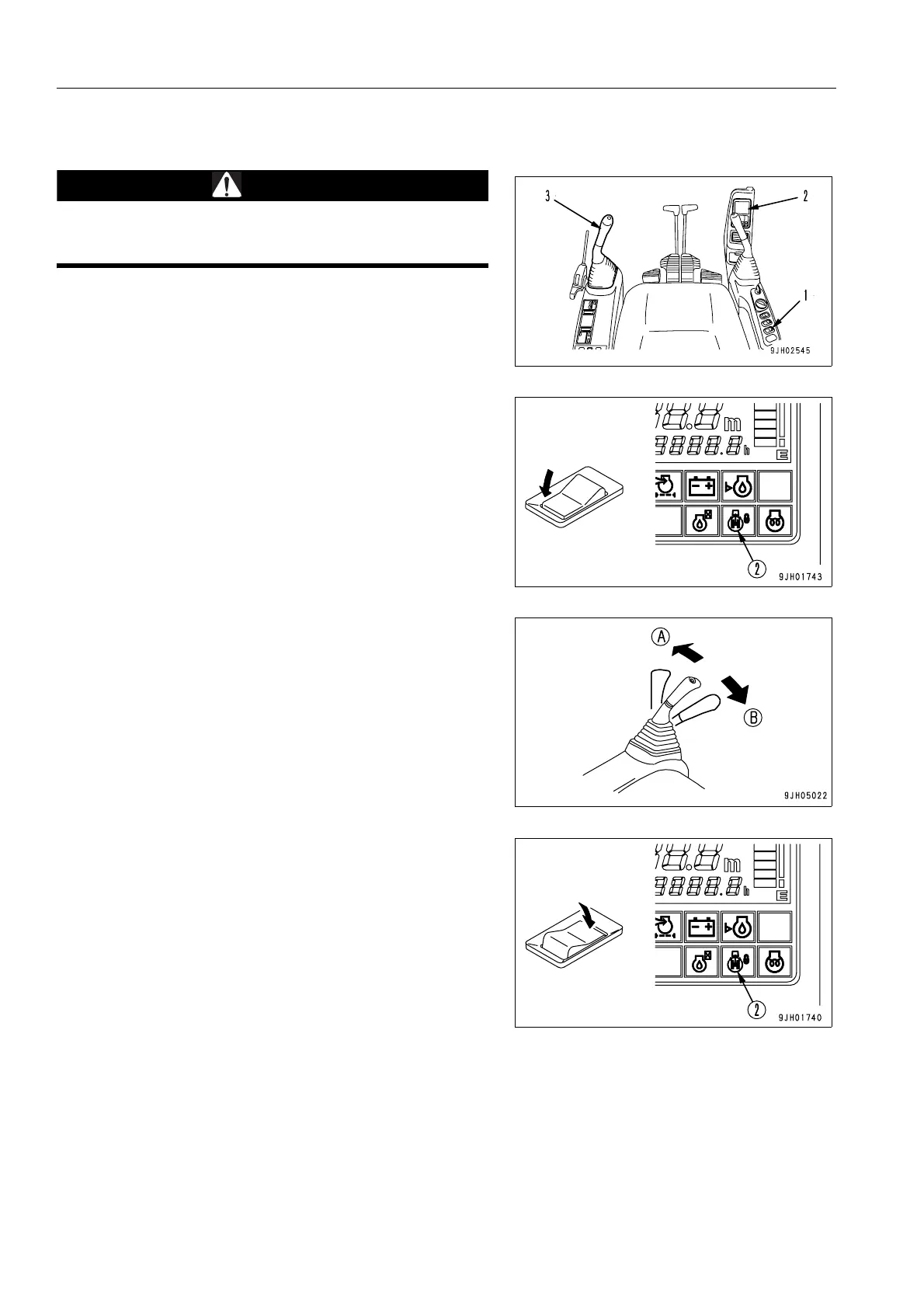

1. Before starting the swing operation, turn swing lock switch
(1) OFF and check that swing lock monitor (2) has gone
out.
2. Operate left work equipment control lever (3) to swing the
upper structure.
(A): Left swing
(B): Right swing
3. When not using the swing, turn swing lock switch (1) ON.
Check that swing lock monitor (2) lights up.
OFF
ON
