SPECIFICATIONS SPECIFICATIONS
5-5

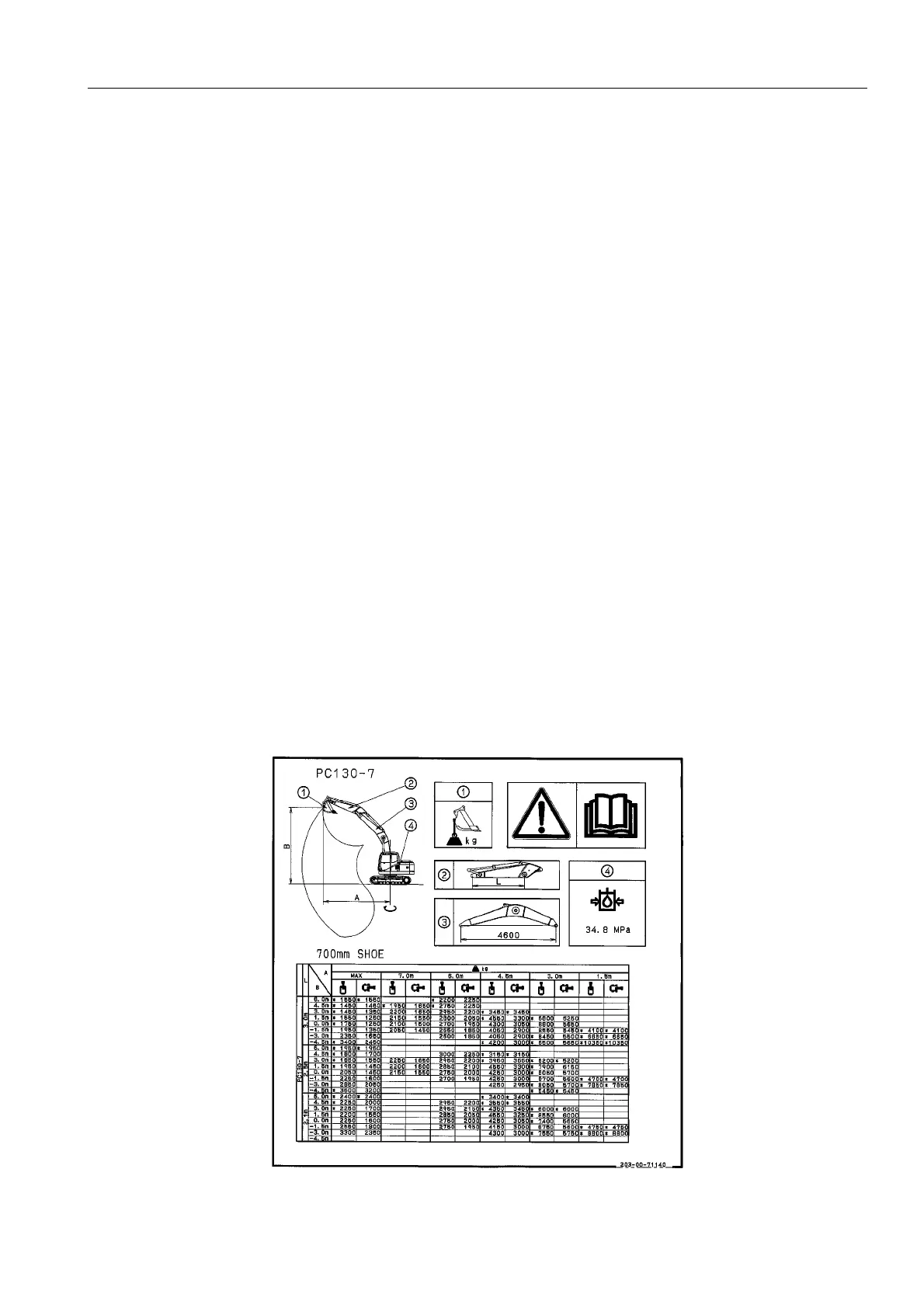

EXPLANATION OF LIFTING CAPACITY CHART (PC130-7 1- PC BOOM) 5
LEGEND
A : Reach from swing centre
B : Bucket hook height
OF : Lifting capacity (rating overfront)
OS : Lifting capacity (rating overside)
LEGEND
(1) Position of lifting point
(2) Arm length:
(3) Boom length
(4) Hydraulic pressure: 37.3 MPa
WORKING CONDITIONS:
q WITH BUCKET (0.53m
3
CECE).(469 kg)
q IF OBJECT HANDLING IS PERFORMED WITH OTHER
TOOL INSTALLED, THE WEIGHT DIFFERENCE OF THE
TOOL SHALL BE DEDUCTED FROM THE VALUES OF
THIS TABLE.
q WITH FULLY EXTENDED BUCKET CYLINDER.
q ON A COMPACT HORIZONTAL LEVEL GROUND.
WITH 700 mm WIDTH SHOE.
Loads do not exceed 87% of hydraulic capacity or 75% of tipping capacity (* load limited by hydraulic capacity
rather than tipping)
