ATTACHMENTS AND OPTIONS GENERAL PRECAUTIONS FOR SAFETY
6-3
OPERATION 6
To release a bucket or attachment
1. If the bucket or attachment has any hydraulic connections to the machine these must be disconnected before
proceeding.
WARNING
Pressure in the system can cause injury. Follow all instructions in ATTACHMENT REMOVAL AND INSTAL-
LATION.
2. Position the attachment on the ground safely where it is to
be left. Take care that it will not roll or slide after release.
3. Operate the switch (1).
NOTE: The switch has a safety lock mechanism to prevent
accidental operation. Slide the lock towards you then
rock the switch. The lamp on the switch will come on
and a warning buzzer will sound.
4. Depending on the design of the quick coupler it may be necessary to operate one of the hydraulic functions of
the machine (bucket, boom, arm, or swing) to raise the pressure in the hydraulic system. If using the swing
function activate the Swing Lock first (See “Swing Lock Switch” on page 19.).
5. The quick coupler will now release the attachment/bucket.
To pick up a new bucket or attachment
1. Position the quick coupler over the new bucket or attachment
2. Operate the switch (1).
NOTE: The switch has a safety lock mechanism to prevent accidental operation. Slide the lock towards you then
rock the switch. The lamp on the switch will come on and a warning buzzer will sound.
3. Depending on the design of the quick coupler it may be necessary to operate one of the hydraulic functions of
the machine (bucket, boom, arm or swing) to raise the pressure in the hydraulic system. If using the swing
function activate the Swing Lock first (See “Swing Lock Switch” on page 19.). The quick coupler will move to
the 'released' position.
4. Position the quick coupler in the mating portion of the bucket or attachment, moving the bucket cylinder, arm
and boom as necessary. Follow the quick coupler manufacturer's instructions.
5. Return switch (1) to the OFF position. The lamp will go off and the buzzer will stop. If necessary operate one of
the machine control levers to raise the system pressure. The quick coupler will lock onto the bucket or attach-
ment.

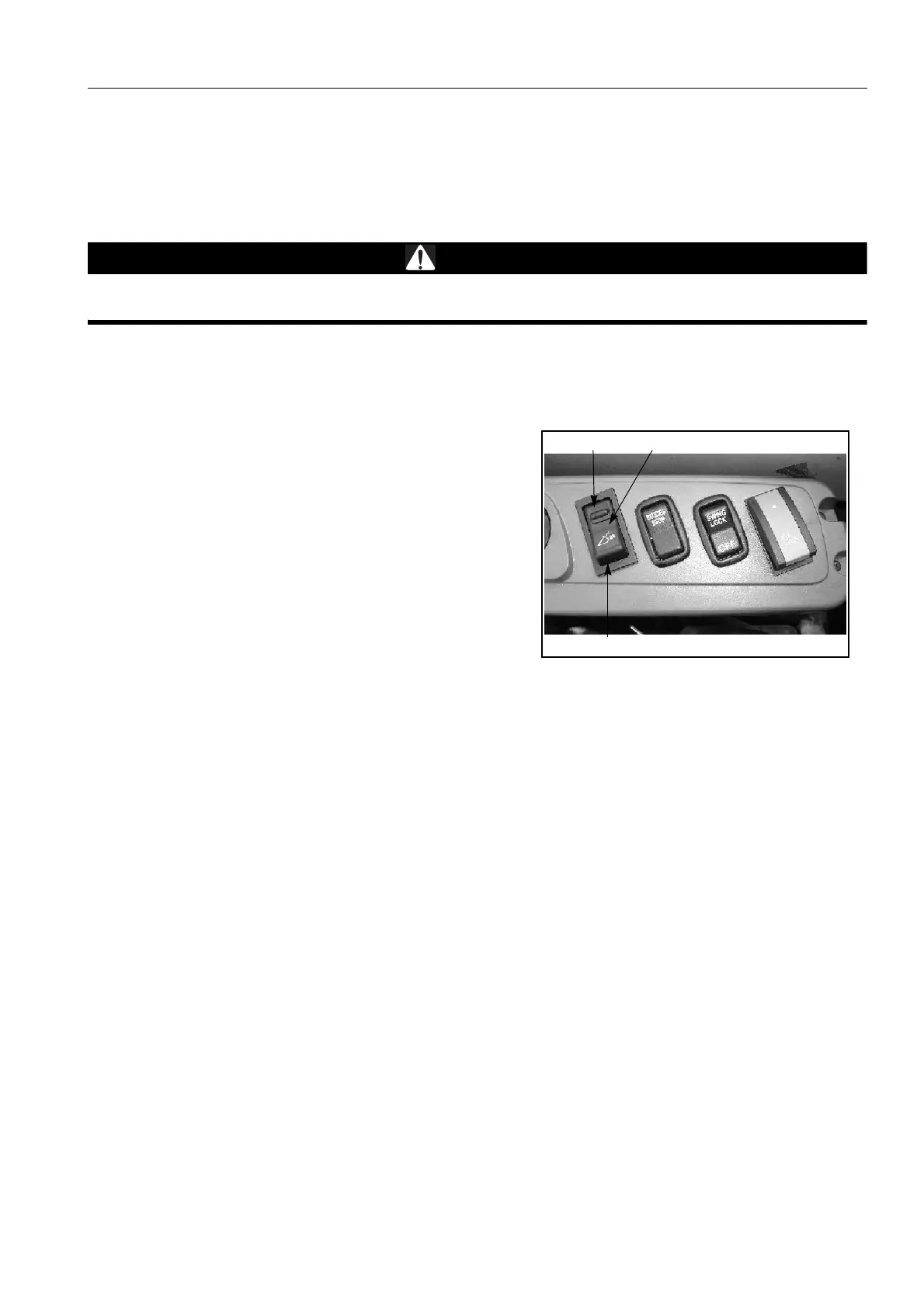

B
A
1
A When depressed at this point the quick coupler is set to
LOCK
B When depressed at this point the quick coupler is set to
RELEASE
