OPERATION TROUBLES AND ACTIONS
3-123

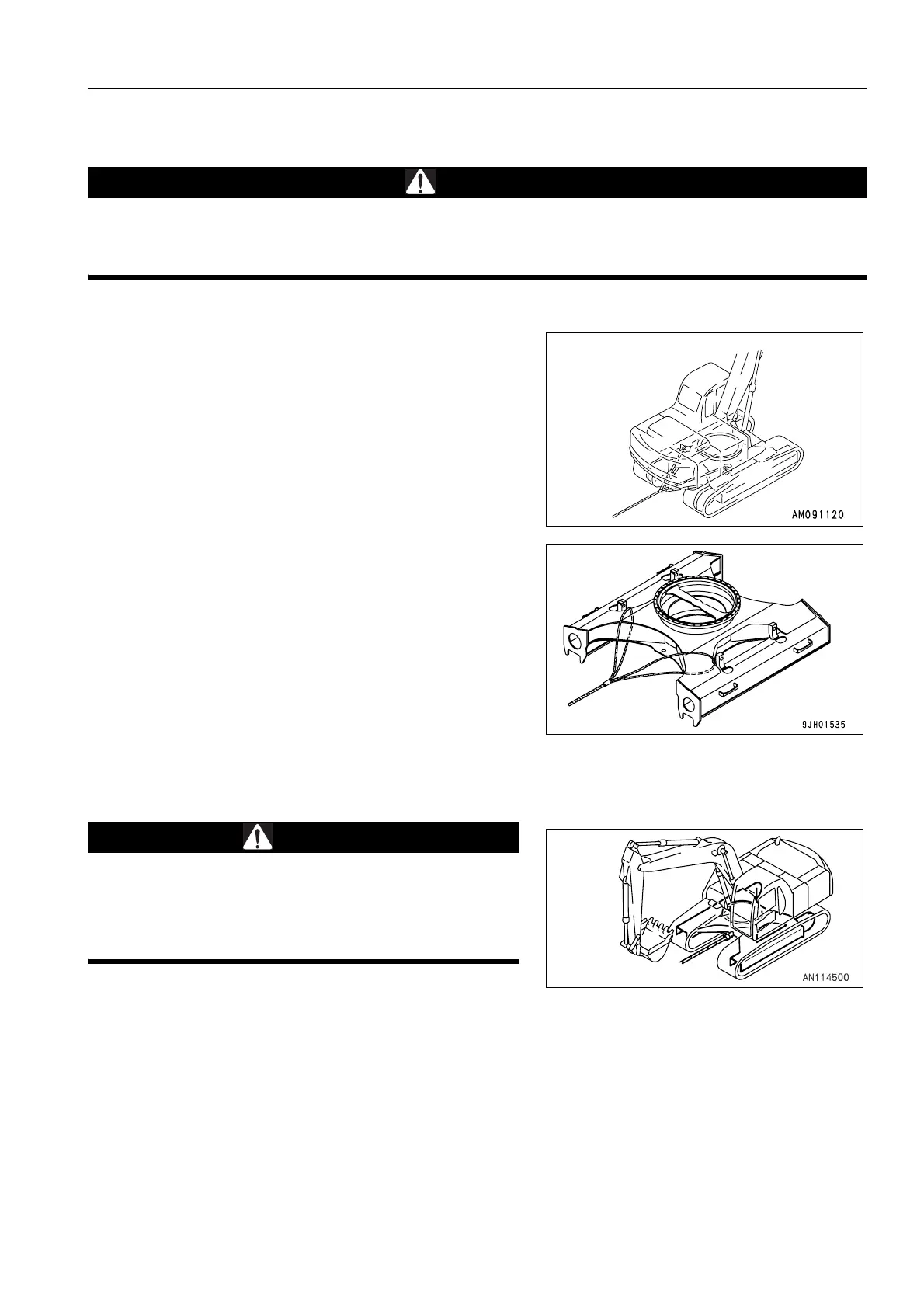

TOWING THE MACHINE 3
WARNING
q When towing the machine, use a wire rope that has ample strength for the weight of the machine that
is being towed.
q Do not apply a sudden load to the wire rope.
If the machine sinks in mud and cannot get out under its own
power, or if the drawbar pull of the excavator is being used to
tow a heavy object, use a wire rope as shown in the diagram
on the right.
Place pieces of wood between wire ropes and body to prevent
damage to ropes and body.
At this time, never use the hole for light-weight towing.
LIGHTWEIGHT TOWING HOLE 3
WARNING
q The shackle must always be used.
q Hold the rope level and direct it straight to the track
frame.
q Move the machine slowly in the Lo mode.
There is a hole in the track frame to fit the shackle when towing
light objects.
Permissible towing weight: Max. 39,200 N (4,000 kgf)
