ATTACHMENTS AND OPTIONS MACHINE READY FOR ATTACHMENT
6-15
When Using General Attachment Such as Crusher 6

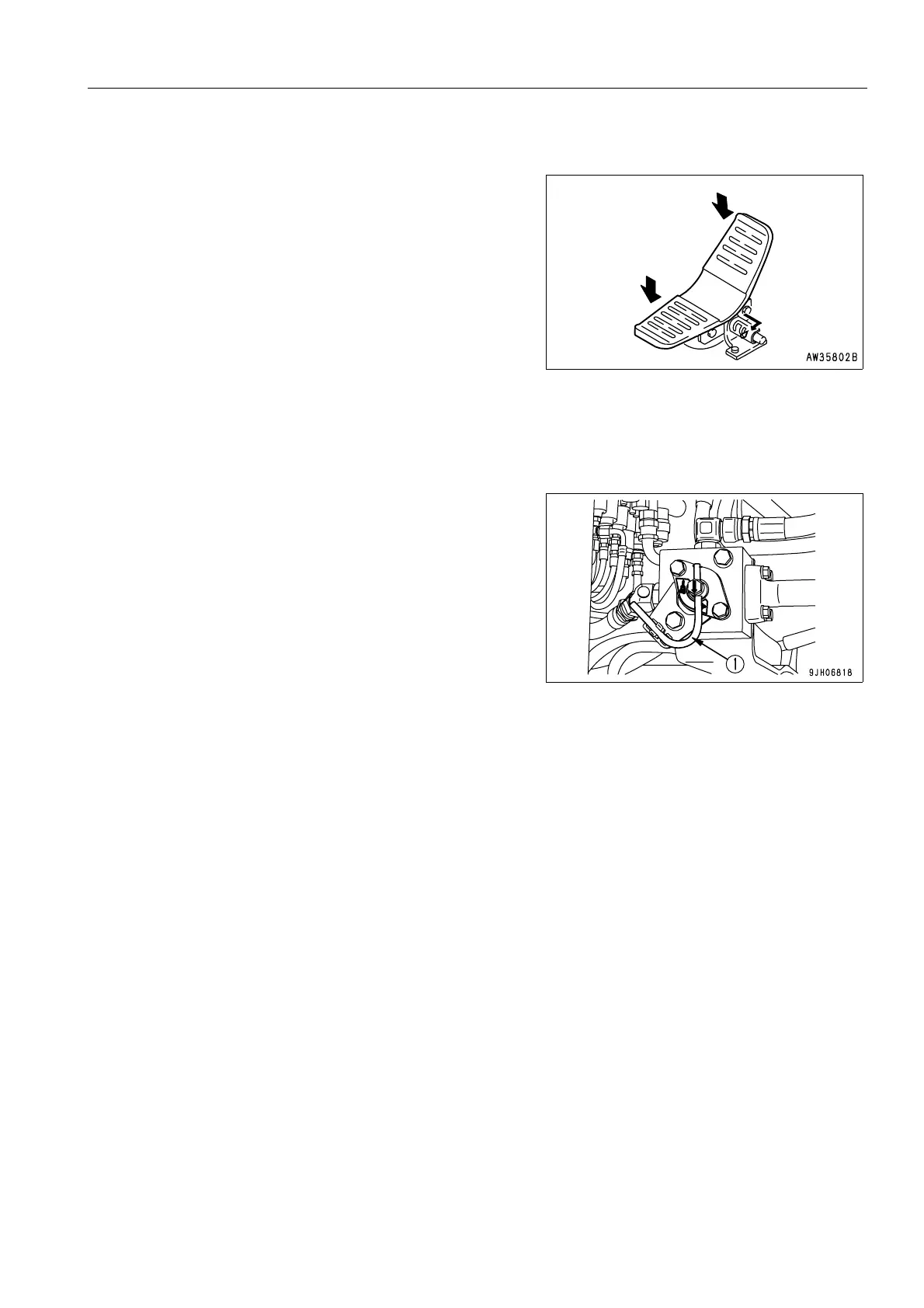

When the lock pin is set at the FREE position and the front or
rear of the pedal is depressed, the attachment is actuated.
Precautions when using
q Check that the stopper valve is in the FREE position.
q Check that the selector valve is in the position for using the general attachment such as crusher.
q Check that stopper bar (1) for the selector valve spool is
installed at the crusher (general attachment) position.
For details of the oil flow, see “HYDRAULIC CIRCUIT (6-
11)“.
q For details of other precautions when handling the breaker, read and use correctly the instruction manual pro-
vided by the breaker manufacturer.
