OPERATION DETAILED CONTROLS AND GAUGES
3-17
SWITCHES 3
Starting Switch
This switch (1) is used to start or stop the engine.
(A): OFF position
The key can be inserted or withdrawn. The switches for the
electric system except the room lamp, are all turned off and the
engine is stopped.
(B): ON position
Electric current flows in the charging and lamp circuits. Keep
the starting switch key at the ON position while the engine is
running.
(C): START position
This is the engine-start position. Keep the key at this position
during cranking. Immediately after starting the engine, release
the key. It will automatically return to the ON position (B).

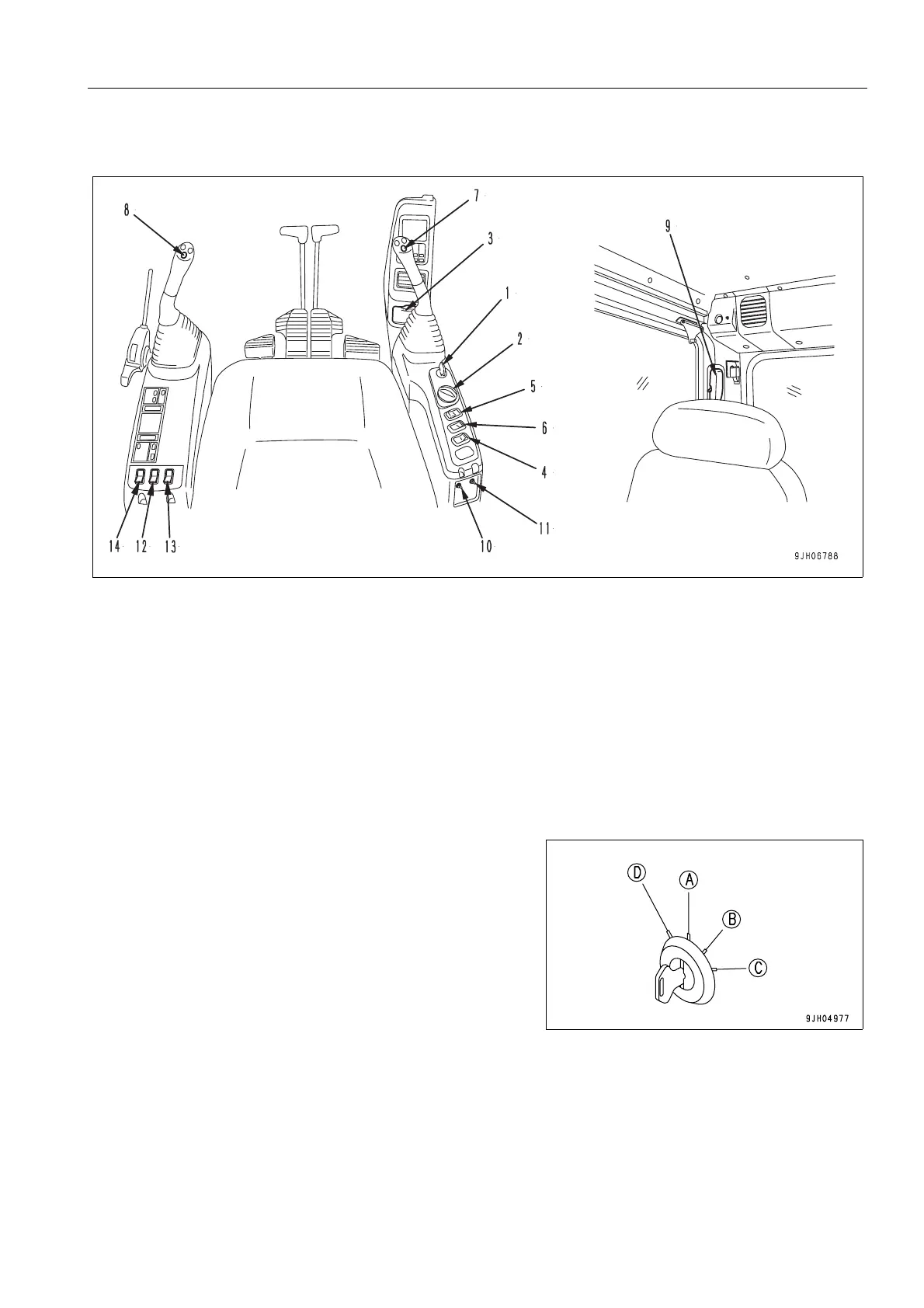

(1) Starting switch (8) Knob switch
(2) Fuel control dial (9) Room lamp switch
(3) Cigarette lighter (10) Pump drive Emergency switch
(4) Swing lock switch (11) Swing holding brake release switch
(5) Lamp switch (12) Rotating lamp switch (if equipped)
(6) Alarm buzzer stop switch (13) Heated operator seat switch (if equipped)
(7) Horn switch (14) Lower wiper switch (if equipped)
