MACHINE OPERATIONS AND CONTROLS OPERATION
3-64
Adjustment 3
Seat Adjustment
WARNING
When adjusting the position of the operator's seat, always set the safety lock lever to the LOCK position to
prevent any accidental contact with the control levers.
q Always adjust the operator's seat before starting each operation or when the operators change shift.
q Adjust the seat so that the control levers and switchis can be operated freely and easily with the operator back
against the backrest.

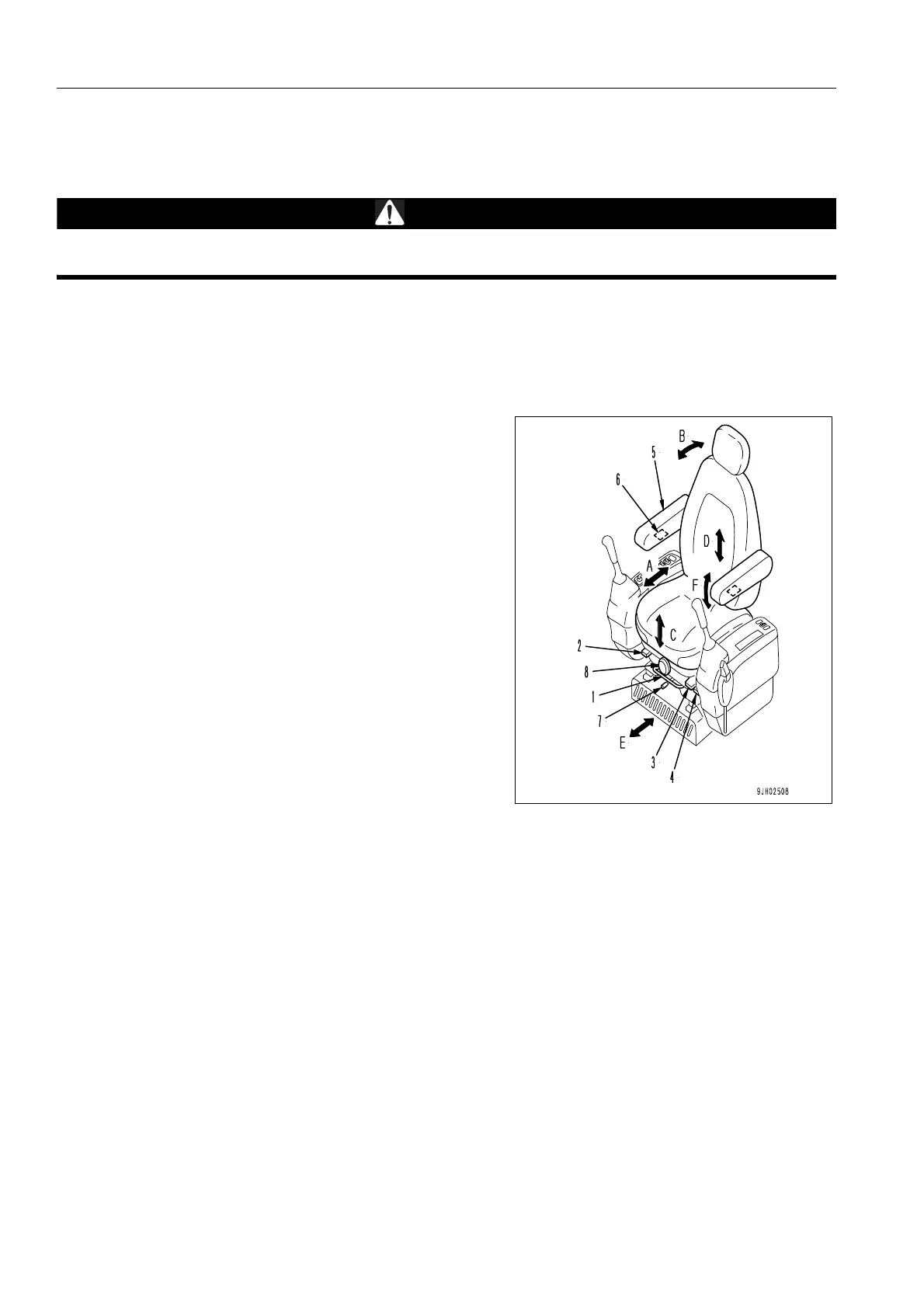

(A) Fore-and-aft adjustment
Pull lever (1) up, set the seat to the desired position, then
release the lever.
Fore-and-aft adjustment: 160 mm (16 stages)
(B) Adjusting reclining
NOTICE
The seat can be reclined to a large angle when the seat is
pushed fully forward, but the reclining angle is reduced
when the seat is moved back, so when moving the seat to
the rear, return the seat back to its original position.
Pull up lever (2) and set the seat back to a position which is
comfortable for operation, then release the lever.
Sit with your back against the seat back when adjusting. If your
back is not touching the seat back, the seat back may suddenly
move forward.
(C) Adjusting seat tilt
q Forward tilt
Push lever (3) up to adjust the angle of the front of the seat. (4 stages)
q To raise the angle at the front of the seat, keep the lever pushed up and apply your weight to the rear of the
seat.
q To lower the angle at the front of the seat, keep the lever pushed up and apply your weight to the front of the
seat.
q Rear tilt
To Next Page
