OPERATION MACHINE VIEW ILLUSTRATIONS
3-3

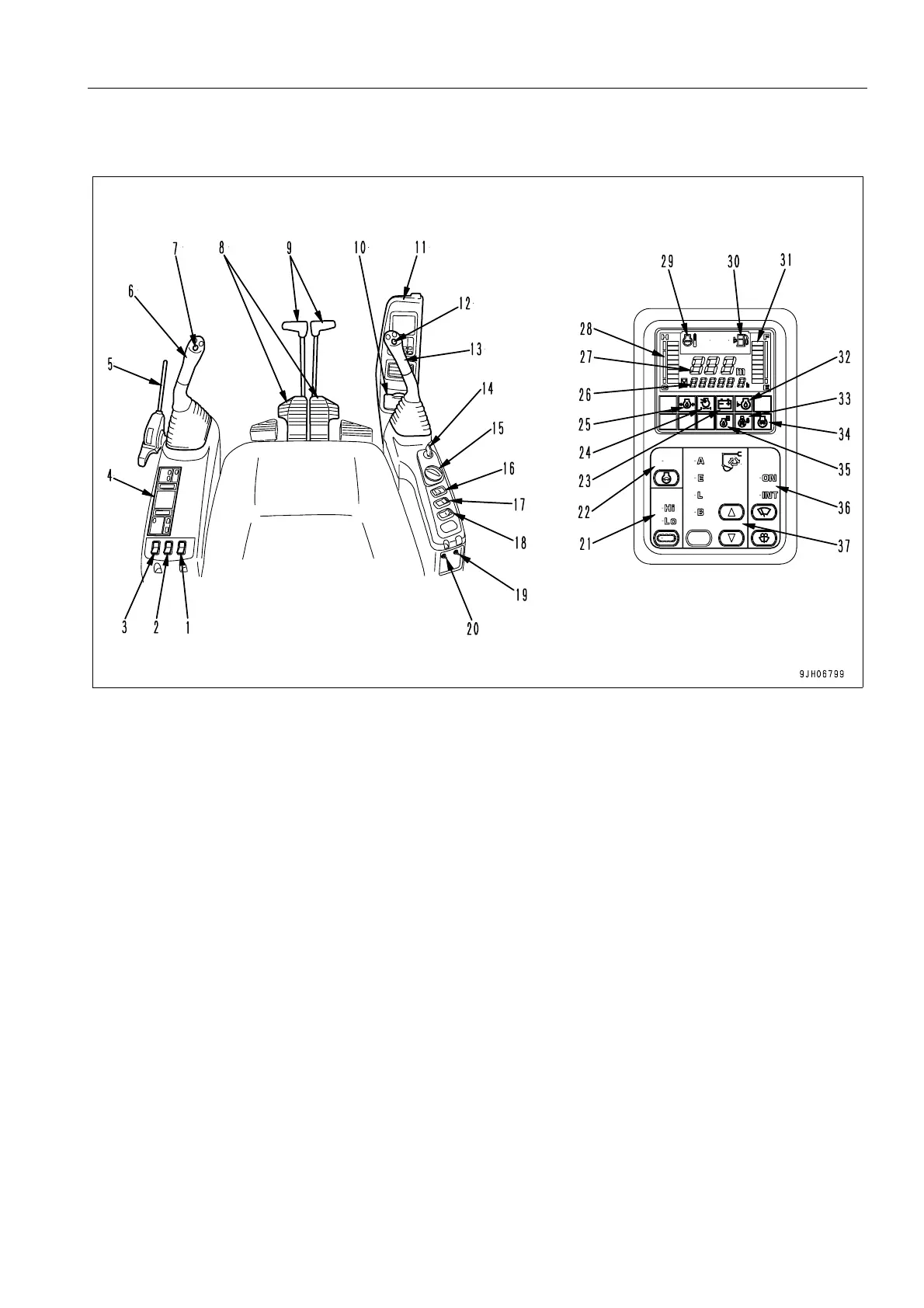

CONTROLS AND GAUGES 3
(1) Heated operator seat switch (if equipped) (20) Pump drive Emergency switch
(2) Rotating lamp switch (if equipped) (21) Travel speed selector switch
(3) Lower wiper switch (if equipped) (22) Auto-deceleration switch
(4) Air conditioner control switch (23) Charge level monitor
(5) Safety lock lever (24) Air cleaner clogging monitor
(6) Left work equipment control lever (25) Engine oil pressure monitor
(7) Knob switch (26) Service meter
(8) Travel pedals (27) Display (for failure display)
(9) Travel levers (28) Engine coolant temperature gauge
(10) Cigarette lighter (29) Engine coolant temperature monitor
(11) Machine monitor (30) Fuel level monitor
(12) Horn switch (31) Fuel gauge
(13) Right work equipment control lever (32) Engine oil temperature monitor
(14) Starting switch (33) Swing lock monitor
(15) Fuel control dial (34) Engine pre-heating monitor
(16) Lamp switch (35) Engine oil change monitor
(17) Alarm buzzer stop switch (36) Wiper switch
(18) Swing lock switch (37) Working mode selector switch
(19) Swing holding brake release switch
