MACHINE READY FOR ATTACHMENT 6
LOCATIONS 6
Stop Valve 6
This valve (1) stops the flow of the hydraulic oil.
(a) FREE : Hydraulic oil flows.
(b) LOCK : Hydraulic oil stops.
When removing or installing attachments, set this valve to the
LOCK position.
Always remove this lever and keep it in storage unless it is
being used for switching the oil flow.

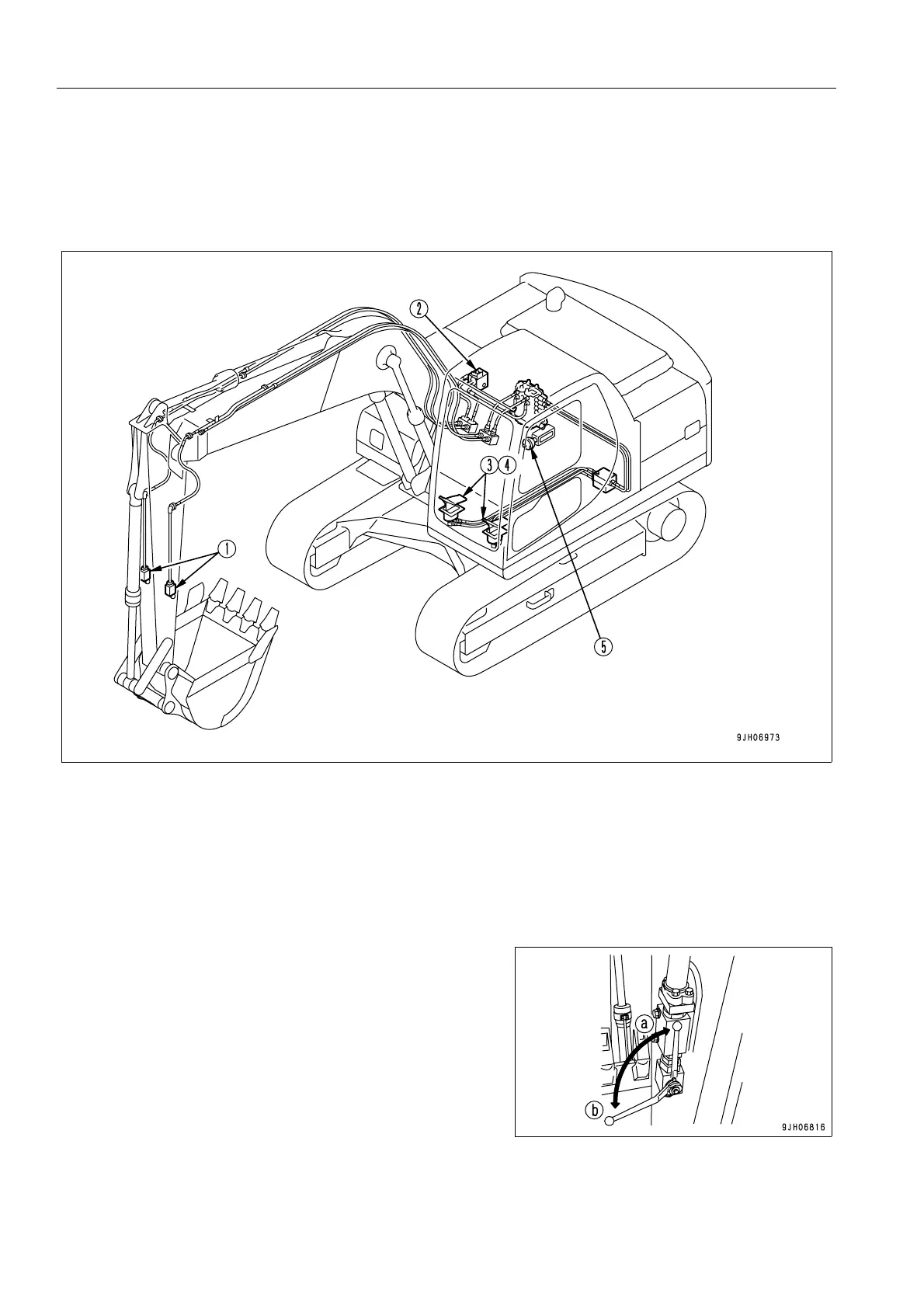

(1) Stop valve (4) Lock pin
(2) Selector valve (5) Accumulator (for control circuit)
(3) Attachment control valve
