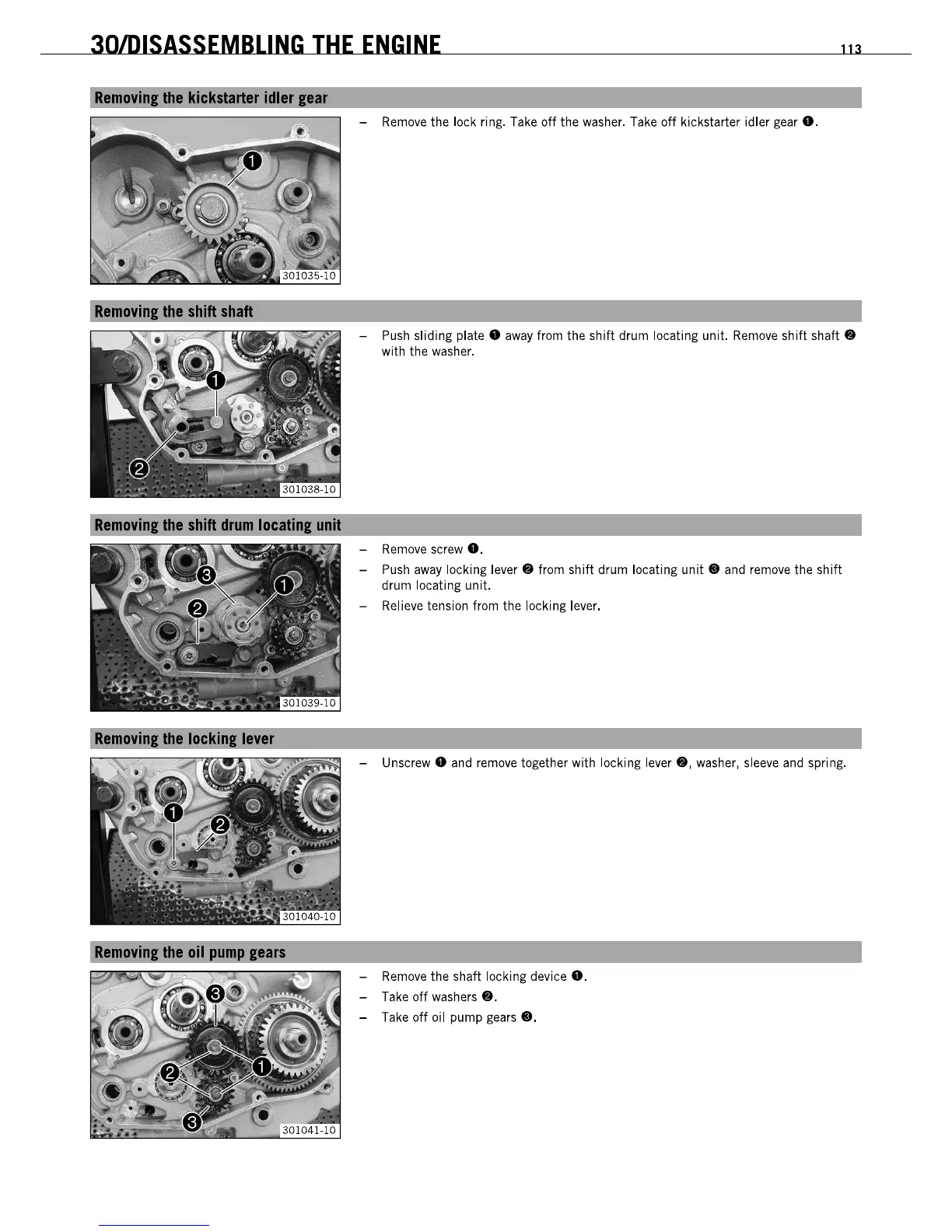

301DISASSEMBLING THE ENGINE 113
- Remove the lock ring. Take off the washer. Take off kickstarter idler gear •.
- Push sliding plate 0 away from the shift drum locating unit. Remove shift shaft •
with the washer.
-
Remove screw •.
- Push away locking lever. from shift drum locating unit. and remove the shift
drum locating unit.
- Relieve tension from the locking lever.
-
Unscrew. and remove together with locking lever ., washer, sleeve and spring.
-
Remove the shaft locking device •.
- Take off washers •.
- Take off oil pump gears •.
