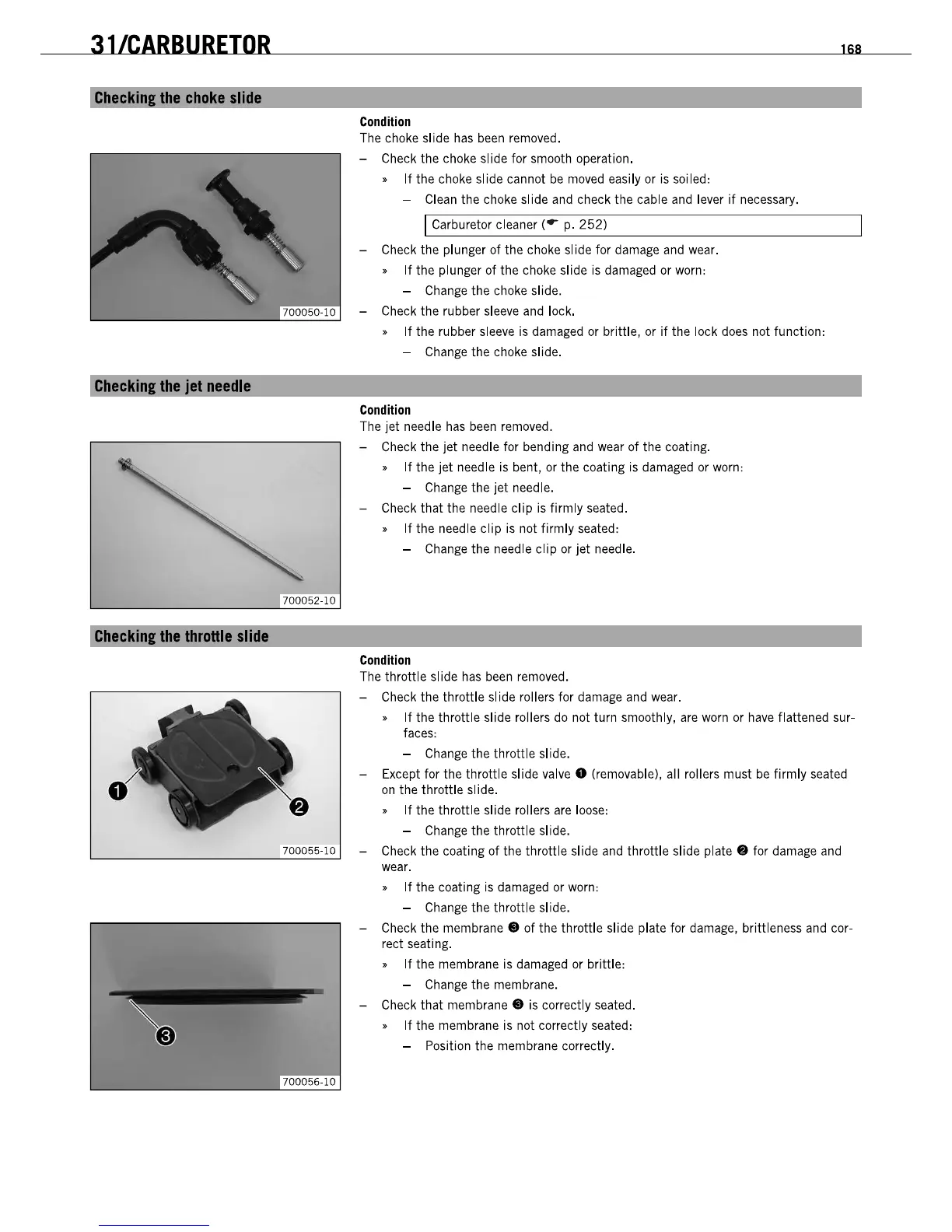

31/CARBURETOR
Cbeckinllhe cboke slide
Cbeckinllhe jet needle
700052-10
Cblckinllhl thrallil slidl
Condition
The choke slide has been removed.
- Check the choke slide for smooth operation.
> If the choke slide cannot be moved easily or is soiled:
- Clean the choke slide and check the cable and lever if necessary.
I Carburetor cleaner ( ~ p. 252)
- Check the plunger of the choke slide for damage and wear.
> If the plunger of the choke slide is damaged or worn:
- Change the choke slide.
- Check the rubber sleeve
and lock.
> If the rubber sleeve is damaged or brittle, or if the lock does not function:
- Change the choke slide.
Condition
The jet needle has been removed.
- Check the jet needle for bending and wear of the coating.
> If the jet needle is bent, or the coating is damaged or worn:
- Change the
jet needle.
- Check that the needle
clip is firmly seated.
> If the needle clip is not firmly seated:
- Change the needle
clip or jet needle.
Condition
The throttle slide has been removed.
- Check the throttle slide rollers for damage and
wear.
168
> If the throttle slide rollers do not turn smoothly, are worn or have flattened sur-
faces:
- Change the throttle slide.
- Except for the throttle slide valve 0 (removable), all rollers must
be firmly seated
on the throttle slide.
> If the throttle slide rollers are loose:
- Change the throttle slide.
'- __________ --'-70:..;00=55-:....:.;10"" - Check the coating of the throttle slide and throttle slide plate. for damage and
70005&-10
wear.
> If the coating is damaged or worn:
- Change the throttle slide.
- Check the
membrane. of the throttle slide plate for damage, brittleness and cor-
rect seating.
> If the membrane is damaged or brittle:
- Change the membrane.
- Check that
membrane. is correctly seated.
> If the membrane is not correctly seated:
- Position the membrane correctly.
