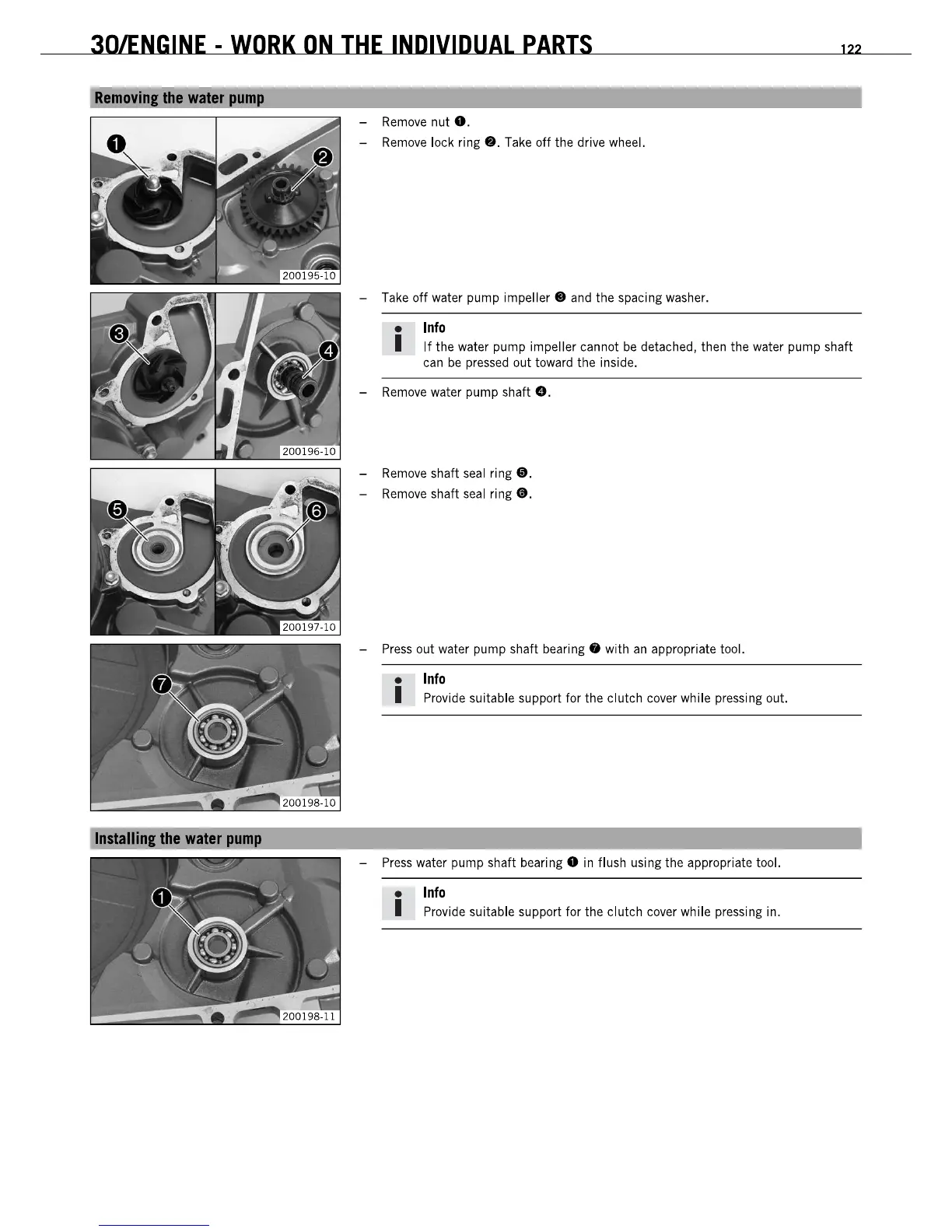

301ENGINE - WORK ON THE INDIVIDUAL PARTS 122
- Remove nut o.
- Remove lock ring e. Take off the drive wheel.
- Take off water pump impeller e and the spacing washer.
• Info
I If the water pump impeller cannot be detached, then the water pump shaft
can be pressed out toward the inside.
- Remove water pump shaft
e.
- Remove shaft seal ring e.
- Remove shaft seal ring e.
- Press out water pump shaft bearing e with an appropriate tool.
• Info
I Provide suitable support for the clutch cover while pressing out.
- Press water pump shaft bearing 0 in flush using the appropriate tool.
• Info
I Provide suitable support for the clutch cover while pressing in.
301ENGINE - WORK ON THE INDIVIDUAL PARTS 122
- Remove nut o.
- Remove lock ring e. Take off the drive wheel.
- Take off water pump impeller e and the spacing washer.
• Info
I If the water pump impeller cannot be detached, then the water pump shaft
can be pressed out toward the inside.
- Remove water pump shaft
e.
- Remove shaft seal ring e.
- Remove shaft seal ring e.
- Press out water pump shaft bearing e with an appropriate tool.
• Info
I Provide suitable support for the clutch cover while pressing out.
- Press water pump shaft bearing 0 in flush using the appropriate tool.
• Info
I Provide suitable support for the clutch cover while pressing in.
