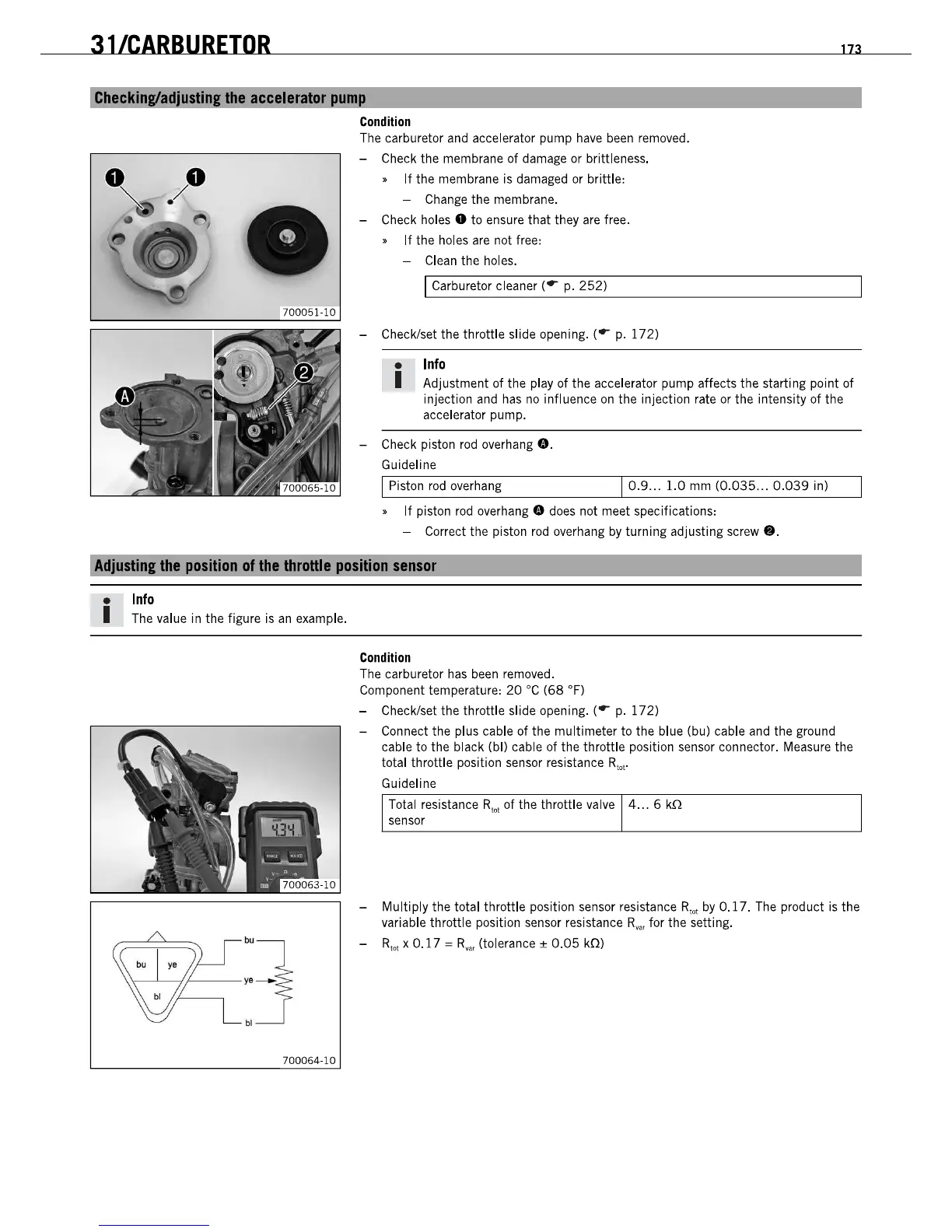

31/CARBURETOR
173
Cbeckin~adjustinllhe
accelerator
p'urnp'
Condition
The carburetor and accelerator pump
have
been
removed.
- Check the membrane of damage or brittleness.
>
If
the membrane is damaged or brittle:
- Change the membrane.
- Check
holes.
to
ensure that they
are
free.
>
If
the holes are not free:
- Clean the holes.
I Carburetor cleaner (
..
p.
252)
- Check/set the throttle slide opening. (
..
p.
172)
•
Info
I Adiustment of the play of the accelerator pump affects the starting point of
injection and has
no
influence
on
the injection rate or the intensity of the
accelerator pump.
- Check piston
rod
overhang
•.
Guideline
I Piston
rod
overhang I
0.9
...
1.0
mm
(0.035
...
0.039
in)
>
If
piston
rod
overhang.
does not meet specifications:
- Correct the piston
rod
overhang by turning adjusting screw
•.
Ad·ullinl
thl
lIosition
of
thllhrottll
osition Slnior
•
Info
I The value in the figure
is
an
example.
700064-10
Condition
The carburetor
has
been
removed.
Component temperature:
20°C
(68
OF)
- Check/set the throttle slide opening. (
..
p.
172)
- Connect the plus cable
of
the multi meter to the blue (bu) cable and the ground
cable to the black (bl) cable of the throttle position sensor connector. Measure the
total throttle position sensor resistance R
lol
•
Guideline
Total resistance
R""
of the throttle valve 4 ... 6
krl
sensor
- Multiply the total throttle position sensor resistance
R""
by
0.17.
The product
is
the
variable throttle position sensor resistance R
d
,
for the setting.
-
Riot
x
0.17
= R
d
,
(tolerance ±
0.05
kn)
