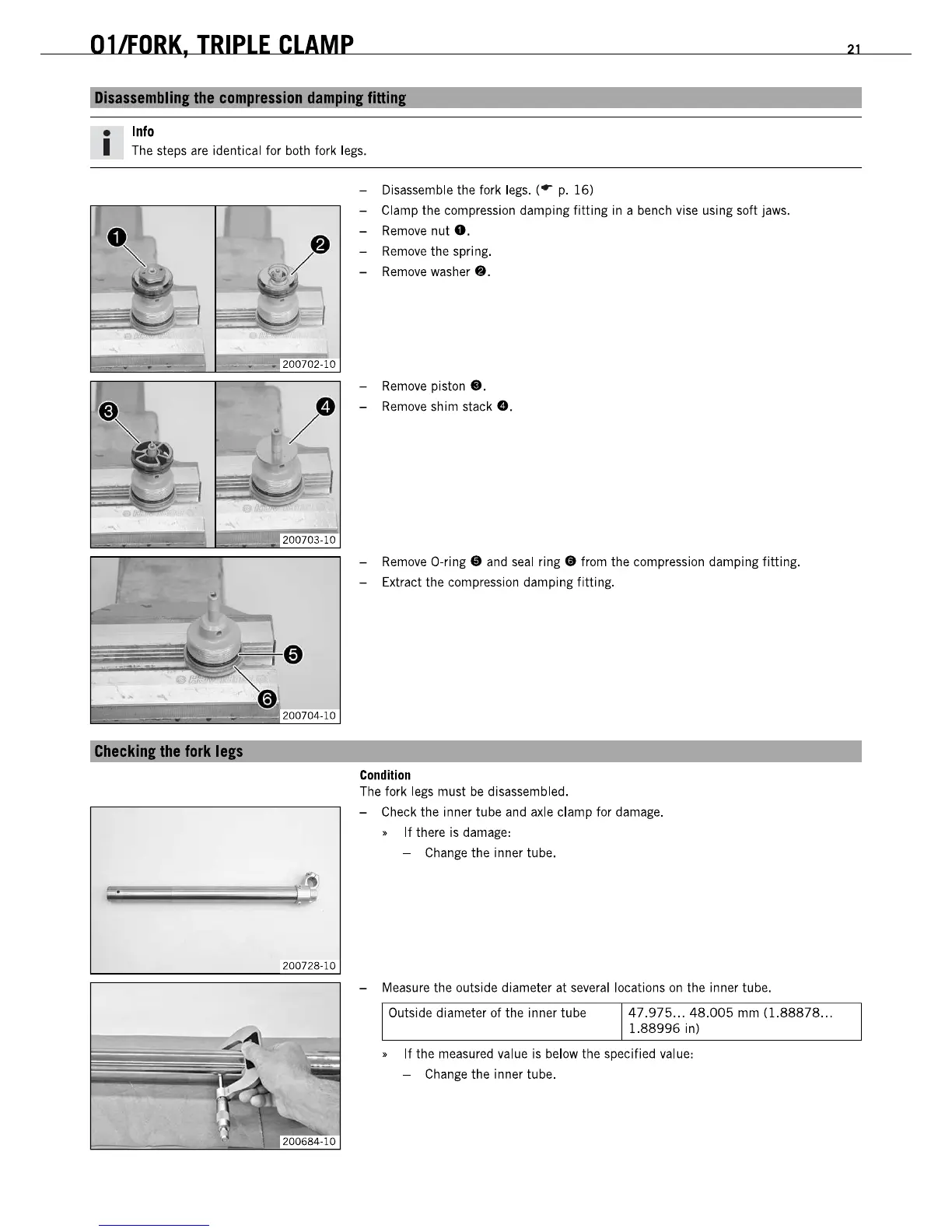

Ol/FORK, TRIPLE CLAMP
Disassemblin the compression damp'inl rminl
• Inlo
I The steps are identical for both fork legs.
- 200702-10
Checkinl the fork I~
200728-10
- Disassemble the fork legs. ( .. p. 16)
- Clamp the compression damping fitting in a bench vise using soft jaws.
- Remove nut
O.
- Remove the spri ng.
- Remove washer ••
- Remove piston •.
- Remove shim stack •.
- Remove O-ring. and seal ring. from the compression damping fitting.
- Extract the compression damping fitting.
Condition
The fork legs must be disassembled.
- Check the inner tube and axle clamp for damage.
•
If there is damage:
- Change the inner tube.
- Measure the outside diameter at several locations on the inner tube.
Outside diameter of the inner tube
47.975 ... 48.005 mm (1.88878 ...
1.88996 in)
•
If the measured value is below the specified value:
- Change the inner tube.
21 Ol/FORK, TRIPLE CLAMP
Disassemblin the compression damp'inl rminl
• Inlo
I The steps are identical for both fork legs.
- 200702-10
Checkinl the fork I~
200728-10
- Disassemble the fork legs. ( .. p. 16)
- Clamp the compression damping fitting in a bench vise using soft jaws.
- Remove nut
O.
- Remove the spri ng.
- Remove washer ••
- Remove piston •.
- Remove shim stack •.
- Remove O-ring. and seal ring. from the compression damping fitting.
- Extract the compression damping fitting.
Condition
The fork legs must be disassembled.
- Check the inner tube and axle clamp for damage.
•
If there is damage:
- Change the inner tube.
- Measure the outside diameter at several locations on the inner tube.
Outside diameter of the inner tube
47.975 ... 48.005 mm (1.88878 ...
1.88996 in)
•
If the measured value is below the specified value:
- Change the inner tube.
21
