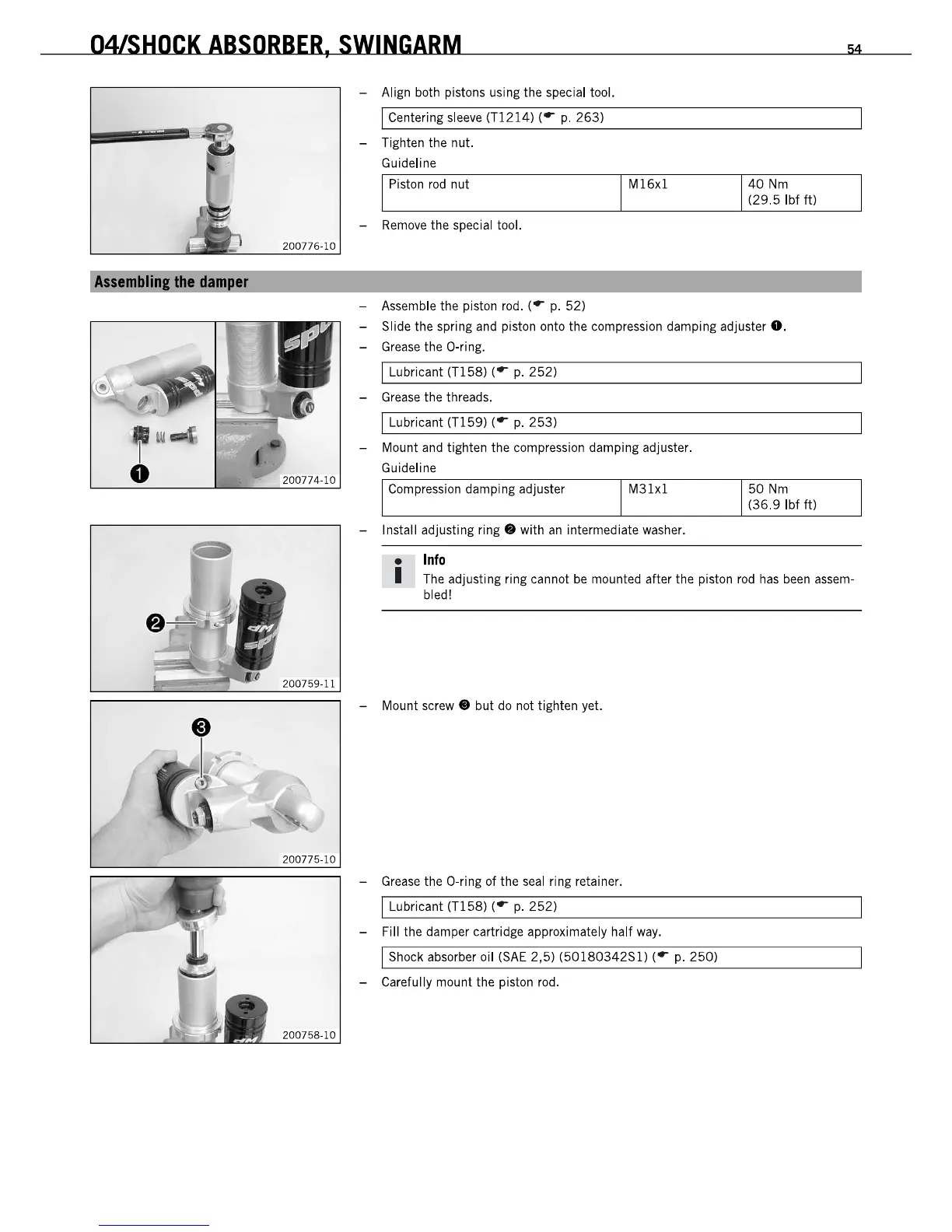

04LSHOCK ABSORBER, SWINGARM 54
20077&-10
Assemblinll tile damper
200775-10
200751HO
- Align both pistons using the special tool.
I Centering sleeve (Tl214) ( -- p. 263)
- Tighten the nut.
Guideline
I Piston rod nut
-
Remove the special tool.
- Assemble the piston rod. (
-- p. 52)
I M16xl
140 Nm
~29.5 Ibf tt)
- Slide the spring and piston onto the compression damping adjuster •.
- Grease the O-ring.
I Lubricant (Tl58) ( -- p. 252)
- Grease the threads.
I Lubricant (Tl59) ( -- p. 253)
- Mount and tighten the compression damping adjuster.
Guideline
Compression damping adjuster
M31xl
- Install adjusting ring. with an intermediate washer.
• Info
50 Nm
(36.9 Ibf tt)
I The adjusting ring cannot be mounted after the piston rod has been assem-
bled!
- Mount
screw. but do not tighten yet.
-
Grease the O-ring of the seal ring retainer.
I Lubricant (Tl58) ( -- p. 252)
- Fill the damper cartridge approximately half way.
I Shock absorber oil (SAE 2,5) (50180342S1) ( -- p. 250)
- Carefully mount the piston rod.
04LSHOCK ABSORBER, SWINGARM 54
20077&-10
Assemblinll tile damper
200775-10
200751HO
- Align both pistons using the special tool.
I Centering sleeve (Tl214) ( -- p. 263)
- Tighten the nut.
Guideline
I Piston rod nut
-
Remove the special tool.
- Assemble the piston rod. (
-- p. 52)
I M16xl
140 Nm
~29.5 Ibf tt)
- Slide the spring and piston onto the compression damping adjuster •.
- Grease the O-ring.
I Lubricant (Tl58) ( -- p. 252)
- Grease the threads.
I Lubricant (Tl59) ( -- p. 253)
- Mount and tighten the compression damping adjuster.
Guideline
Compression damping adjuster
M31xl
- Install adjusting ring. with an intermediate washer.
• Info
50 Nm
(36.9 Ibf tt)
I The adjusting ring cannot be mounted after the piston rod has been assem-
bled!
- Mount
screw. but do not tighten yet.
-
Grease the O-ring of the seal ring retainer.
I Lubricant (Tl58) ( -- p. 252)
- Fill the damper cartridge approximately half way.
I Shock absorber oil (SAE 2,5) (50180342S1) ( -- p. 250)
- Carefully mount the piston rod.
