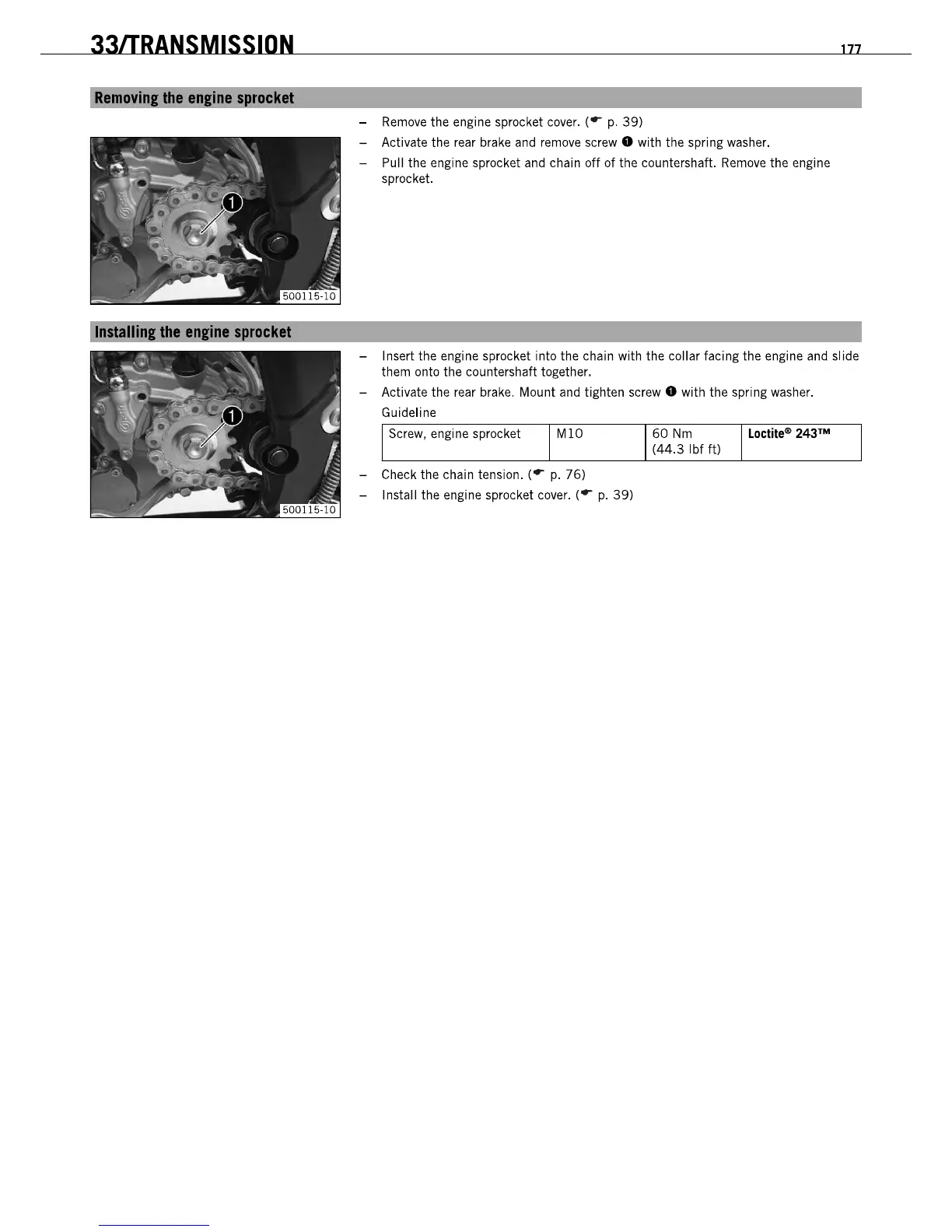

331TRANSMISSION
RemDYinlllle enline ~ rDcket
177
- Remove the engine sprocket cover. (r p. 39)
-
Activate the rear brake and remove screw 0 with the spring washer.
- Pull the engine sprocket and chain off of the countershaft. Remove the engine
sprocket.
- Insert the engine sprocket into the chain with the collar facing the engine and slide
them onto the countershaft together.
- Activate the rear brake. Mount and tighten screw 0 with the spring washer.
Guideline
Screw, engine sprocket MlO
- Check the chain tension. (r p. 76)
- Install
the engine sprocket cover. (r p. 39)
60 Nm
(44.3 Ibf It)
Lactile- 243
1M
