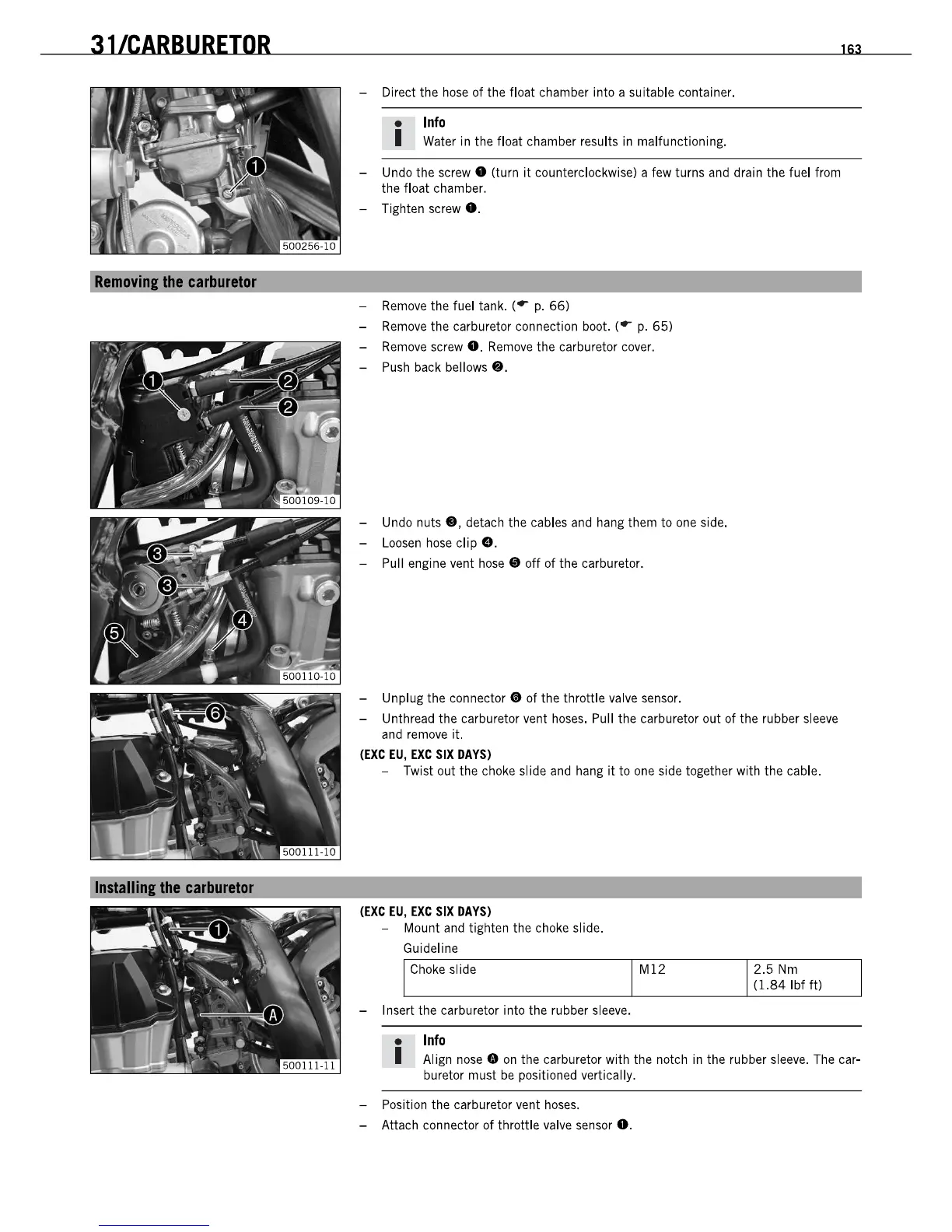

31/CARBURETOR
RemDYinl tile carburetDr
- Direct the hose of the float chamber into a suitable container.
• Info
I Water in the float chamber results in malfunctioning.
-
Undo the screw e (turn it counterclockwise) a few turns and drain the fuel from
the float chamber.
- Tighten screw e.
- Remove the fuel tank. ( -- p. 66)
-
Remove the carburetor connection boot. ( -- p. 65)
-
Remove screw e. Remove the carburetor cover.
- Push back bellows •.
- Undo nuts e, detach the cables and hang them to one side.
- Loosen hose clip •.
- Pull engine vent hose e off of the carburetor.
- Unplug the connector e of the throttle valve sensor.
- Unthread the carburetor vent hoses. Pull the carburetor out of the rubber sleeve
and remove it.
(EXC EU, EXC SIX DAYS)
- Twist out the choke slide and hang it to one side together with the cable.
(EXC EU, EXC SIX DAYS)
- Mount and tighten the choke slide.
Guideline
I Choke sl ide
- Insert the carburetor into the rubber sleeve.
• Info
12.5 Nm
(1.84 Ibf ftl
163
I Align nose. on the carburetor with the notch in the rubber sleeve. The car-
buretor must be positioned vertically.
-
Position the carburetor vent hoses.
- Attach connector of throttle valve sensor O.
31/CARBURETOR
RemDYinl tile carburetDr
- Direct the hose of the float chamber into a suitable container.
• Info
I Water in the float chamber results in malfunctioning.
-
Undo the screw e (turn it counterclockwise) a few turns and drain the fuel from
the float chamber.
- Tighten screw e.
- Remove the fuel tank. ( -- p. 66)
-
Remove the carburetor connection boot. ( -- p. 65)
-
Remove screw e. Remove the carburetor cover.
- Push back bellows •.
- Undo nuts e, detach the cables and hang them to one side.
- Loosen hose clip •.
- Pull engine vent hose e off of the carburetor.
- Unplug the connector e of the throttle valve sensor.
- Unthread the carburetor vent hoses. Pull the carburetor out of the rubber sleeve
and remove it.
(EXC EU, EXC SIX DAYS)
- Twist out the choke slide and hang it to one side together with the cable.
(EXC EU, EXC SIX DAYS)
- Mount and tighten the choke slide.
Guideline
I Choke sl ide
- Insert the carburetor into the rubber sleeve.
• Info
12.5 Nm
(1.84 Ibf ftl
163
I Align nose. on the carburetor with the notch in the rubber sleeve. The car-
buretor must be positioned vertically.
-
Position the carburetor vent hoses.
- Attach connector of throttle valve sensor O.
