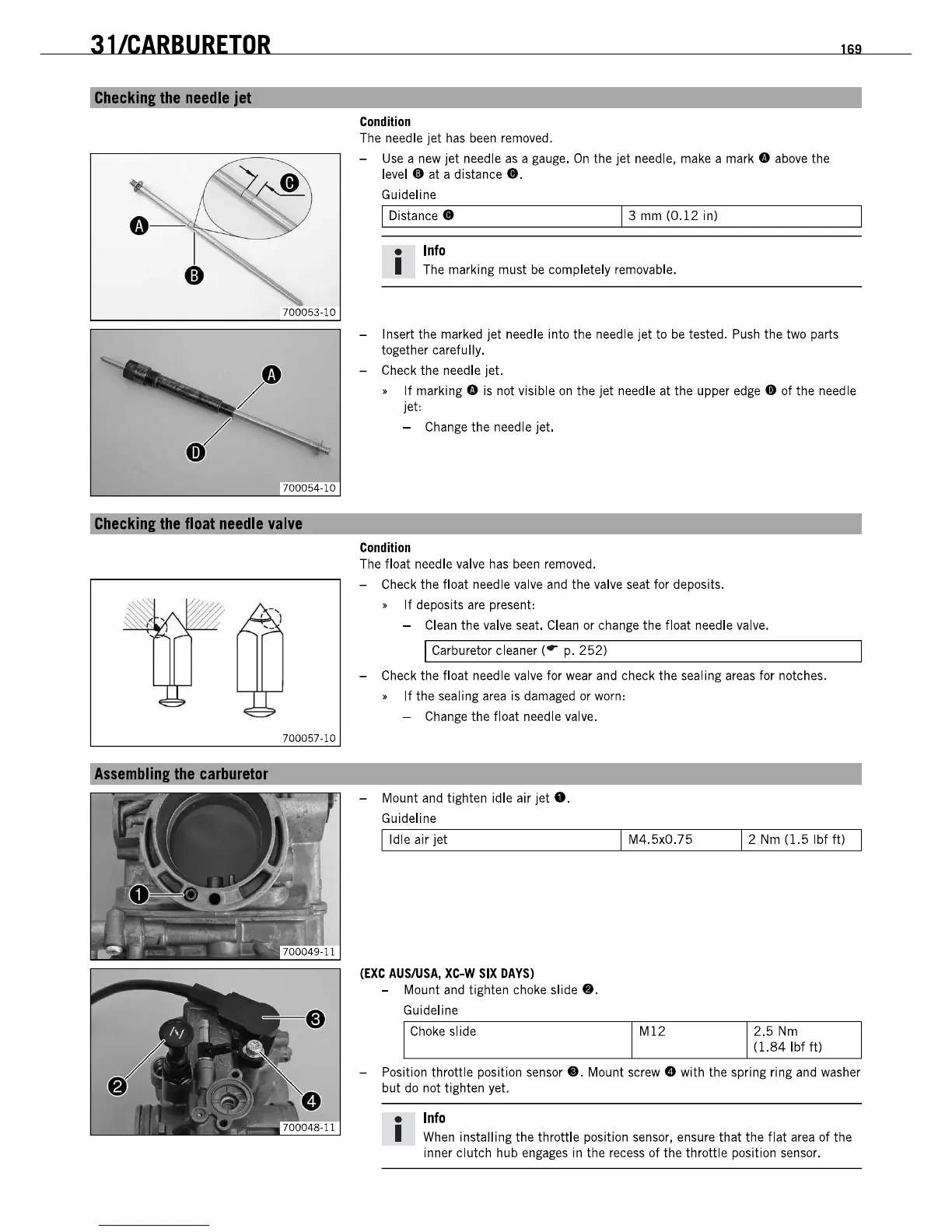

31/CARBURETOR
Cbeckinllhe needle jet
0 -
[
o
700053-10
700054-10
Cbeckinllhe float needle valve
700057-10
Condition
The needle jet has been removed.
-
Use a new jet needle as a gauge. On the jet needle, make a mark. above the
level • at a distance
•.
Guideline
I Distance.
13 mm (0.12 in)
• Info
I The marking must be completely removable.
- Insert the marked
jet needle into the needle jet to be tested. Push the two parts
together carefully.
- Check the needle jet.
169
> If marking. is not visible on the jet needle at the upper edge. of the needle
jet:
- Change the needle jet.
Condition
The float needle valve has been removed.
- Check the float needle valve and the valve seat for deposits.
> If deposits are present:
- Clean the valve seat.
Clean or change the float needle valve.
I Carburetor cleaner ( or p. 252)
- Check the float needle valve for wear and check the sealing areas for notches.
> If the sealing area is damaged or worn:
- Change the float needle valve.
- Mount and tighten idle air jet
O.
Guideline
I Idle air jet
(EXC AUSlUSA, XC-W SIX DAYS)
- Mount and tighten choke slide •.
Guideline
I Choke sl ide
I M4.5xO.75
I M12
12 Nm (1.5 Ibf tt)
[2.5 Nm
(1.84 Ibf It)
- Position throttle position sensor •. Mount screw. with the spring ring and washer
but do not tighten yet.
• Info
I When installing the throttle position sensor, ensure that the flat area of the
inner clutch hub engages in the
recess of the throttle position sensor.
