KTM 400 EXC AUS 2011 User Manual

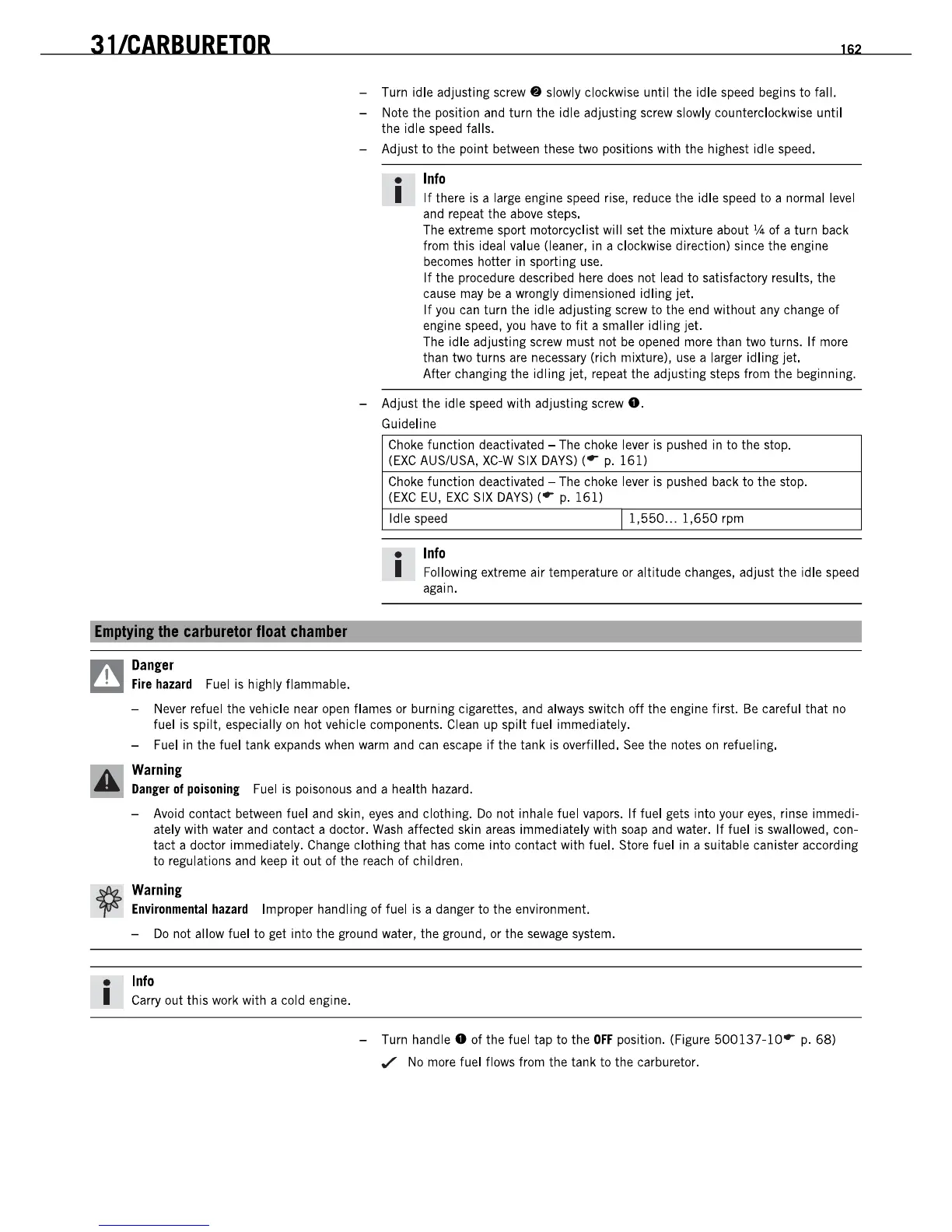

31/cARBURETOR
EmplJ!nllhe cartluretar nalt cumber
... Danger
W Fire hazard Fuel is highly flammable.
162
- Turn idle adjusting screw. slowly clockwise until the idle speed begins to fall.
-
Note the position and turn the idle adjusting screw slowly counterclockwise until
the idle
speed falls.
- Adjust to the point
between these two positions with the highest idle speed.
• Info
I If there is a large engine speed rise, reduce the idle speed to a normal level
and repeat the above steps.
The extreme sport motorcyclist will set the mixture about 1M of a turn back
from this ideal value (leaner, in a clockwise direction) since the engine
becomes hotter in sporting use.
If the procedure described here does not lead to satisfactory results, the
cause may be a wrongly dimensioned idling jet.
If
you can turn the idle adjusting screw to the end without any change of
engine speed, you have to fit a smaller idling jet.
The idle adjusting screw must not be opened more than two turns. If more
than two turns are necessary (rich mixture), use a larger idling jet.
After changing the idling jet, repeat the adjusting steps from the beginning.
- Adjust the idle speed with adjusting screw •.
Guideline
Choke fu nction deactivated - The choke lever is pushed into the stop.
(EXC AUS/USA, XC-W SIX DAYS) ( .. p. 161)
Choke fu nction deactivated - The choke lever is pushed back to the stop.
(EXC EU, EXC SIX DAYS) ( .. p. 161)
Idle
speed
I 1,550 ... 1,650 rpm
• Info
I Following extreme air temperature or altitude changes, adjust the idle speed
again.
- Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
- Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger a' poisoning Fuel is poisonous and a health hazard.
- Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Warning
Enviranmental hazard Improper handling of fuel is a danger to the environment.
- Do not allow fuel to get into the ground water, the ground, or the sewage system.
• Info
I Carry out th is work with a cold engi ne.
- Turn handle. of the fuel tap to the OFF poSition. (Figure 500137-10" p. 68)
./ No more fuel flows from the tank to the carburetor.
31/cARBURETOR
EmplJ!nllhe cartluretar nalt cumber
... Danger
W Fire hazard Fuel is highly flammable.
162
- Turn idle adjusting screw. slowly clockwise until the idle speed begins to fall.
-
Note the position and turn the idle adjusting screw slowly counterclockwise until
the idle
speed falls.
- Adjust to the point
between these two positions with the highest idle speed.
• Info
I If there is a large engine speed rise, reduce the idle speed to a normal level
and repeat the above steps.
The extreme sport motorcyclist will set the mixture about 1M of a turn back
from this ideal value (leaner, in a clockwise direction) since the engine
becomes hotter in sporting use.
If the procedure described here does not lead to satisfactory results, the
cause may be a wrongly dimensioned idling jet.
If
you can turn the idle adjusting screw to the end without any change of
engine speed, you have to fit a smaller idling jet.
The idle adjusting screw must not be opened more than two turns. If more
than two turns are necessary (rich mixture), use a larger idling jet.
After changing the idling jet, repeat the adjusting steps from the beginning.
- Adjust the idle speed with adjusting screw •.
Guideline
Choke fu nction deactivated - The choke lever is pushed into the stop.
(EXC AUS/USA, XC-W SIX DAYS) ( .. p. 161)
Choke fu nction deactivated - The choke lever is pushed back to the stop.
(EXC EU, EXC SIX DAYS) ( .. p. 161)
Idle
speed
I 1,550 ... 1,650 rpm
• Info
I Following extreme air temperature or altitude changes, adjust the idle speed
again.
- Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
- Fuel in the fuel tank expands when warm and can escape if the tank is overfilled. See the notes on refueling.
Warning
Danger a' poisoning Fuel is poisonous and a health hazard.
- Avoid contact between fuel and skin, eyes and clothing. Do not inhale fuel vapors. If fuel gets into your eyes, rinse immedi-
ately with water and contact a doctor. Wash affected skin areas immediately with soap and water. If fuel is swallowed, con-
tact a doctor immediately. Change clothing that has come into contact with fuel. Store fuel in a suitable canister according
to regulations and keep it out of the reach of children.
Warning
Enviranmental hazard Improper handling of fuel is a danger to the environment.
- Do not allow fuel to get into the ground water, the ground, or the sewage system.
• Info
I Carry out th is work with a cold engi ne.
- Turn handle. of the fuel tap to the OFF poSition. (Figure 500137-10" p. 68)
./ No more fuel flows from the tank to the carburetor.
