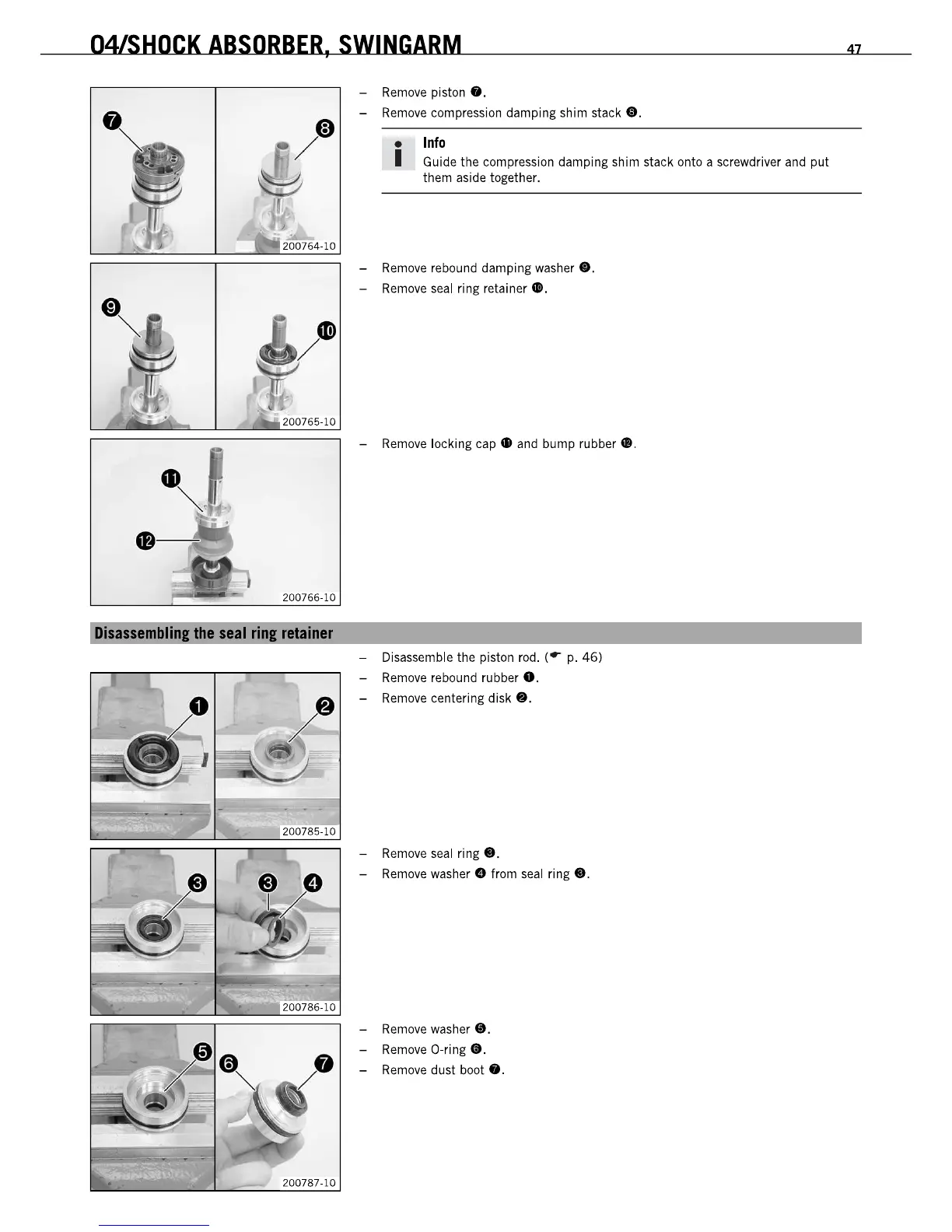

04LSHOCK ABSORBER, SWINGARM
20076&-10
Disassemblina: the seal rinK retainer
20078&-10
- Remove piston e.
- Remove compression damping shim stack e.
• Info
I Guide the compression damping shim stack onto a screwdriver and put
them aside together.
-
Remove rebound damping washer e.
- Remove seal ring retainer e.
- Remove locking cap. and bump rubber e.
- Disassemble the piston rod. (r p. 46)
-
Remove rebound rubber O.
- Remove centering disk e.
- Remove seal ri ng e.
- Remove washer e from seal ring e.
- Remove washer e.
- Remove O-ri ng e.
- Remove dust boot e.
