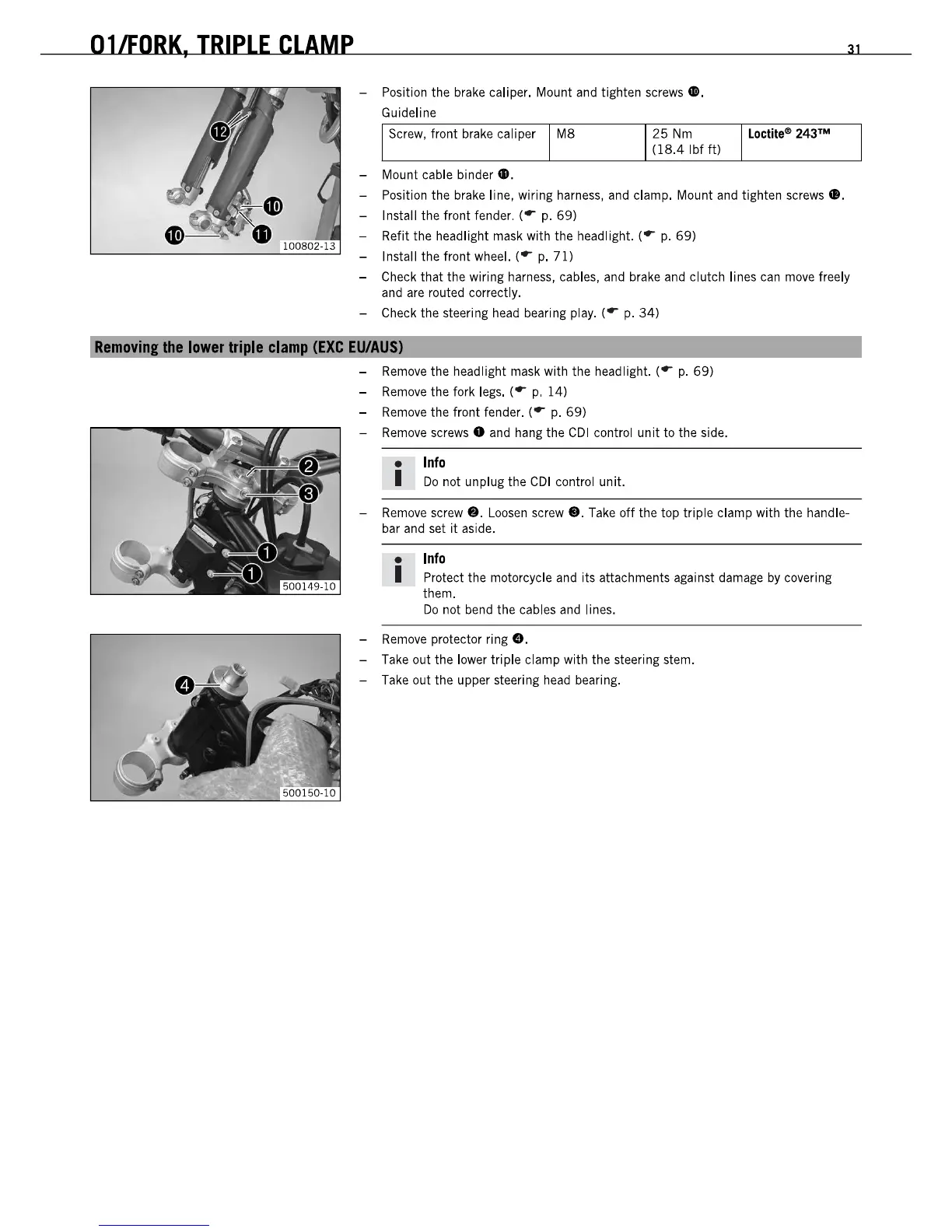

Ol/FORK, TRIPLE CLAMP
- Position the brake caliper. Mount and tighten screws •.
Guideline
Screw, front brake caliper M8
- Mount cable binder
e.
25 Nm
(18.4 Ibf It)
Loctile- 243'"
- Position the brake line, wiring harness, and clamp. Mount and tighten screws e.
- Install the front fender. ( -- p. 69)
- Refit the headlight mask with the headlight. (
-- p. 69)
- Install the front wheel. ( -- p. 71)
31
- Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
- Check the steering
head bearing play. ( -- p. 34)
Ramovlnillha lowar triple clamp (EXC EUlAUSl
- Remove the headlight mask with the headlight. ( -- p. 69)
- Remove the fork legs. ( -- p. 14)
- Remove the front fender. ( -- p. 69)
-
Remove screws e and hang the COl control unit to the side.
• Info
I Do not unplug the COl control unit.
-
Remove screw e. Loosen screw e. Take off the top triple clamp with the handle-
bar and set it aside.
• Info
I Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
-
Remove protector ring e.
- Take out the lower triple clamp with the steering stem.
- Take out the upper steering
head bearing.
Ol/FORK, TRIPLE CLAMP
- Position the brake caliper. Mount and tighten screws •.
Guideline
Screw, front brake caliper M8
- Mount cable binder
e.
25 Nm
(18.4 Ibf It)
Loctile- 243'"
- Position the brake line, wiring harness, and clamp. Mount and tighten screws e.
- Install the front fender. ( -- p. 69)
- Refit the headlight mask with the headlight. (
-- p. 69)
- Install the front wheel. ( -- p. 71)
31
- Check that the wiring harness, cables, and brake and clutch lines can move freely
and are routed correctly.
- Check the steering
head bearing play. ( -- p. 34)
Ramovlnillha lowar triple clamp (EXC EUlAUSl
- Remove the headlight mask with the headlight. ( -- p. 69)
- Remove the fork legs. ( -- p. 14)
- Remove the front fender. ( -- p. 69)
-
Remove screws e and hang the COl control unit to the side.
• Info
I Do not unplug the COl control unit.
-
Remove screw e. Loosen screw e. Take off the top triple clamp with the handle-
bar and set it aside.
• Info
I Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
-
Remove protector ring e.
- Take out the lower triple clamp with the steering stem.
- Take out the upper steering
head bearing.
