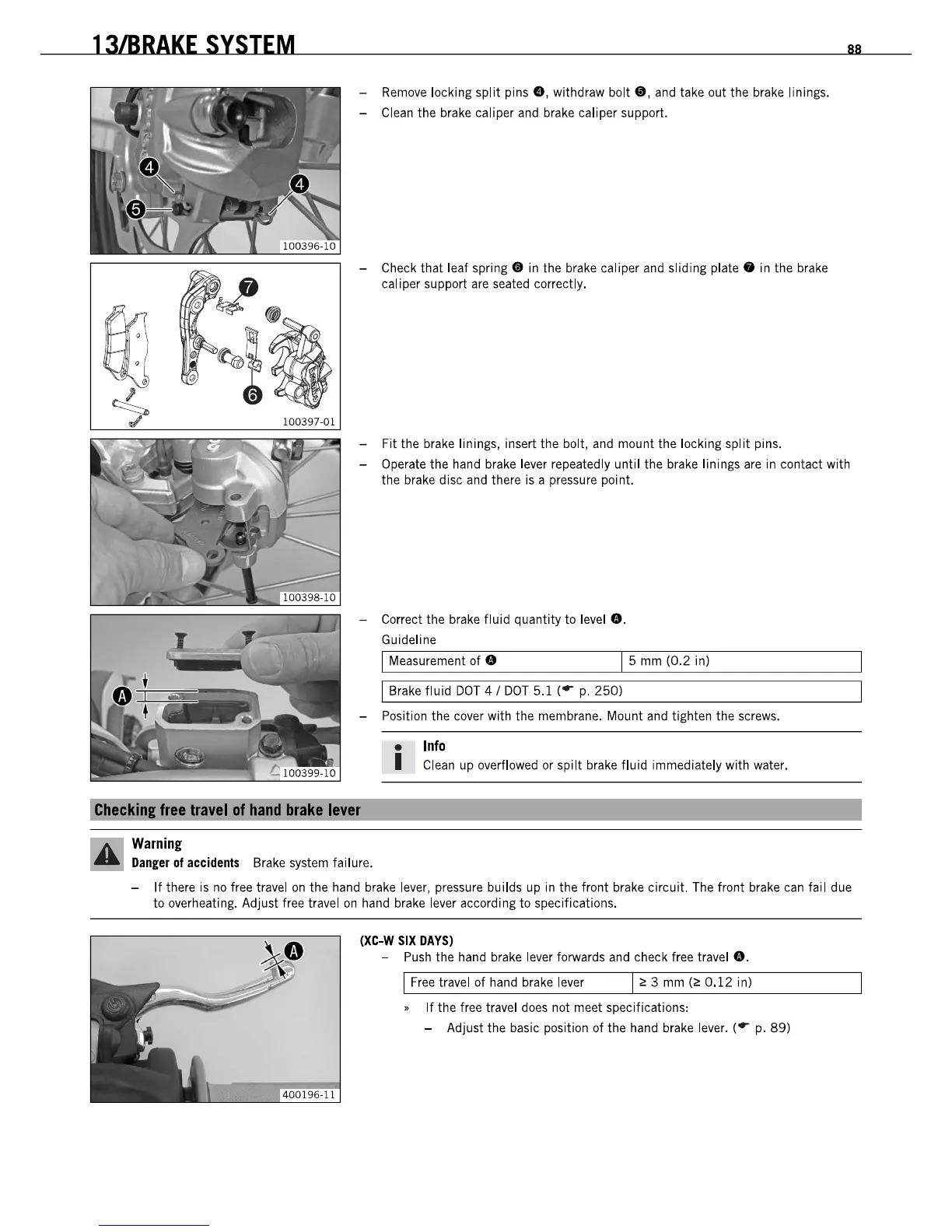

13/BRAKE
SYSTEM
-
Remove
locking
split
pins
.,
withdraw bolt
.,
and take out the brake linings.
- Clean the brake caliper and brake caliper support.
- Check that leaf
spring.
in the brake caliper and sliding
plate.
in the brake
caliper support
are
seated correctly.
- Fit the brake linings, insert the bolt, and mount the locking
split
pins.
88
- Operate the hand brake lever repeatedly until the brake linings
are
in contact with
the brake disc and there
is
a pressure point.
- Correct the brake fluid quantity to
level
•.
Guideline
I Measurement of • I 5
mm
(0.2 in)
I Brake fluid
DOT
41
DOT
5.1 (
..
p.
250)
- Position the cover with the membrane. Mount and tighten the screws.
•
Info
I
Clean
up overflowed or
spilt
brake
fluid
immediately with water.
Checklnl
free
trayel
of
hand
brake
leyer
Warning
Danler
of
accidents
Brake system failure.
- If there is
no
free travel
on
the hand brake lever, pressure builds up in the front brake circuit. The front brake
can
fail due
to overheating. Adjust free travel
on
hand brake lever according
to
specifications.
(XC-W
SIX
DAYS)
-
Push
the hand brake lever forwards and check free
travel
•.
I
Free
travel of hand brake lever I
~
3
mm
(~0.12
in)
>
If
the free travel does not meet specifications:
- Adjust the basic position of the hand brake lever. (
..
p.
B9)
