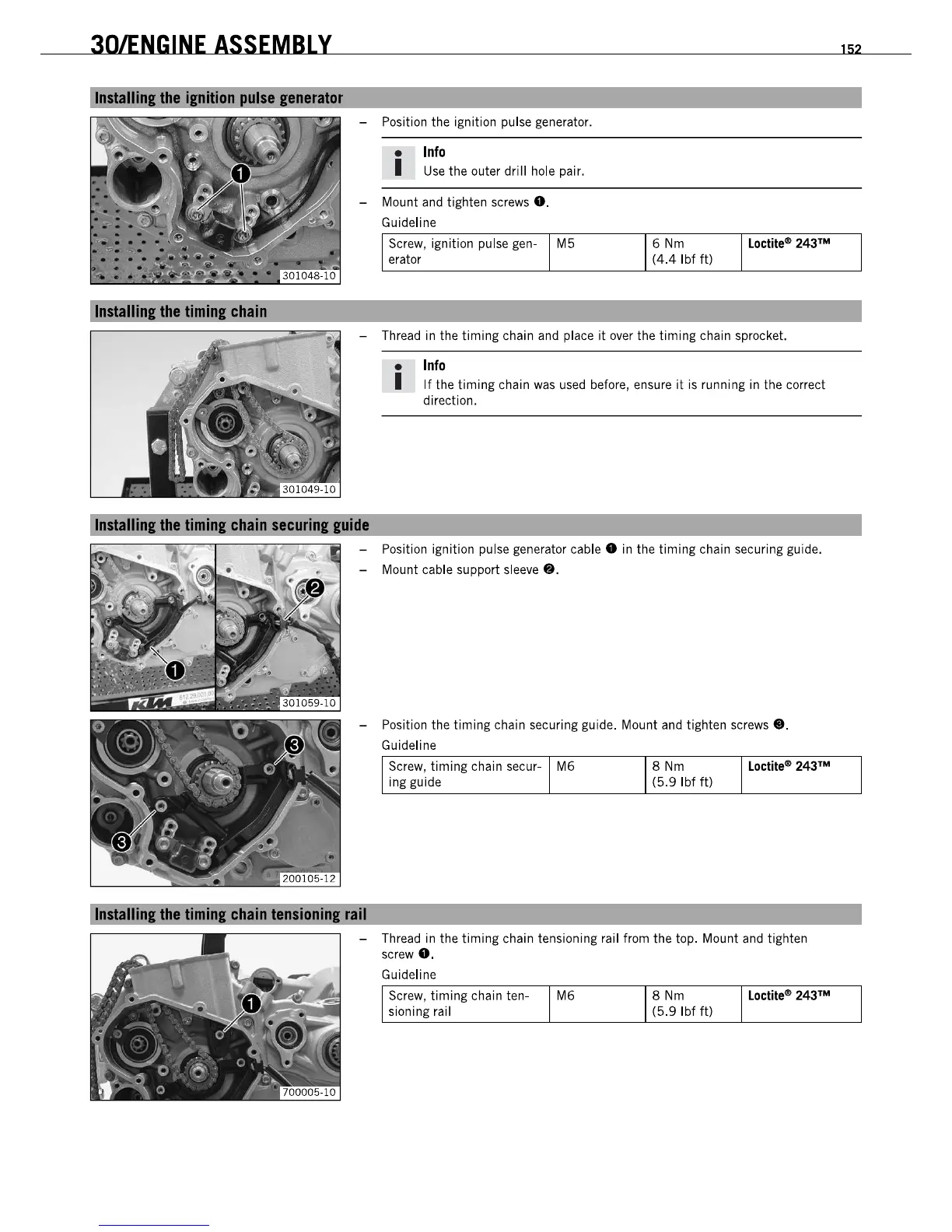

301ENGINE ASSEMBLY
Installinllha timinl chain
- Position the ignition pulse generator.
• Info
I Use the outer drill hole pair.
- Mount and tighten screws
O.
Guideline
Screw, ignition pulse gen- M5
6Nm
Loctile- 243'"
erator
(4.4 Ibf ft)
- Thread in the timing chain and place it over the timing chain sprocket.
• Info
I If the timing chain was used before, ensure it is running in the correct
direction.
- Position ignition pulse generator
cable. in the timing chain securing guide.
- Mount cable support sleeve
e.
- Position the timing chain securing guide. Mount and tighten screws •.
Guideline
Screw, timing chain secur- M6
ing guide
8Nm Loctilee 243'"
(5.9 Ibf ft)
- Thread in the timing chain tensioning rail from the top. Mount and tighten
screw •.
Guideline
Screw, timing chain ten-
sioning rail
M6 8Nm Loctilee 243'"
(5.9 Ibf tt)
