How To Create Bar Codes
Linx 7900
2.3.6 Aspect Ratio
When you select the Code 39 or ITF bar code formats, the Aspect Ratio option becomes
available.

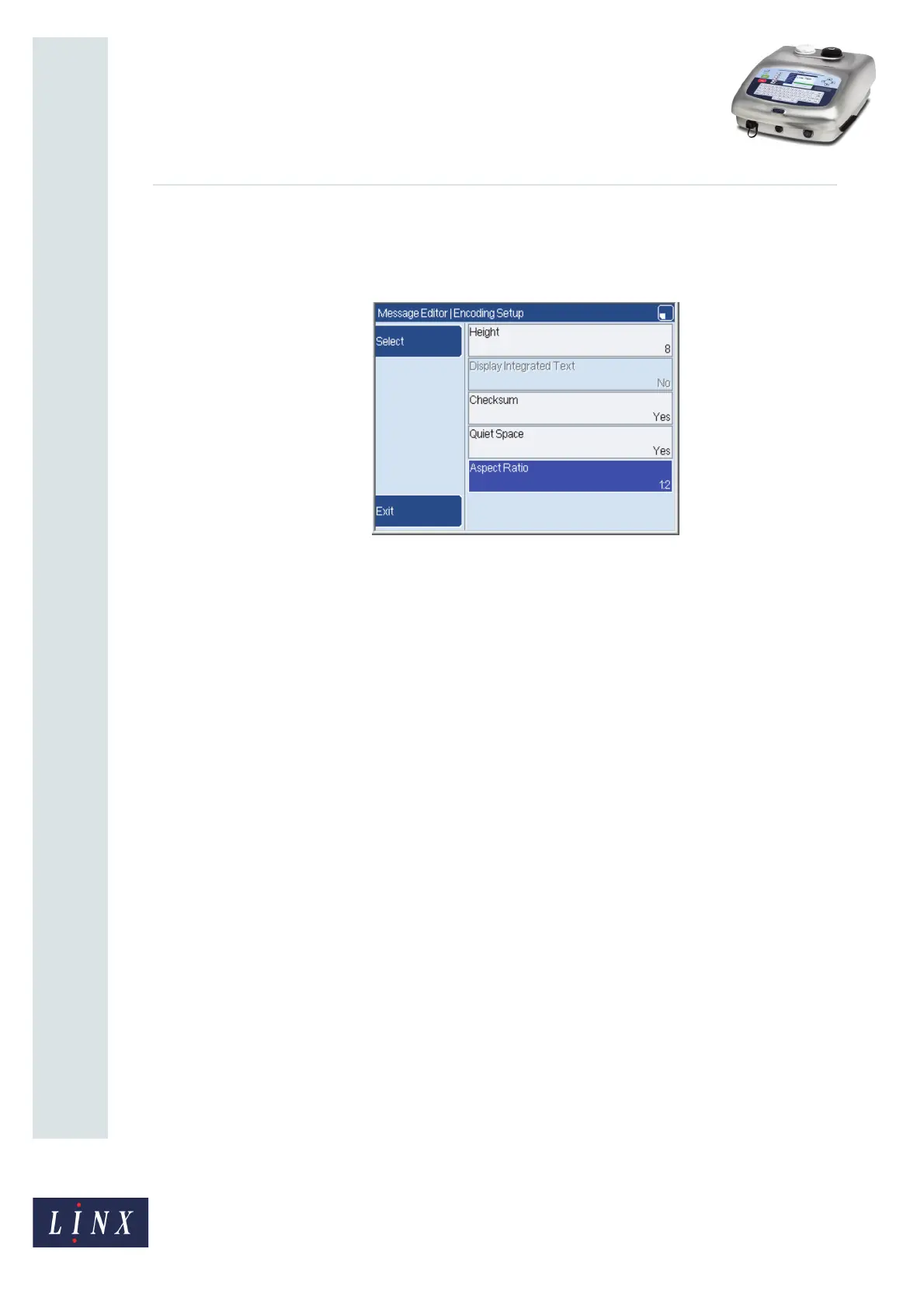

Figure 24. Encoding Setup page (Aspect Ratio option)
This option defines the difference in size between the narrow and wide lines of the bar code.
The values are the ratio of vertical lines (rasters) that make up the narrow and wide lines in
the bar code. The options available are as follows:
The default option is 1:2.
Narrow Wide
1:2 One vertical line Two vertical lines
1:3 One vertical line Three vertical lines
2:5 Two vertical lines Five vertical lines
3:8 Three vertical lines Eight vertical lines
