Midas PRO6 User Manual

382 Appendix K: Parameters Affected By Scope
XL8 Live Performance System
Owner’s Manual
Configuration

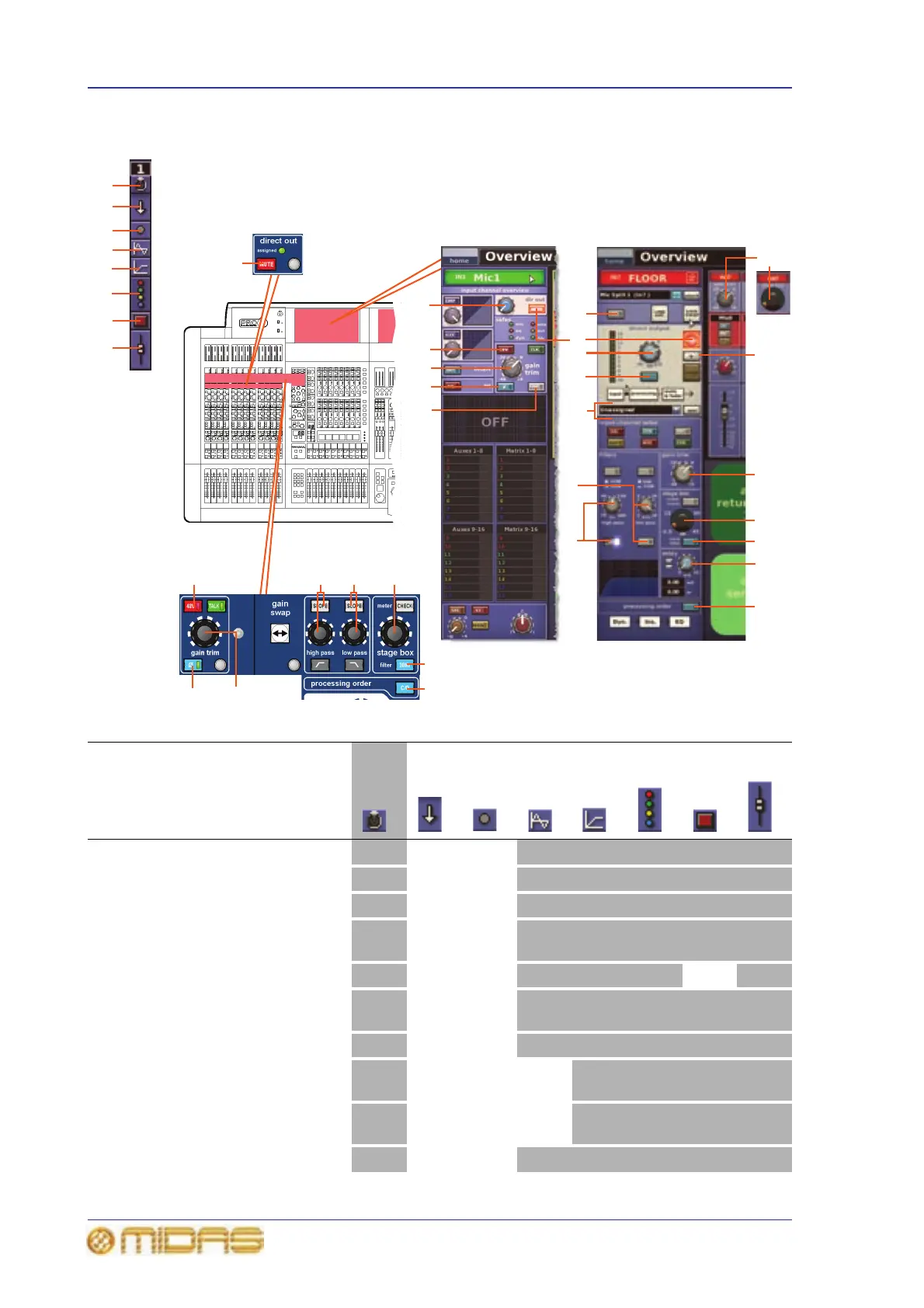

The following diagram details the scoped mic parameters of the input channels.
ABCDEFGH
Item Parameter
1 Mic gain* N/A Yes Yes N/A N/A N/A N/A N/A
2 Digital trim*
N/A Yes Yes N/A N/A N/A N/A N/A
3 Direct output level
N/A Yes Yes N/A N/A N/A N/A N/A
4 Direct output
tap-off point
N/A Yes Yes N/A N/A N/A N/A N/A
5 Direct output mute
N/A Yes No N/A N/A N/A Yes N/A
6 Direct output patch
destination
N/A No No N/A N/A N/A N/A N/A
7 Input delay
N/A Yes Yes N/A N/A N/A N/A N/A
8 Hi pass filter: slope
in/out and rotary control
N/A Yes No Yes N/A N/A N/A N/A
9 Low pass filter: slope
in/out and rotary control
N/A Yes No Yes N/A N/A N/A N/A
10 48V
N/A Yes Yes N/A N/A N/A N/A N/A
A
B
C
D
E
F
G
H
11
8110
2
9
6
2
11
7
14
9
8
12
15
13
1/2
3
4
5
1
3
10
2
12
13
Input channel
overview in GUI
channel strip
Configuration
processing area in GUI
channel strip
14
5
