Matrix (matrix channels) 563
XL8 Live Performance System
Owner’s Manual
Matrix (matrix channels)
This section shows you which parameters for each of the 16 matrix channels are
affected by copy through scenes.
Config sections

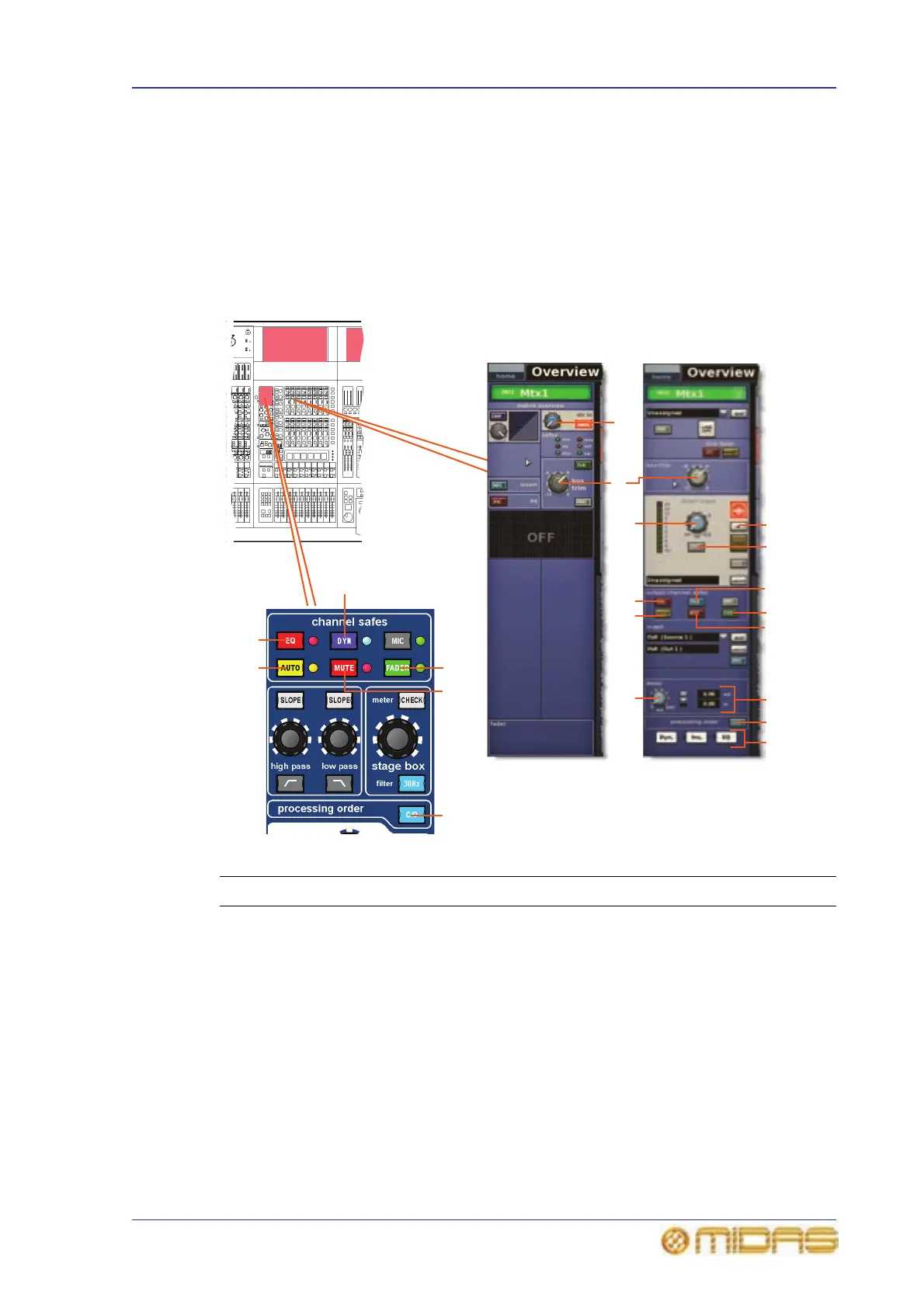

The following diagram shows the parameters of the configuration processing area
copied through scenes.
Item Control Parameter
1
bus trim control
knob
Bus trim level
2 Control knob Direct input level
3 B switch Direct input solo B on/off
4 PRE switch Direct input pre- in/out
5 EQ pushbutton EQ safe on/off
6 DYN pushbutton Dynamic safe on/off
7 FADER/[FDR] switch Fader safe on/off
8 MUTE/[MTE] switch Mute safe on/off
9 AUTO/[AUT] switch Auto safe on/off
4
3
Insert and configuration
processing area in GUI
channel strip
1
matrix overview
in GUI channel
strip
2
2
7
8
6
5
9
10
11
12
13
12
7
8
9
5
6
