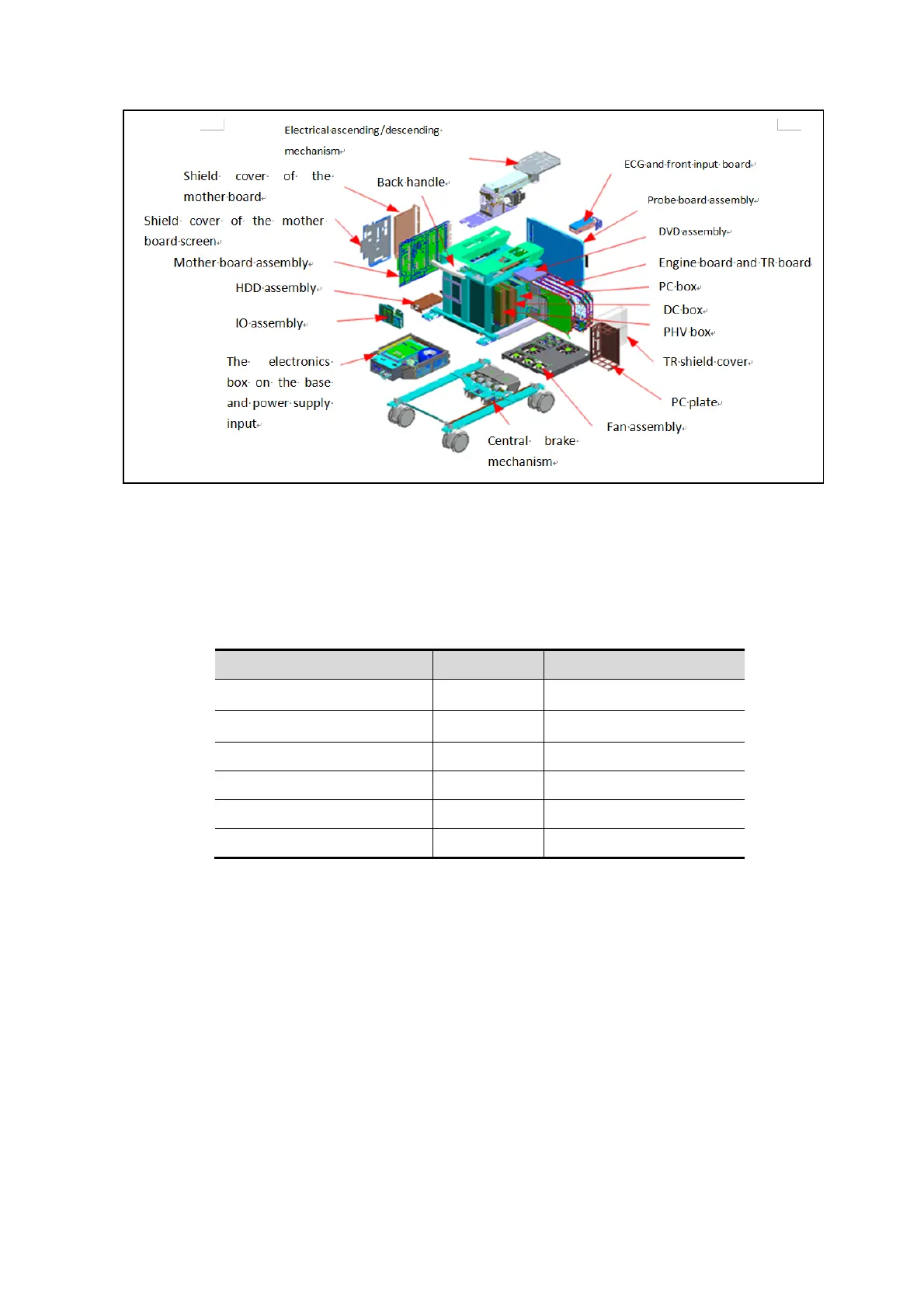

9-2 Structure and Assembly/Disassembly
9.2 Preparation
9.2.1 Tools Required
Name
Type
Remarks
Inner hexagon spanner /
M3、M4、M5、M6、M8
Cross-headed screwdriver 107*75
M2、M3、M4
Flat-headed screwdriver / /
Spanner
1PK-H024
4″
Diagonal cutting pliers
N-206S
/
Anti-static glove / /
9.2.2 Engineers Required
Only technical professionals from Mindray or engineers authorized by Mindray after training can
perform maintenance and check.
9.2.3 Requirements
You should perform the following preparations before the disassembling of ultrasound device.
1. Stop the scanning and the image capture, power off the system and disconnect the system
from the AC power supply, then pull out AC power cables.
2. Prepare a soft platform and keep the platform clear. Prevent the device being scraped.
3. Lock the casters to prevent the device from moving when disassembling.
