9-6 Structure and Assembly/Disassembly
9.3.2 Cup Rack Assembly
The disassembly tool: M5 Inner hexagon spanner
Unscrew 8 M5 X 12
round inner head screws (with the pad), and remove the right and the left cup rack
assembly.

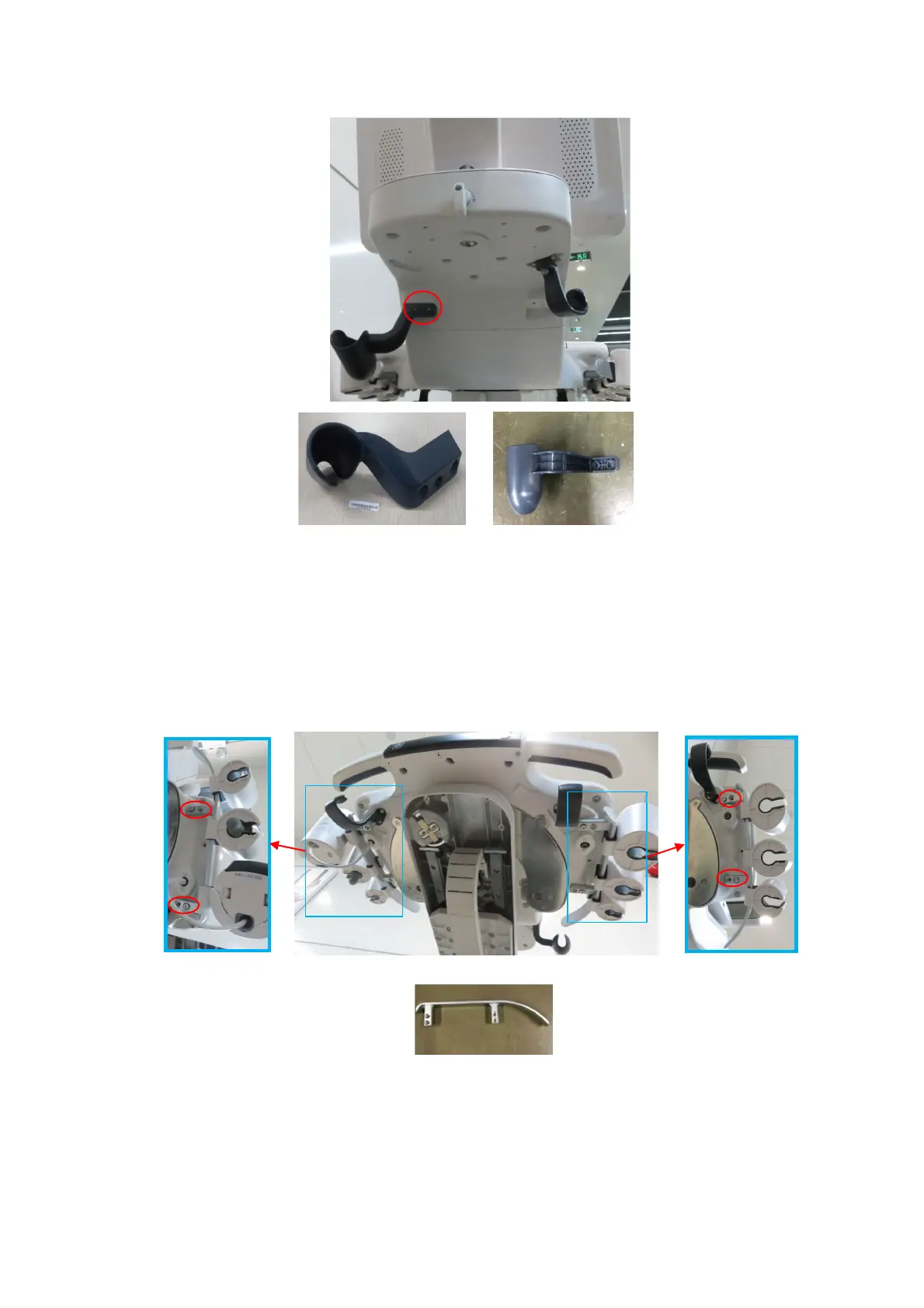

9.3.3 Wire Pothook Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
C
up rack assembly
Left intracavitary
probe bracket
Right intracavitary
probe bracket
