4-8 Product Principle
 WIFI Module
To UI
Control/communi
cation/storage
Back end power
supply
Power supply
monitoring
Power on/off
control
PHV control
Reset and the
respond
Reserve
signal
JTAG
Front FPGA
cong status
PCIE bus
Printer
USB x1 Video
Digital
video
HDMI VGA & I2C
WiFi
bluetoo
th
PCIE x1 USB x1
HDD
SATA 2.0x2
User
interfac
e
USB 2.0 x N USB 3.0 x N
Video
output
Right channel
Speake
r mic
audio
Touch
screen
USB 2.0
Second
ary
display
video+ I2C
Primary
display
video + I2C
Control
panel
Electric
al lift
USB 2.0
Simulat
ion
video
S-Video
MF
FPGA
IO
expansi
on
COME
&
GPU
EC
module
PC carrier
Back
end
monito
ring
DVR
Back unit
end
Ethernet
User IO
UI
Magnetic
navagat or
USB x1

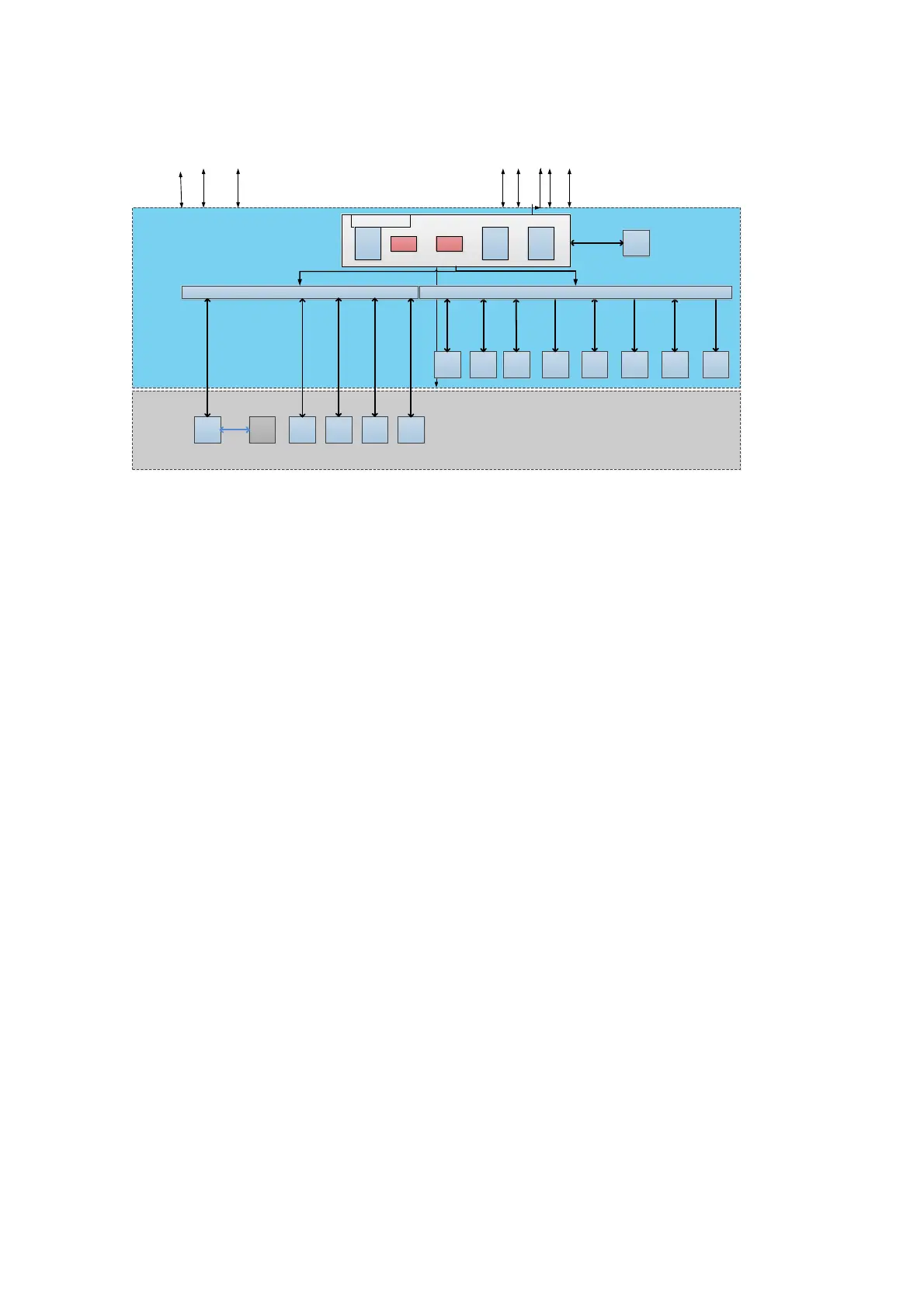

Figure 8 Diagram of Back-end Unit
4.3.1 COME (CPU) module
COME (CPU) module is integrated CPU (with integrated graphics), host bridge (IO extension),
memory bank, together with PC carrier board, hard disk and independent GPU, as the calculation
and control center of the entire unit, CPU module fulfills the comprehensive functions on the
computer system.
Key specification of COME (CPU) module is shown below：
 Select the industrial CPU module which meets the COME 2.0 Type 6.
 CPU: i7
 Memory: 8G
4.3.2 Independent GPU (GPU)
The independent GPU is used as the coprocessor of COME (CPU) module, it has stronger
calculation capacity. The key specification below:
 Module type under standard MAX 3.0 Type B. mechanical size: 82mm*105mm. Plug height:
5mm.
 Support CUDA, the processing ability is not less than GTX770M.
4.3.3 Memory device (SSD&SATA hard disk)
It is used for saving image data, user data and operating system. Together with COME (CPU)
module, PC carrier board and independent GPU, it fulfills the comprehensive functions on the
computer system.
Taking account of compatibility and capacity, the ultrasound system chooses a SSD with mSata
interface 120G as the operating system disk and a 2.5 inches hard disk with 1T to save user data.
4.3.4 PC carrier board
Function
 Provide PC environment for ultrasound system
