Mindray Eagus R9 User Manual

Structure and Assembly/Disassembly 9-53
9.3.25 PC Main Board Assembly
The disassembly tool: cross-headed screwdriver (M2, M3, M4), diagonal cutting pliers.
1. Remove PC box assembly, see 9.3.24.3 Engine Board PCBA Assembly for details.
Note:

In case of the distortion of the pin, pull PC box assembly out without shaking.
 The arrow should face upwards when installing.

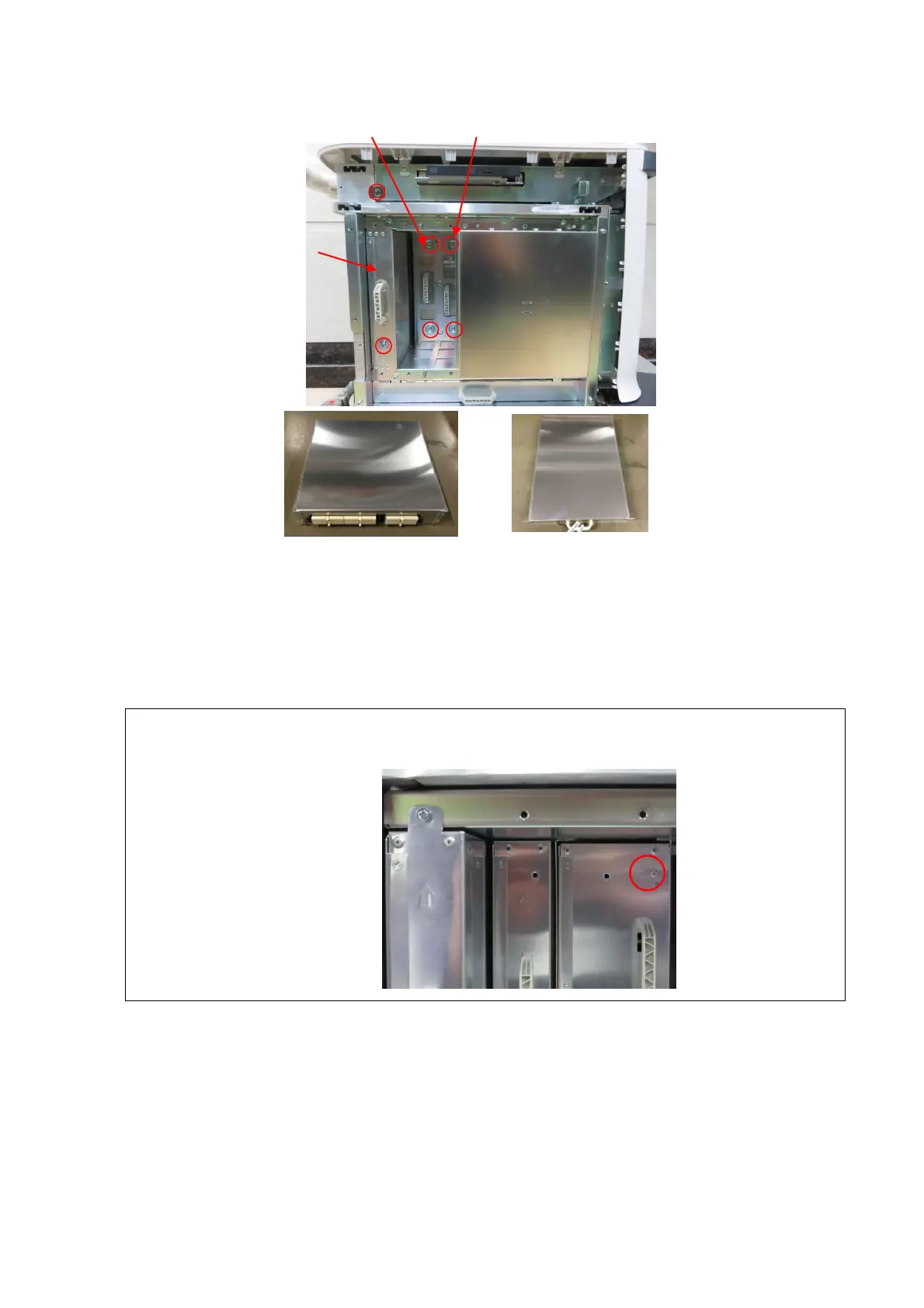

2. Unscrew 9 M3 X 8 cross sunk head screws with screwdriver (M3, M4) to remove PC box
assembly.
PHV box
DC box
PC box
DC box (FRU)
PHV box (FRU)
