9-78 Structure and Assembly/Disassembly
9.3.38 Housing Assembly of the Main Unit
The disassembly tool: spanner (sharp nose pliers), cross screwdriver (M3, M4), inner hexagon
spanner (M5, M6).
See 9.3.16, 9.3.17, 9.3.18, 9.3.19, 9.3.20, 9.3.21 and 9.3.22 for details.
9.3.38.1 The Back Handle of the Main Unit
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M5).
1. See 9.3.16 for details.
2. Unscrew 2 M3 X 8 cross panhead combination screws on the rocker arm plate with the
screwdriver (M3, M4) to remove the electrical rocker arm.
Note:
Align the hexagon of the electrical rocker arm with the hexagon socket head when
installing. Be aware of the slot of the electrical rocker arm.
3. Unscrew 3 M6 X 20 round inner head screws (with the pad) with the M6 inner head spanner to
remove the back handle of the main unit.

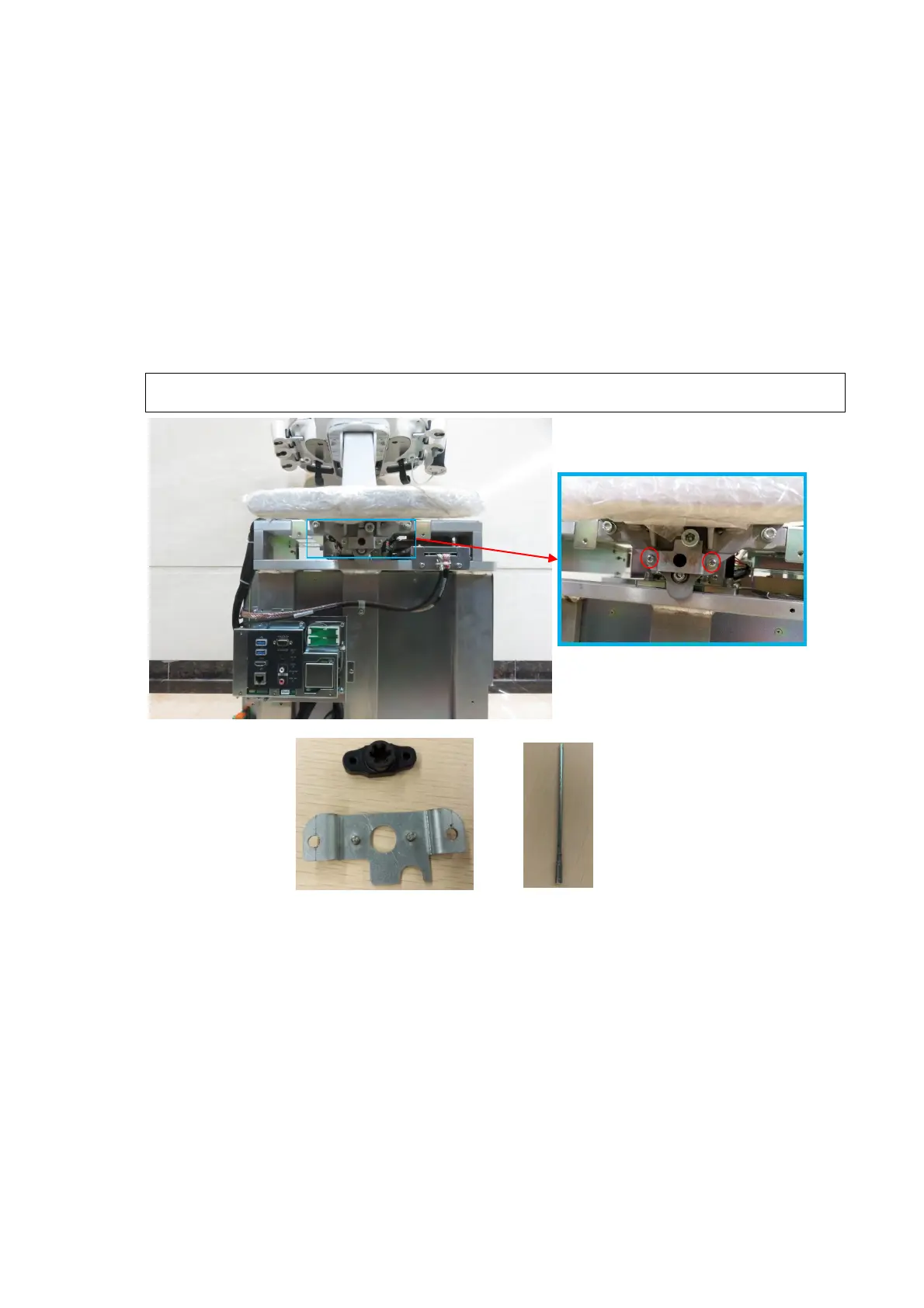

F
ixing ring of the rocker arm
Rocker arm
Electrical rocker arm
