Mindray Eagus R9 User Manual

9-70 Structure and Assembly/Disassembly
1. See 9.3.16, 9.3.17 for details.

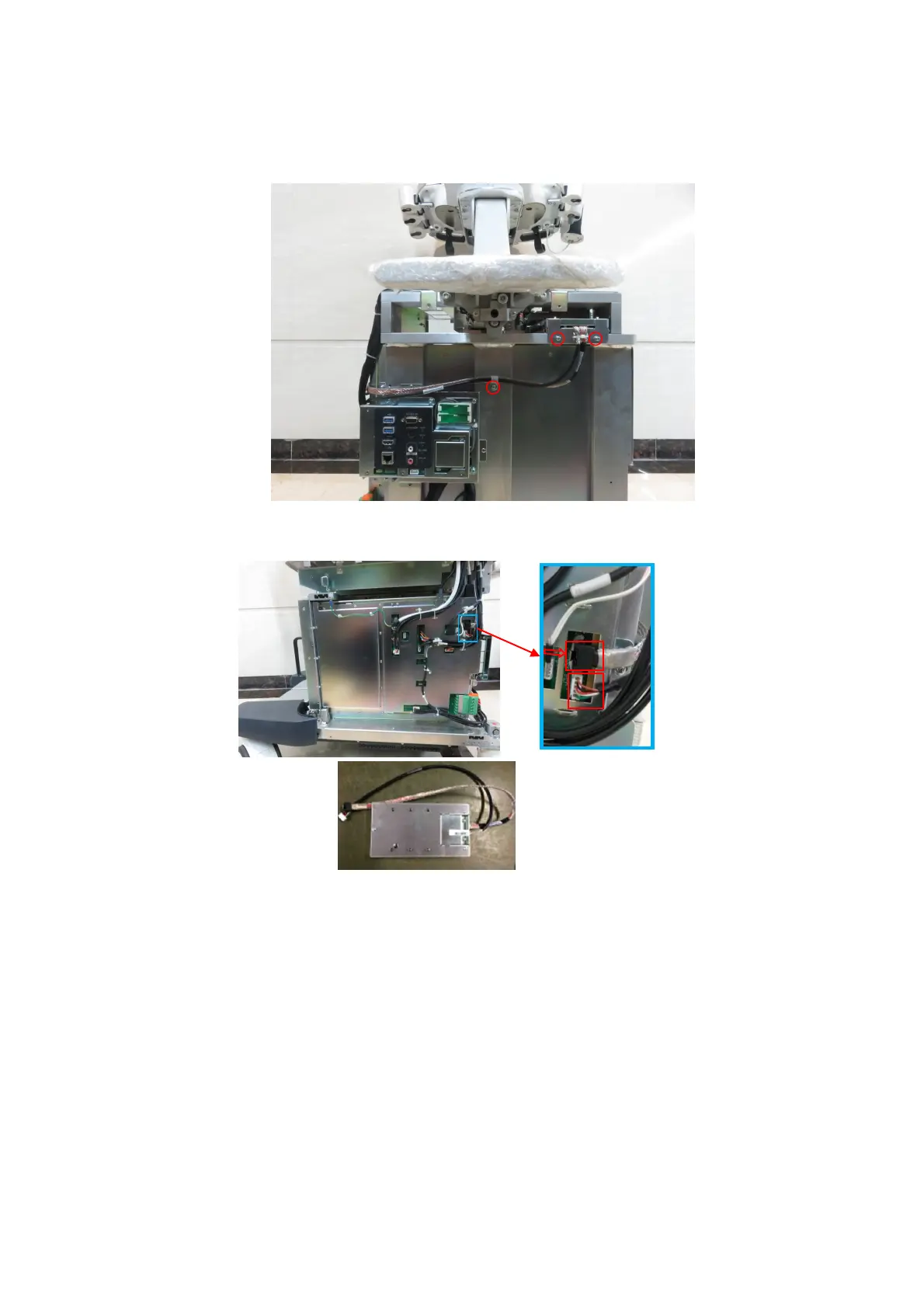

2. Unscrew 2 M4 X 12 cross panhead screws on the HDD assembly and one M4 X 12 cross
panhead screw from the fixing knob UC-1.5 with the screwdriver (M3, M4).
3. Press the lock towards the arrow’s direction, and unplug the HDD signal cable of SATA and the
HDD power supply cable of SATA, and then remove the HHD assembly (FRU).
9.3.33 DVD Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.16, 9.3.17, 9.3.18 and 9.3.19, 9.3.20 and 9.3.22 for details.
2. Cut 3 tie cables CHS-3X100 with diagonal cutting pliers.
SATA HDD power cable
SATA hard drive
signal cable
HDD assembly (FRU)
