Structure and Assembly/Disassembly 9-23

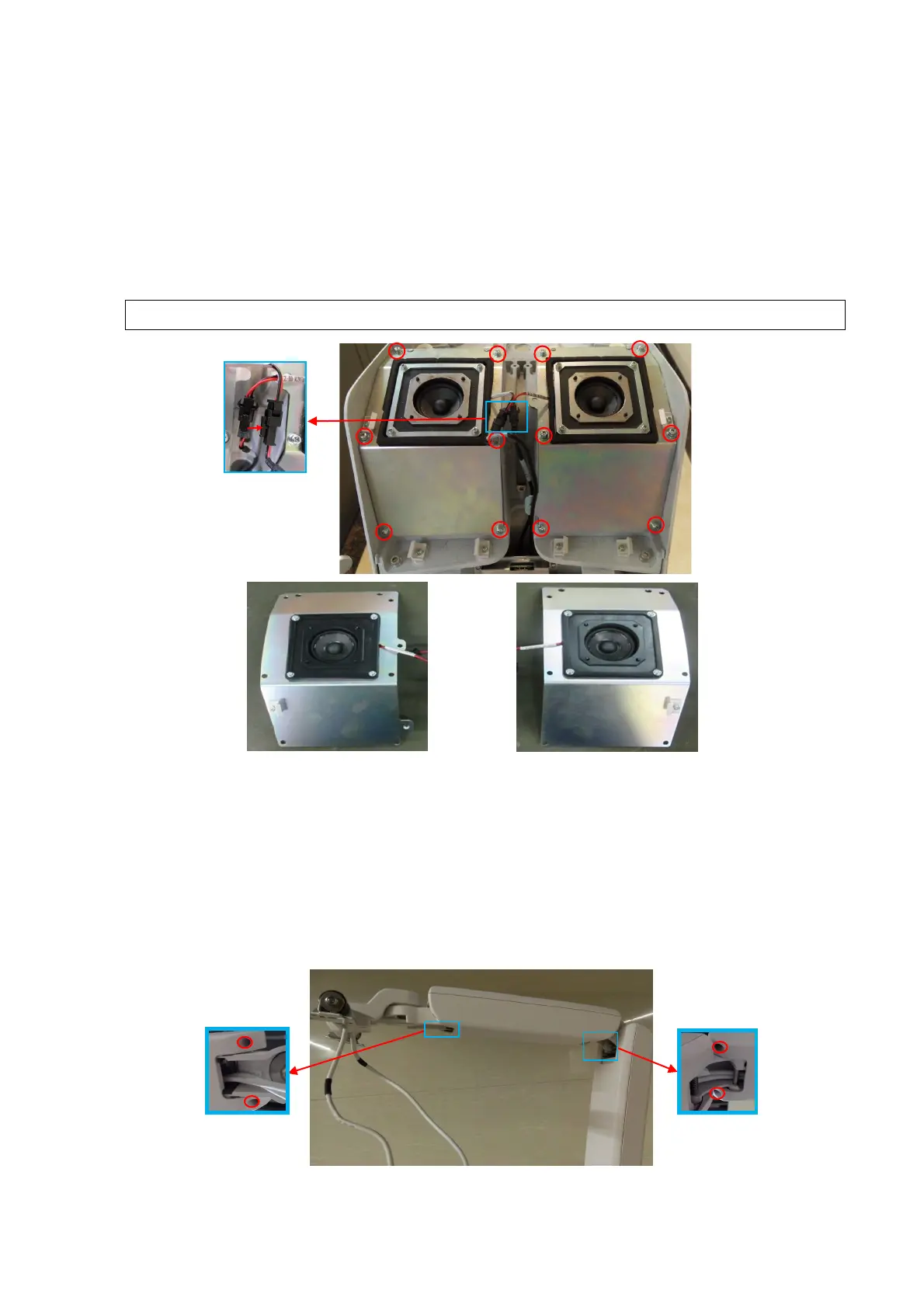

9.3.10 Left/Right Speaker Assembly
The disassembly tool: cross-headed screwdriver (M3, M4).
1. See 9.3.6 Control Panel Assembly, 9.3.8 Touch Screen Assembly, and 9.3.9 Speaker Cover
Assembly for details.
2. Press the clip towards the arrow’s direction. Pull the power supply cables of the left/right
speaker out. Unscrew 12 M4 X 12 cross panhead screws with screwdriver (M3, M4) to remove
the left/right speaker assembly (FRU).
Note:
Install the absorbing cotton insulation appropriately.
9.3.11 Upper/Lower Support Arm Cover
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Unscrew 4 M3 X 8 cross panhead screws from the support arm cover with the screwdriver (M3,
M4) to remove the upper and lower support arm cover (2116).
L
eft speaker assembly
(
FRU)
Right
speaker assembly
(
FRU)
