Mindray Eagus R9 User Manual

9-38 Structure and Assembly/Disassembly

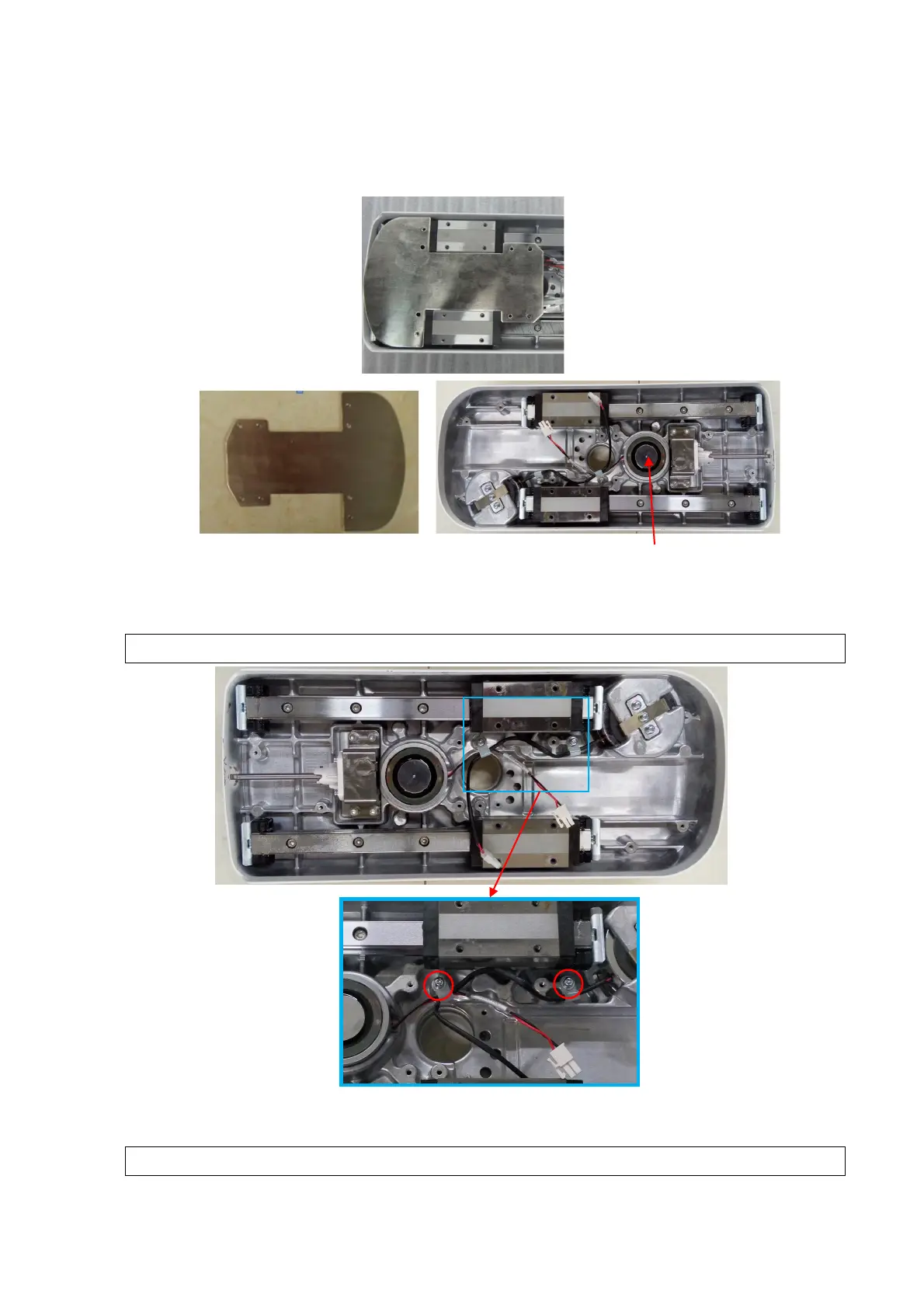

9.3.15.2 Electrical Magnet
1. Refer to Chapter 9.3.15 for details.
2. Split the bracket of the moving assembly from the Electromagnet 75 kgf.
3. Unscrew 2 M4 X 12 cross panhead screws on UC-0.5 lock knob with screwdriver (M3, M4) to
remove theUC-0.5 from the wires.
Note:
Ensure the lock knob orientation is correct when installing in reverse.
4. Unscrew 1 M4 X 12 cross panhead screw with the screwdriver (M3, M4) to remove the 120 kgf
magnetic navigation plate.
Note:
The plate spring should face the magnet when installing the electrical magnet.
Shift lower bracket of the moving
mechanism
Electromagnet 75 kgf
