104Service Manual – SC5000 22 - Steering System
Steering Offset Box

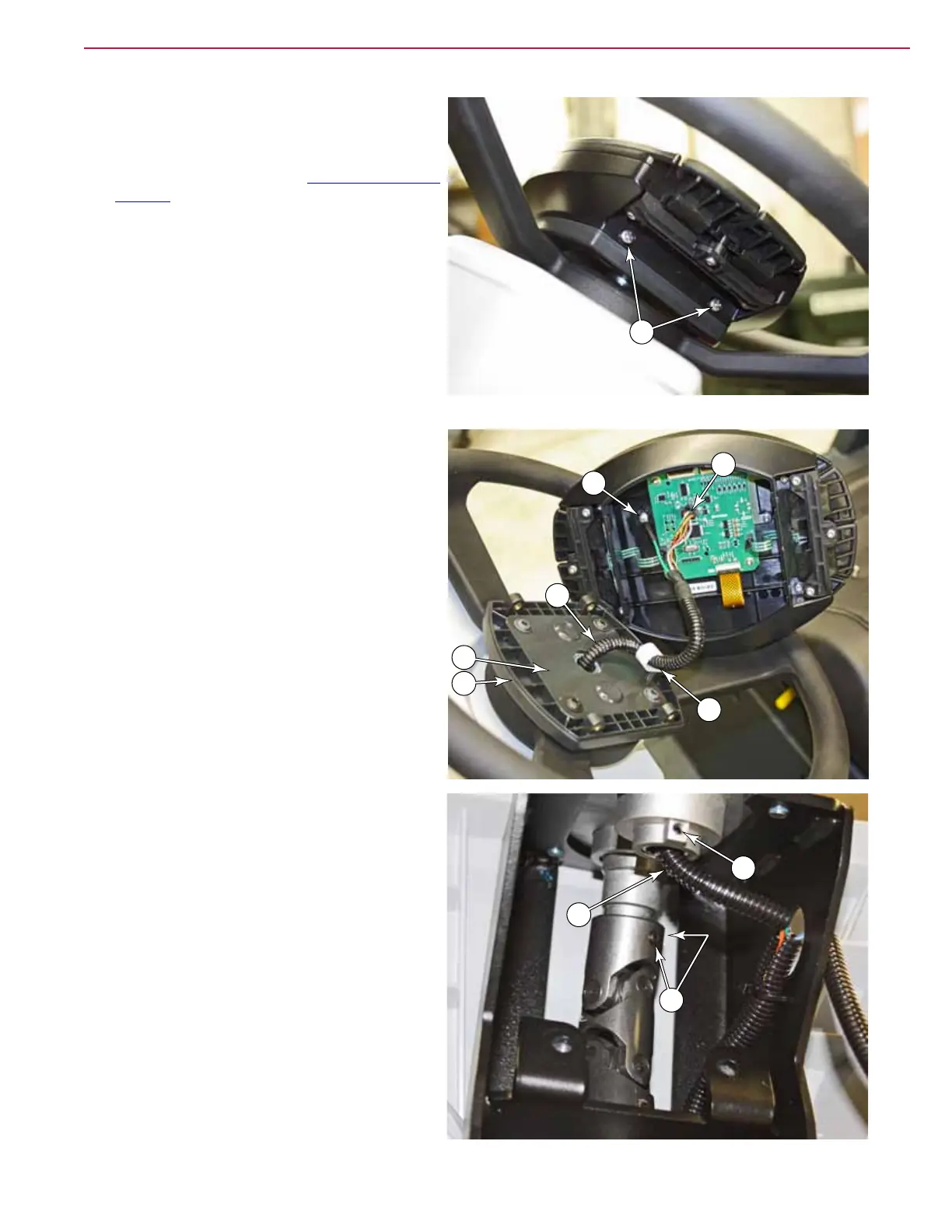

1. Shut down the machine.
2. Remove the rear and top steering column
covers, as described in the “Steering Column
Covers” on page 103. (It’s not necessary to
remove the front cover.)
3. Remove the four screws (A) that secure the
display assembly to the top of the steering
column.
4. Disconnect the grounding wire by removing
the screw (B).
5. Disconnect the display connector (C).
6. Remove or loosen the P-clamp (D) as
necessary, and retract the harness (E)
through the center shaft of the steering box.
7. Loosen the setscrew (F) that secures the
stationary shaft, and slide the operator
display mounting assembly (G and H) out of
the steering box.
8. Before the steering wheel is removed, turn
the steering wheel as necessary to access the
two setscrews (J) that secure the U-joint to
the steering box shaft. Loosen the setscrews.
A
C
D
E
G
H
B
J
F
E
To Next Page
