96Service Manual – SC5000 20 - Drive System

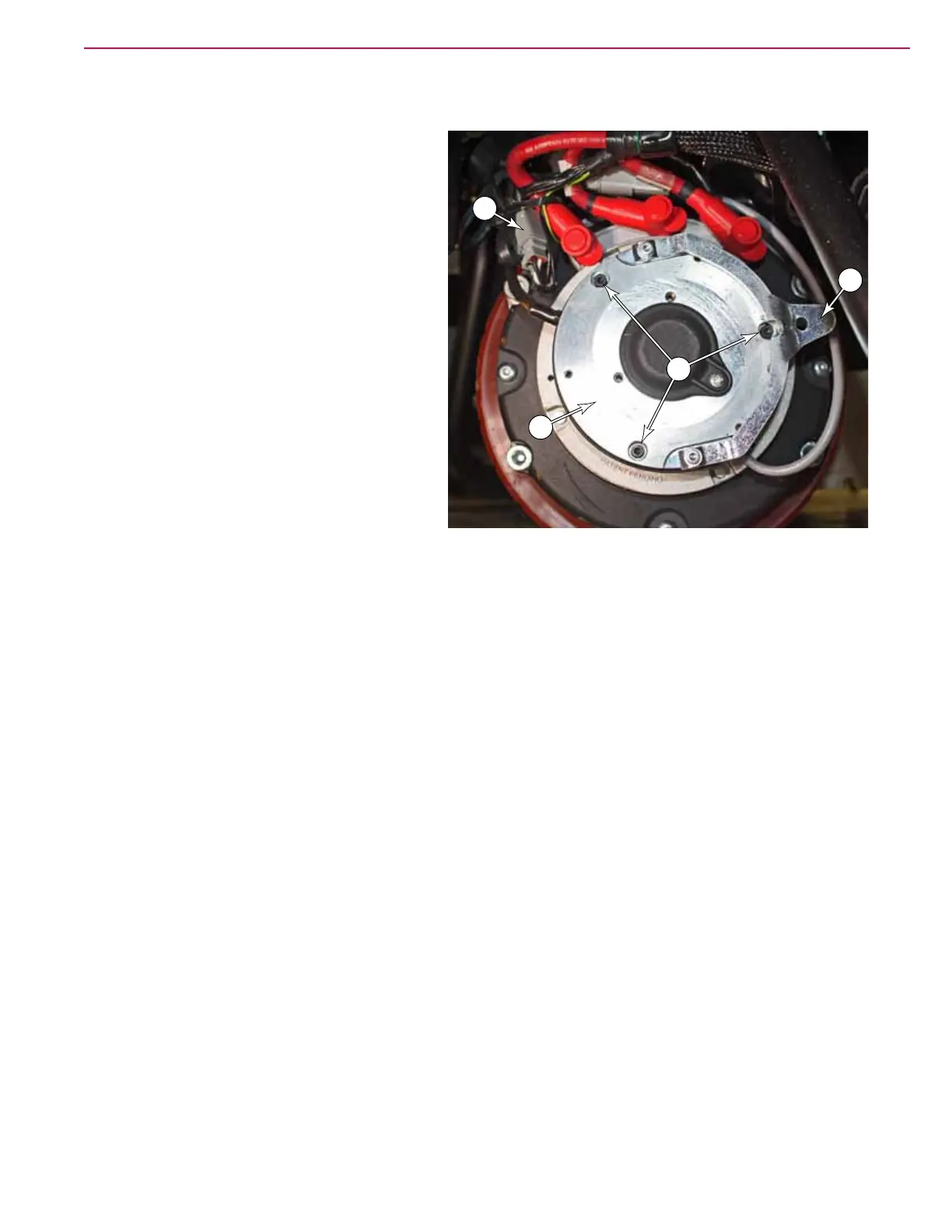

Electromechanical Brake
1. Disconnect the EM Brake electrical connector
(F).
2. Remove the three screws (C) that secure the
brake module (D) to the motor.
3. Free up the brake wire from the motor
housing, and remove the brake.
4. During replacement, use a screw driver to
hold the brake release lever (E) raised. This
will allow the spline gear to oat while you
realign the mounting screws.
5. Tighten the 3 mounting screws to 3 Nm.
A
B
E
F
C
D
