152Service Manual – SC5000 24 - Electrical System

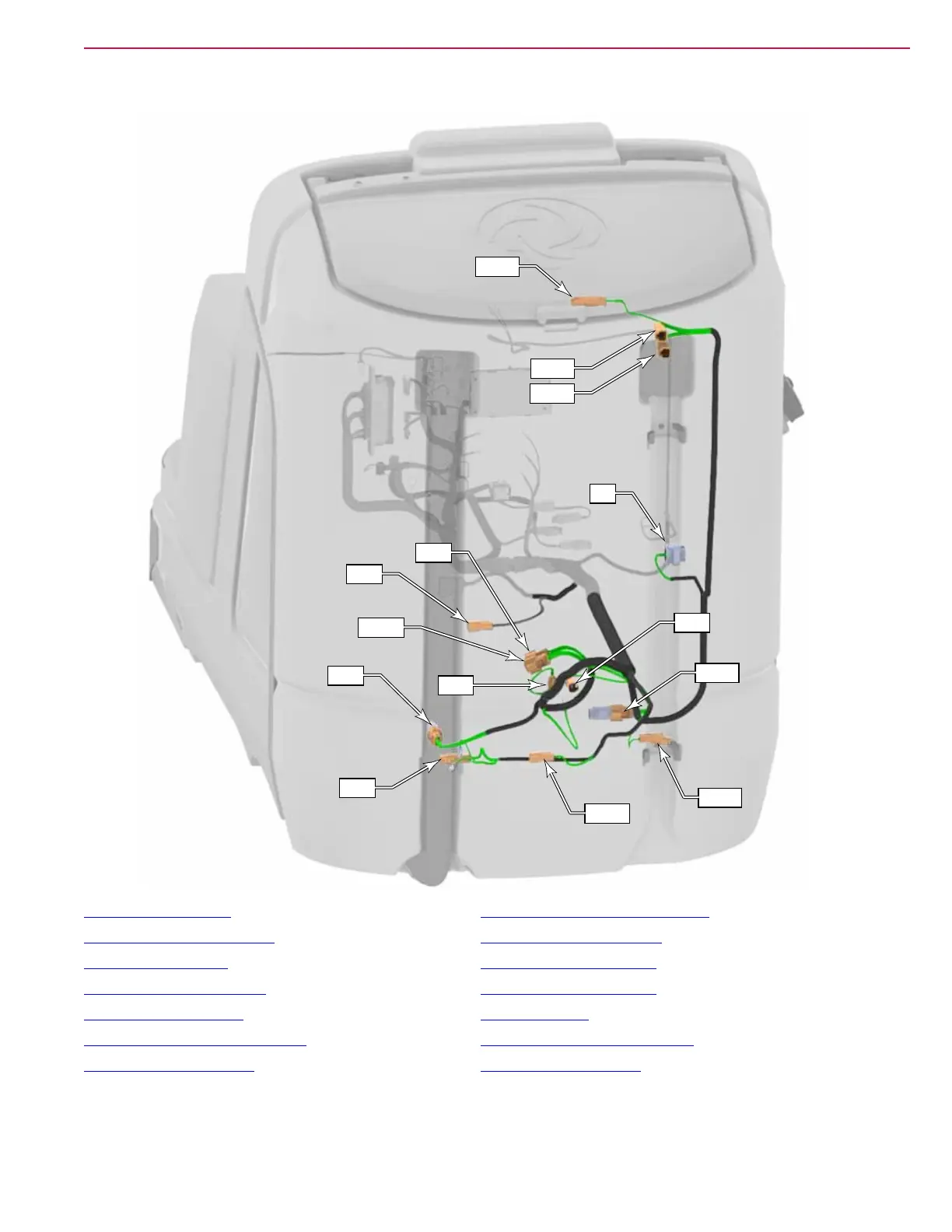

Main Harness, Rear
X151
X146
X156
J7
X85
X83
X128
X78
X84
X76
X204
X190
X126
X75
J7 Battery Charger ........................................... 156
X75 Squeegee Actuator ................................ 161
X76 Wash Pump ........................................... 161
X78 Solution Solenoid .................................. 162
X83 Deck Actuator ........................................ 162
X84 Rear Cylindrical Motor ......................... 162
X85 Left Disk Motor ..................................... 162
X126 Front Cylindrical Motor ........................ 162
X128 Right Disk Motor ................................... 163
X146 Vacuum Motor 2 .................................... 163
X156 Vacuum Motor 1 .................................... 163
X151 Beacon .................................................... 163
X190 Solution Level Sensor ........................... 164
X204 Backup Alarm ....................................... 164
