206Service Manual – SC5000 38 - Squeegee System
Removal and Installation
Squeegee Lift Actuator
1. Before turning off the machine,press the
vacuum switch to lower the squeegee to the
oor, then press the E-stop button to shut
down all motors.
2. With the E-stop active and without turning
the machine off, disconnect the battery
connector under the operator’s seat. This will
cause the squeegee to remain lowered.
3. Disconnect the actuator electrical connector.

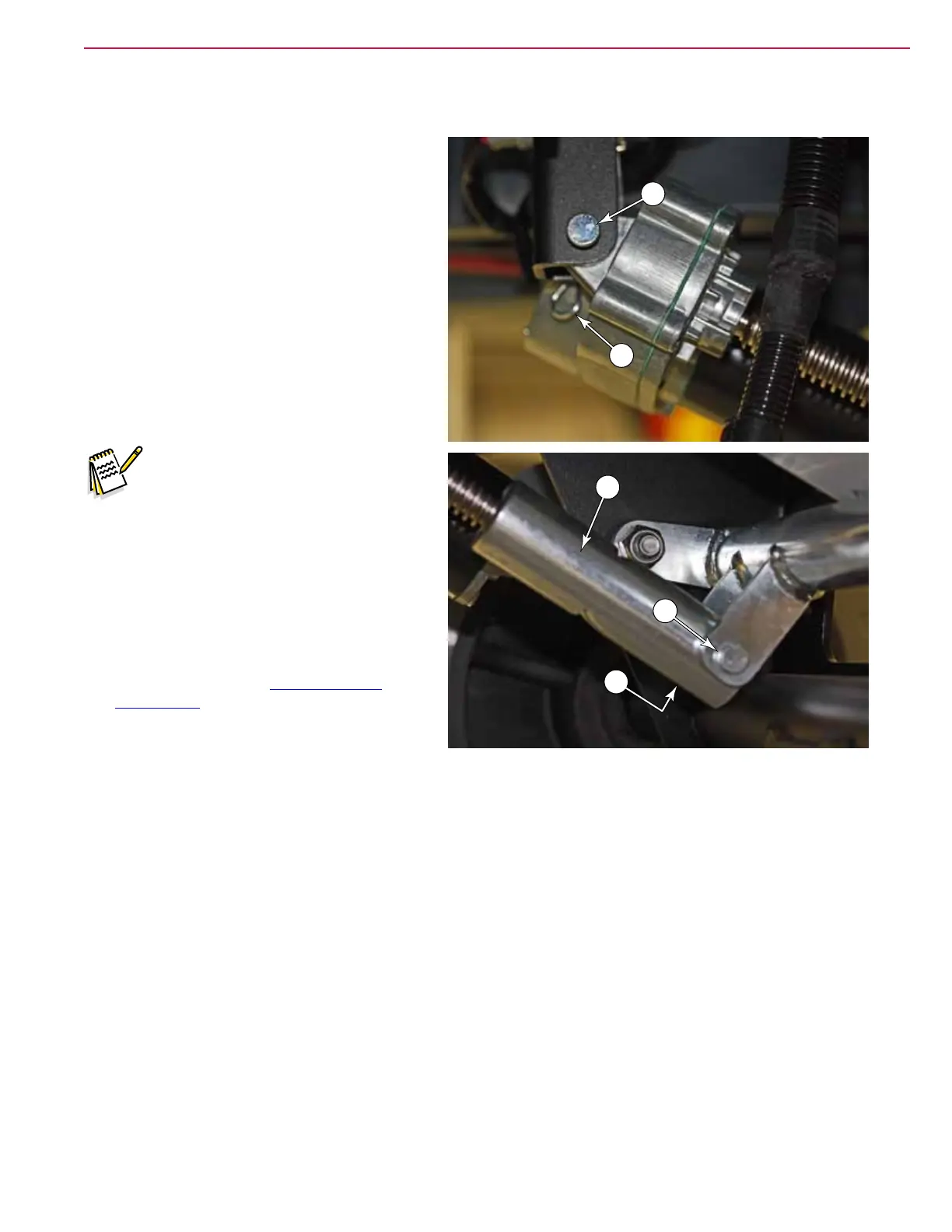

4. Remove the two retaining clips (C) from the
upper and lower pivot pins (B), and remove
the pivot pins.
Note: If the actuator is being
removed for a reason other
than replacement, do not allow
the leadnut (D) to rotate with
respect to the leadscrew. As long
as the leadnut does not rotate,
you can reinstall the actuator
without performing the limit
adjustment.
5. For a new actuator or if the nut was
repositioned with respect to the gear
housing, perform the Actuator Limit
Adjustment described on page 204.
6. Reinstall the actuator on the machine by
reversing the procedure steps.
B
C
B
D
C
