15Service Manual – SC5000 03 - General Information
Maintenance Procedure References
• Vacuum Motor Brushes described on page 214
• Disc Brush Motor Brushes described on page 185
• Cylindrical Brush Motor Brushes described on page 198
Lubricate the Machine

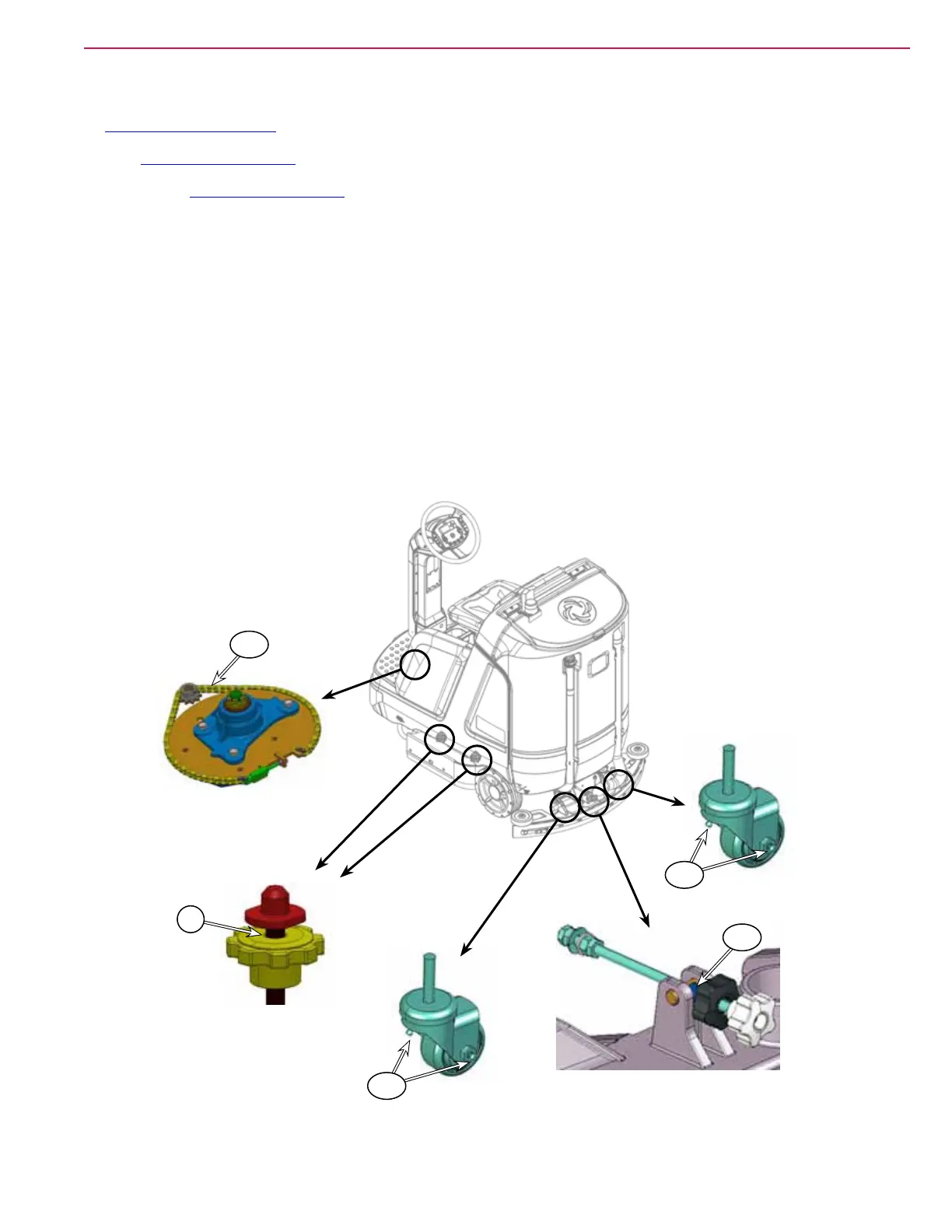

• Once per month, apply light machine oil to the threads of the side blade down adjustment knob (A).
• Once per quarter grease these components:
− the steering chain (B-1)
− the squeegee wheel axles and pivots (two zerks) (B-2)
− the threads of the squeegee mount angle adjustment knob (B-3)
A
B-1
B-3
B-2
B-2
