207Service Manual – SC5000 38 - Squeegee System
Specications
Parameter Range
M6 Squeegee Actuator Motor No Load amps: 1.4 max.
Full Load ams: 6.7 ±1.0
Special Tools

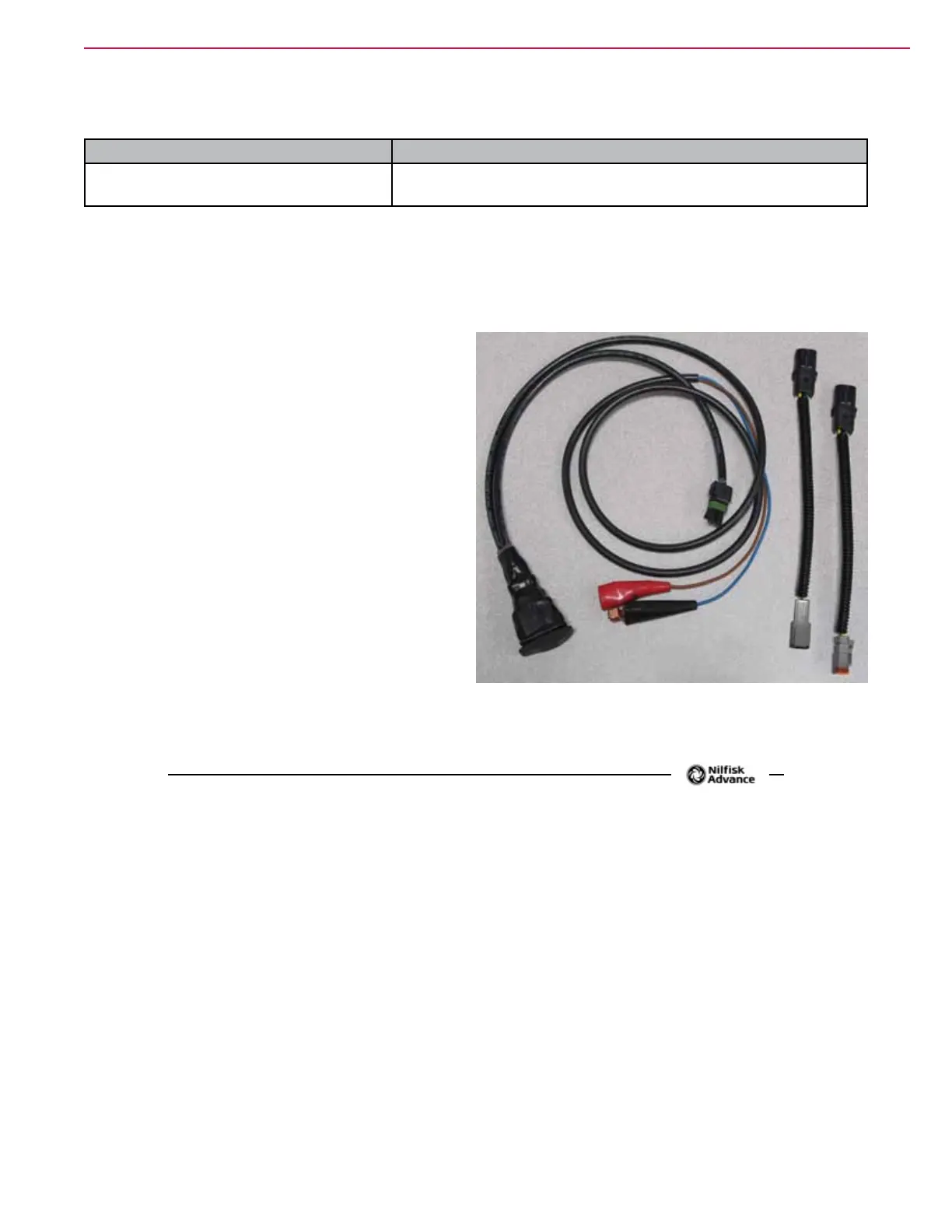

Actuator Test Kit
The actuator test kit (Pn 56407502) is used to
manually control an actuator removed from the
machine, but powered from a 36-volt battery. It
contains alligator clips to connect to the battery,
a reversing power switch, and a cable connector.
If your test kit is prior to Rev I, you will also need
a second adapter cable (Pn 56123352) to connect
between the tester and the actuator. These adaptors,
1-male and 1-female, are included in kits Rev I and
above.
