20Service Manual – SC5000 04 - Control System

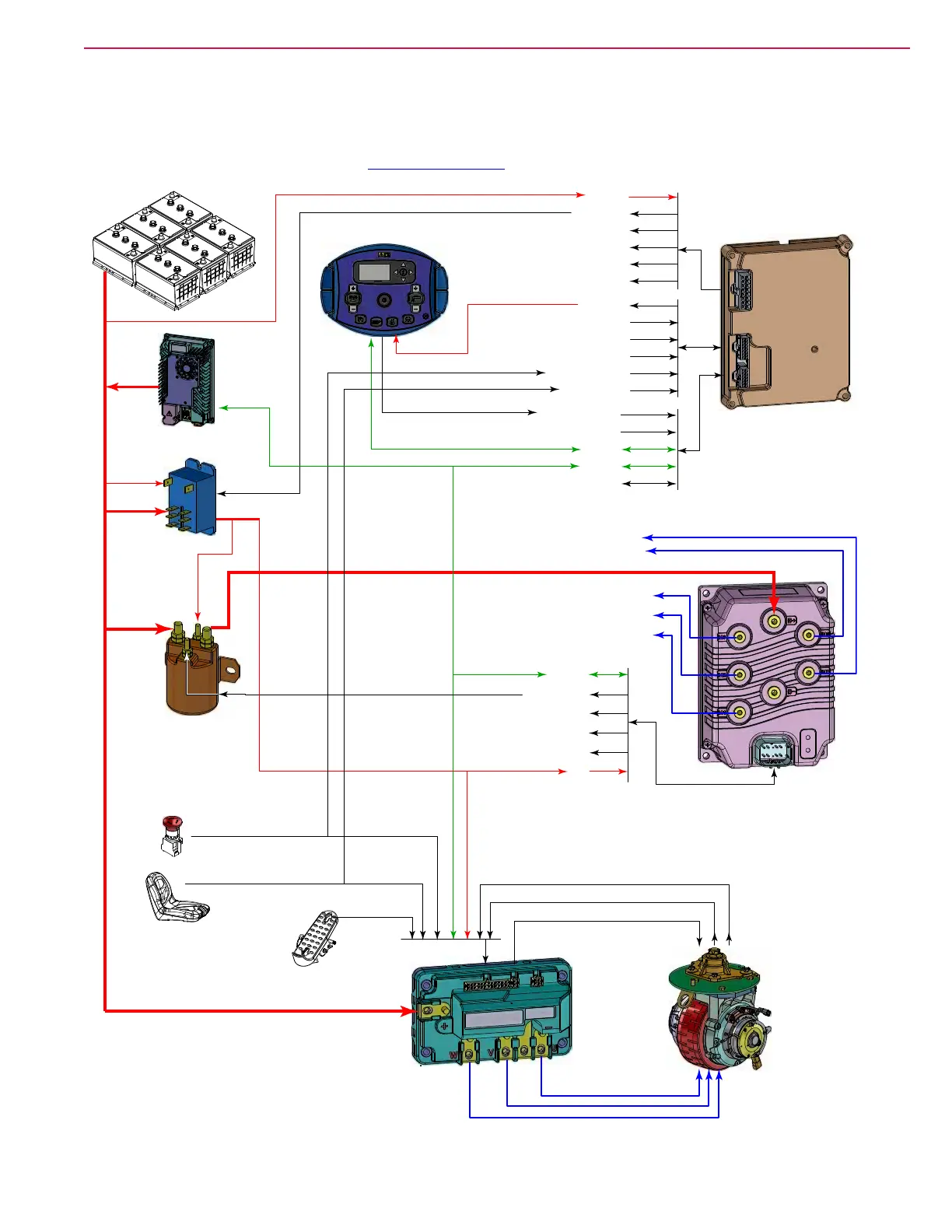

Functional Diagram
The Functional Block Diagram represents a high-level overview of the system interactions and
communications. It is not intended to show every component or connection. For a more detailed examination
of system interconnections, refer to the “Wiring Diagrams” on page 122 of the Electrical Chapter.
A1 Main
Machine Controller
A2 Power Module
A4 Drive
Controller
KSI Relay
Charger
K2 Relay
Commutation Sensors (x3)
Temperature
CAN-1 Bus
Squeegee Actuator
K2 Control
Deck Actuator
Option Pump
Solution Solenoid
KSI Relay
Horn
Backup Alarm
Detergent Pump
12V Out
Solution Level Sensors
Side Broom Up Sensor
A9 Operator Interface
Seat Switch
Seat Switch
E-Stop Switch
E-Stop Switch
Charger Interlock
USB
Power Button
CAN-0
CAN-1
iButton
CAN-1
Vacuum Motor 2
Vacuum Motor 1
Side Sweep Motor
Brush Motor 2
Brush Motor 1
KSI
KSI
J4
J5
J6
J3
J2
J1
Foot Pedal
Main Battery Power
Wheel Motor
Power
EM Brake
