193Service Manual – SC5000 34 - Scrub System, Cylindrical
Removal and Installation
Scrub Deck
Removing the scrub deck is a prerequisite to completing
other procedures, such as servicing the brush motors.
1. If available, position a furniture dolly, mechanic’s
creeper, or a sheet of cardboard below the scrub deck
to make it easier to roll the deck out from under the
machine.
2. From the service menu, lower the scrub deck to a
neutral position, and then press the E-stop button to
lock out all motor functions.
3. With the machine still powered, but in an E-Stop
condition, unplug the main battery connector.

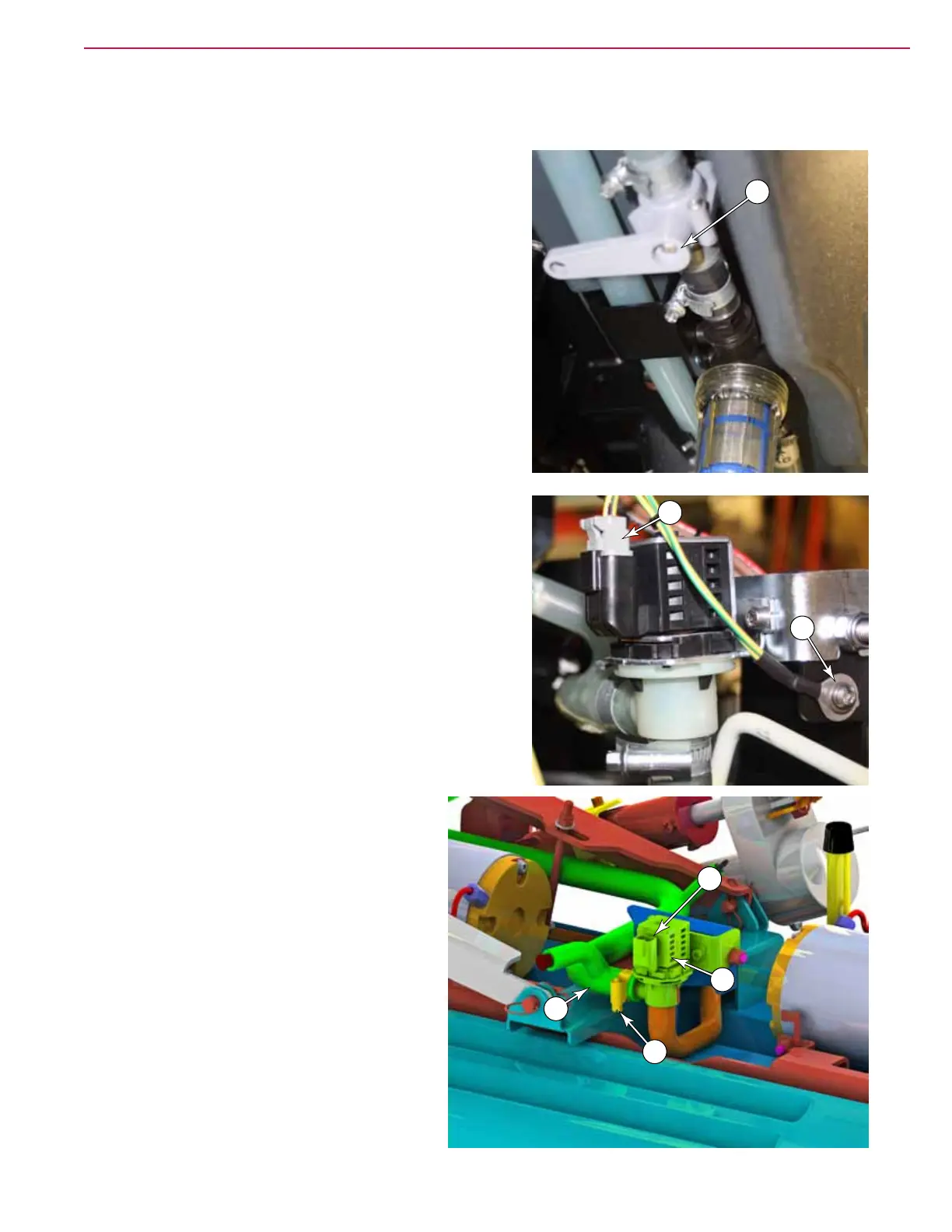

4. Close the solution shutoff valve (A), by turning it
perpendicular to the solution line.
5. Disconnect the solution solenoid electrical connector (E)
from the solenoid.
6. Disconnect the two scrub brush motor electrical
connectors
7. Disconnect the ground wire from the scrub deck (F).
8. Loosen the hose clamp (C) and remove the
solution line (D) from the solution solenoid
(B).
A
E
F
E
B
C
D
To Next Page
