195Service Manual – SC5000 34 - Scrub System, Cylindrical

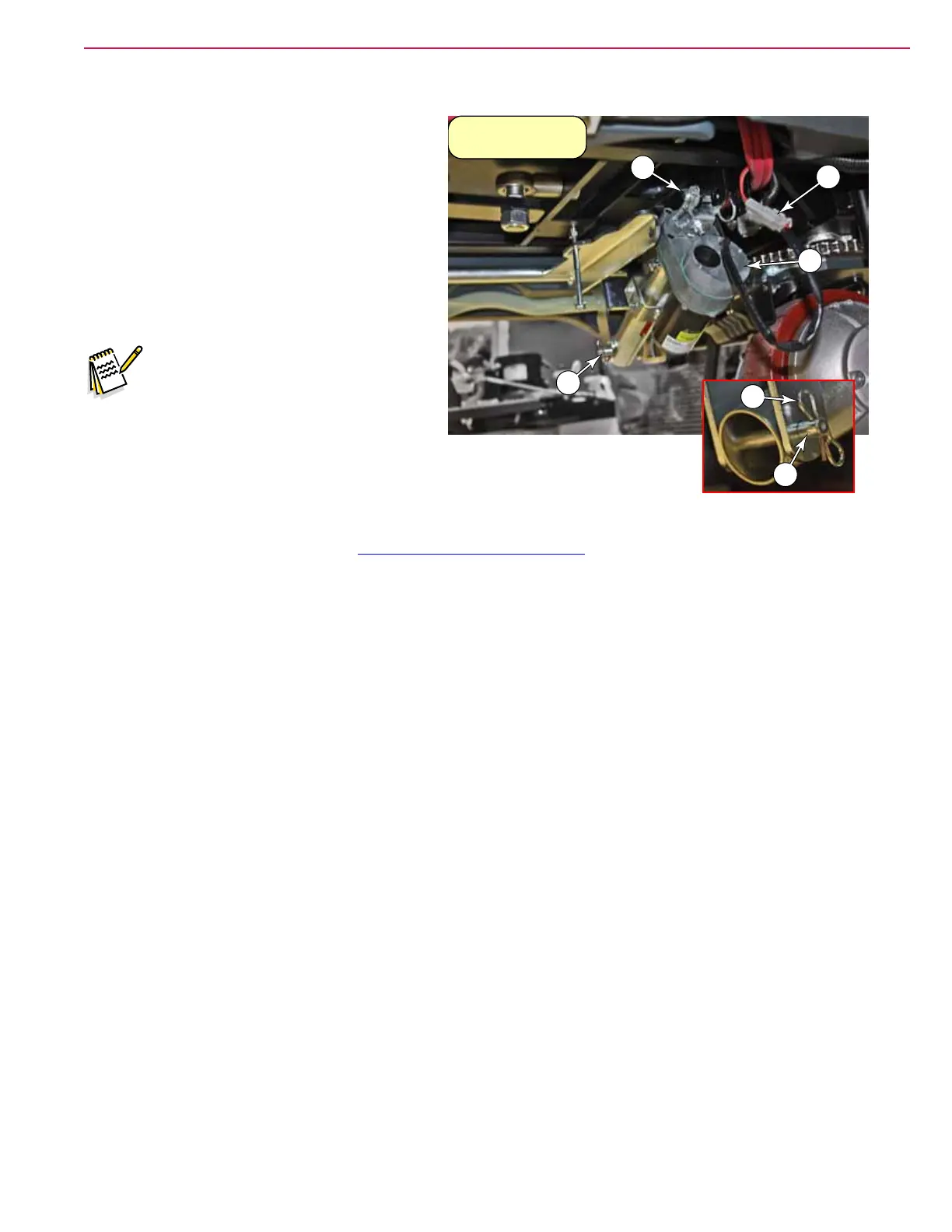

Deck Lift Actuator
1. Remove the scrub brushes, so the deck can
be lowered without pressing on the oor.
2. From the service menu, lower the scrub
deck, and then press the E-stop to lock out
all motor functions, and then disconnect the
main battery connector.
3. As necessary, use blocks to take the weight
off the scrub deck and deck lift mechanism.
4. Disconnect the actuator motor connector (B).
Note: Once the actuator is
disconnected from either end,
take care to not allow the nut
housing to rotate with respect to
the leadscrew.
5. Remove the bow-tie cotter pin (C2) from the
pivot pin (C1), and remove the pivot pin.
6. Repeat for the second pivot pin, and remove the actuator.
7. During replacement, perform the Lift Actuator Limit Adjustment described on page 191.
B
A
C
C
C2
C1
Scrub deck
removed for clarity
To Next Page
