144Service Manual – SC5000 24 - Electrical System
Sheet 5: Power Module, Machine Power
X122
X62
(Sheet 5)
(Sheet 5)
(Sheet 5)
(Sheet 5)
(Sheet 5)
X123
X116
X115
MAIN
GROUND LUG
[34114]
PIN# WIRE COLOR TERM. NAME
1 W018A GRY
4.SPL-17
Bat-
Main Ground Lug
X122
[130191]
PIN# WIRE COLOR TERM. NAME
1 W218F GRN-GRY
2.F10-3
Power Mod M4-
Power Mod M4-
X109
[130191]
PIN# WIRE COLOR TERM. NAME
1 W219F GRN-GRY
2.F10-4
Power Mod M5-
Power Mod M5-
X110
[776273-1]
PIN# WIRE COLOR TERM. NAME
1 W232 BRN-GRY
6.X83-2 Deck Actuator -
2 W019 BRN 2.X31-1 K2 Coil Out
3 W245 GRN 5.SPL-48 CAN1-L
4 W244 YEL 5.SPL-47 CAN1-H
5 W240 RED 3.X225-4 Curtis Prog +15V
6 W231F BRN-RED 2.F10-8 Deck Actuator +
7 W242 PNK-YEL 3.X225-1 Curtis Prog RX
8 W243 PNK-BRN 3.X225-3 Curtis Prog TX
9 W202 YEL 3.SPL-11 KSI In
10 W233F BLU-RED 2.F10-5 Opt. Pump (PM M8+)
11 W234 BLU-GRY 7.X76-2 Opt. Pump (PM M8-)
12 W241 BLK 3.X225-2 Curtis Prog Gnd
13 W230 BRN-WHT 7.X75-1 Squeegee Act. +
14 W229F GRN-RED 2.F10-7 Squeegee Act. -
Power Module
J6
KSI (4)
PIN# WIRE COLOR TERM.
1 W016A BLU
4.X28-1
1 W021 BLU 6.X13-1
1 W065 BLU 2.X80-1
1 W073 BLU 7.X151-1
1 W075 BLU 2.J10-7
SPL-27
Power Mod M2-
PIN# WIRE COLOR TERM.
1 W217 BRN-GRY
5.X107-1
1 W217AF BRN-GRY 2.F10-1
1 W217BF BRN-GRY 2.F10-9
SPL-63
Power Mod M1-
PIN# WIRE COLOR TERM.
1 W216 BRN-GRY
5.X106-1
1 W216AF BRN-GRY 2.F10-2
1 W216BF BRN-GRY 2.F10-10
SPL-15
Bat-
PIN# WIRE COLOR TERM.
1 W167 GRY
2.X189-3
1 W174 GRY 6.X203-9
1 W165 GRY 3.J5-1
1 W192 GRY 3.X219-1
SPL-51
[34114]
PIN# WIRE COLOR TERM. NAME
1 W018B GRY
2.SPL-13
Bat-
Main Ground Lug
X123
Headlight/Beacon
PIN# WIRE COLOR TERM.
1 W068 GRY
2.X80-2
1 W074 GRY-BLU 7.X151-2
1 W156 GRY 4.J1-8
SPL-64
CAN1-L
PIN# WIRE COLOR TERM.
1 W245 GRN
5.J6-3
1 W094A GRN 3.SPL-43
1 W094B GRN 6.SPL-39
SPL-48
CAN1-H
PIN# WIRE COLOR TERM.
1 W244 YEL
5.J6-4
1 W093A YEL 3.SPL-42
1 W093B YEL 6.SPL-40
SPL-47
[130191]
PIN# WIRE COLOR TERM. NAME
1 W216 BRN-GRY
5.SPL-15
Power Mod M1-
Power Mod M1-
X106
[130191]
PIN# WIRE COLOR TERM. NAME
1 W217 BRN-GRY
5.SPL-63
Power Mod M2-
Power Mod M2-
X107
[130191]
PIN# WIRE COLOR TERM. NAME
1 W222F BRN-WHT
2.F10-6
Power Mod M3-
Power Mod M3-
X108
Main
Ground Lug
Brush Motors
Side Sweep
Motor
Power
Module Area
[940]
PIN# WIRE COLOR TERM. NAME
(-) W012 BLK
3.X62-1
Batt-
(+) W003 RED 3.X37-1 F1 Bat+
Main Disconnect (Machine)
X61
[322870]
PIN# WIRE COLOR TERM. NAME
1 W012 BLK
3.X61-(-)
Batt-
Main Ground Lug
X62
[322870]
PIN# WIRE COLOR TERM. NAME
1 W003 RED
3.X61-(+)
F1 Bat+
K2-1 Common
X37
56120211
Power Module Power
[33465]
PIN# WIRE COLOR TERM. NAME
1 W200 RED
3.X104-1
K2 Bat+
K2-2 K2 Bat+
X38
[33465]
PIN# WIRE COLOR TERM. NAME
1 W200 RED
3.X38-1
K2 Bat+
Power Module B+
X104
56120208
CB2 Power
[33465]
PIN# WIRE COLOR TERM. NAME
1 W004B RED
3.X35-1
F1 Bat+
K2-1 Common
X205
[33465]
PIN# WIRE COLOR TERM. NAME
1 W004B RED
3.X205-1
F1 Bat+
CB2-1 Power
X35
POWER MODULE
CONTACTOR
K2
X37
X118
X205
X31(Sheet 2)
(Sheet 2)
(Sheet 5)
(Sheet 5)
F1 Bat+ K2 Bat+
(Sheet 2)
(Sheet 2)
(Sheet 5)
X32
X30
X38
2
43
1
1
3
4
2
56120209
Drive Controller Ground
[33465]
PIN# WIRE COLOR TERM. NAME
1 W161 BLK
3.X35-1
Bat-
Main Ground Lug
X115
[33465]
PIN# WIRE COLOR TERM. NAME
1 W161 BLK
3.X115-1
Bat-
Drive Controller B-
X111
56120207
Power Module Ground
[33465]
PIN# WIRE COLOR TERM. NAME
1 W201 BLK
3.X105-1
Bat-
Main Ground Lug
X116
[33465]
PIN# WIRE COLOR TERM. NAME
1 W201 BLK
3.X116-1
Bat-
Power Module B-
X105

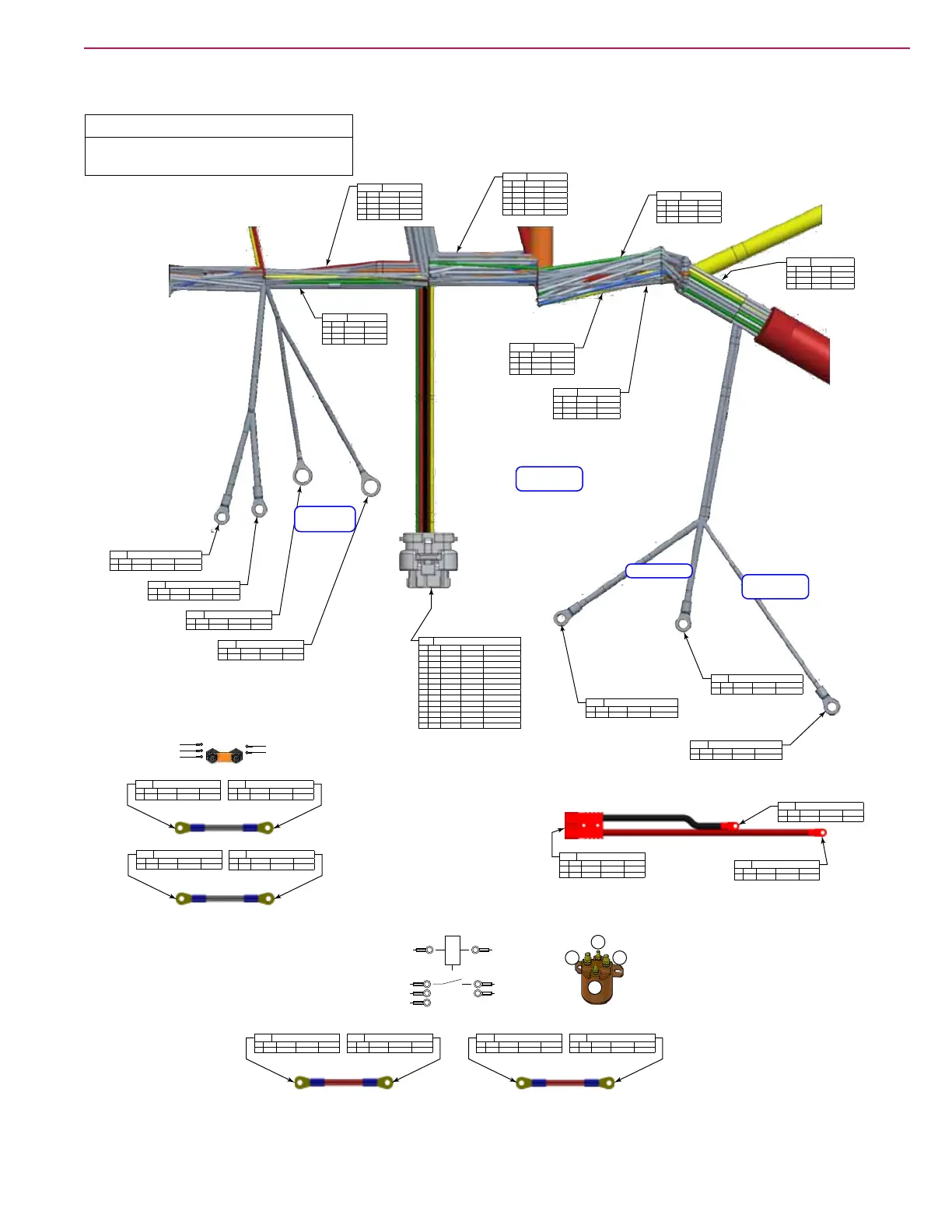

Harness Diagram and To-From Tables
Sheet 5: Power Module
Machine Power Connections
