17Service Manual – SC5000 03 - General Information

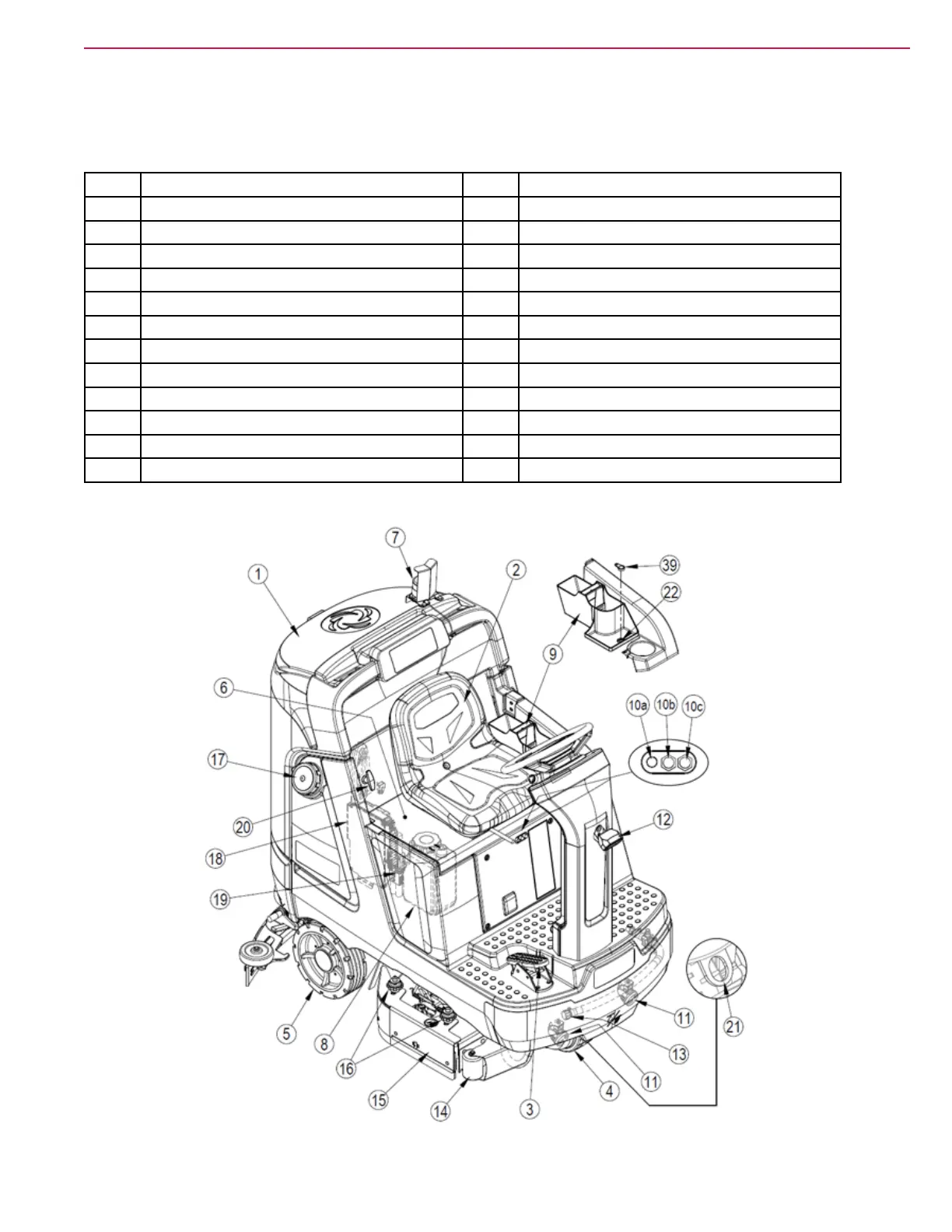

Machine Components
Front RH View
1 Recovery Tank Cover 11 Headlights (optional)
2 Operator’s Seat 12 Blue Light (optional)
3 Drive Pedal 13 Solution Tank Drain Hose
4 Drive Wheel 14 Front Roller Bumper
5 Rear Wheel 15 Scrub Deck
6 Battery Compartment (under seat) 16 Side Blade Assembly Removal Knobs
7 Warning Beacon 17 Solution Tank Fill
8 Detergent Cartridge (EcoFlex models only) 18 Onboard Battery Charger (optional)
9 Storage Box 19 Machine Battery Connector
10 Circuit Breakers 20 Battery Compartment Latch
10a Drive Controller 70 Amp (CB2) 21 Tie-Down Location (1 front)
10b Control Board 5 Amp (CB1) 22 SmartKey™ Reader
10c Control Board 5 Amp (CB3) 39 Magnetic SmartKey™
