149Service Manual – SC5000 24 - Electrical System

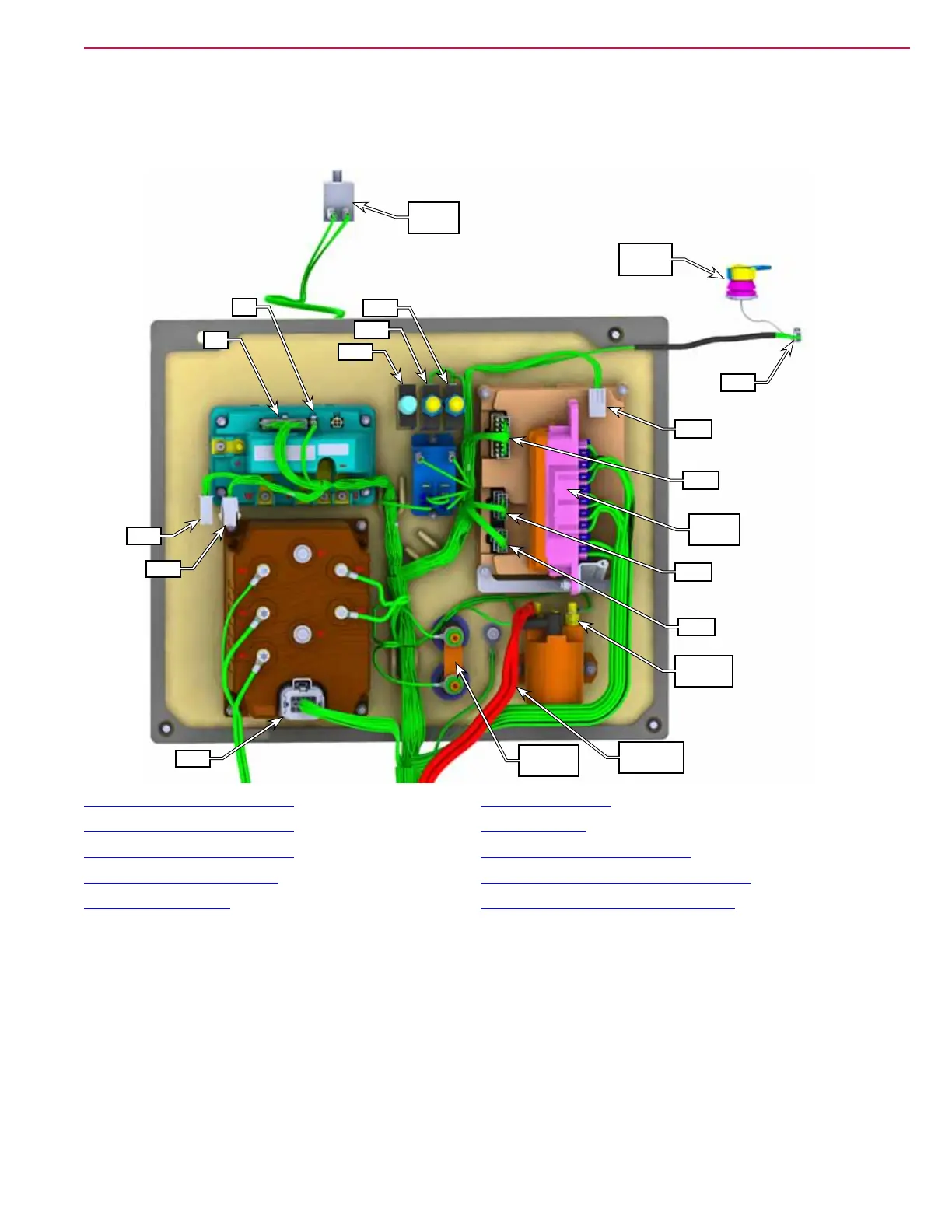

Main Harness, Electrical Bay
J1 Main Machine Controller ............................ 153
J2 Main Machine Controller ............................ 154
J3 Main Machine Controller ............................ 154
J4 Drive Controller Brake ................................ 154
J5 Drive Controller ........................................... 155
J6 Power Module .............................................. 156
P6 Smart Key .................................................... 160
X207 CAN Bus Access Port ............................ 164
X219 Drive Controller Programmer .............. 165
X225 Power Module Programmer .................. 165
Seat
Switch
Main B+
Lug
Main Gnd
Lug
K2 Power
Out
Fuse
Block
X207
J1
J2
J3
Key
Reader
P06
CB1
J5
J4
CB3
CB2
X225
X219
J6
