2 Instruction Descriptions
2-60
NJ-series Instructions Reference Manual (W502)
End
The End instruction ends execution of a program in the current task period.
None
The End instruction ends execution of a program in the current task period.

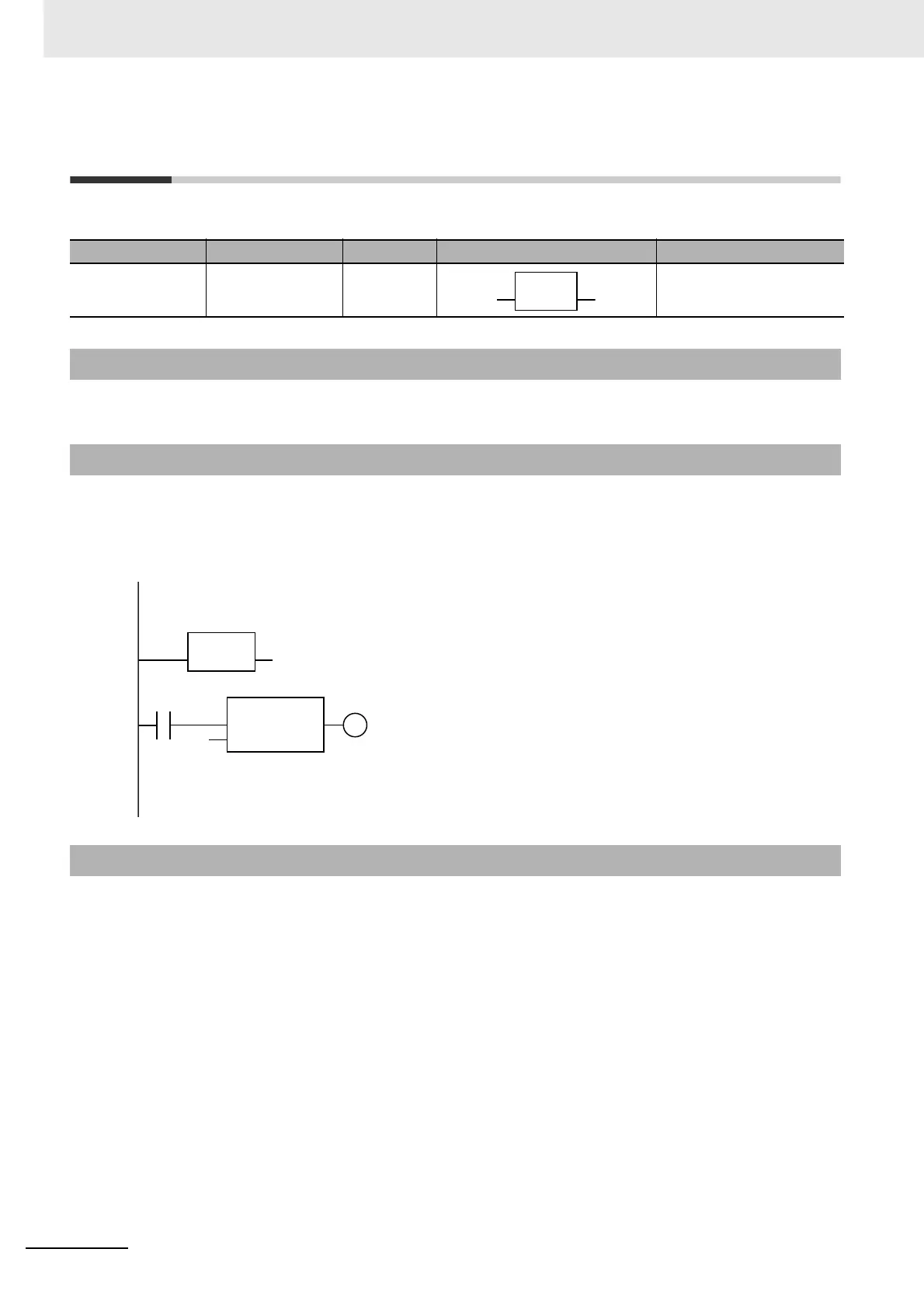

The following figure shows a programming example. When the End instruction is executed in the exam-
ple, the SR instruction that follows it is not executed.
• This instruction must be used only in a program.
• If this instruction is used in a function, function block, or inline ST, a building error will occur.
• You must connect this instruction to the left bus bar.
Instruction Name FB/FUN Graphic expression ST expression
End End FUN None
Variables
Function
Precautions for Correct Use
End
EN ENO
LD
End
EN ENO
B
A
abc
SR
Set1 Q1
Reset
SR_instance
