2 Instruction Descriptions
2-378
NJ-series Instructions Reference Manual (W502)

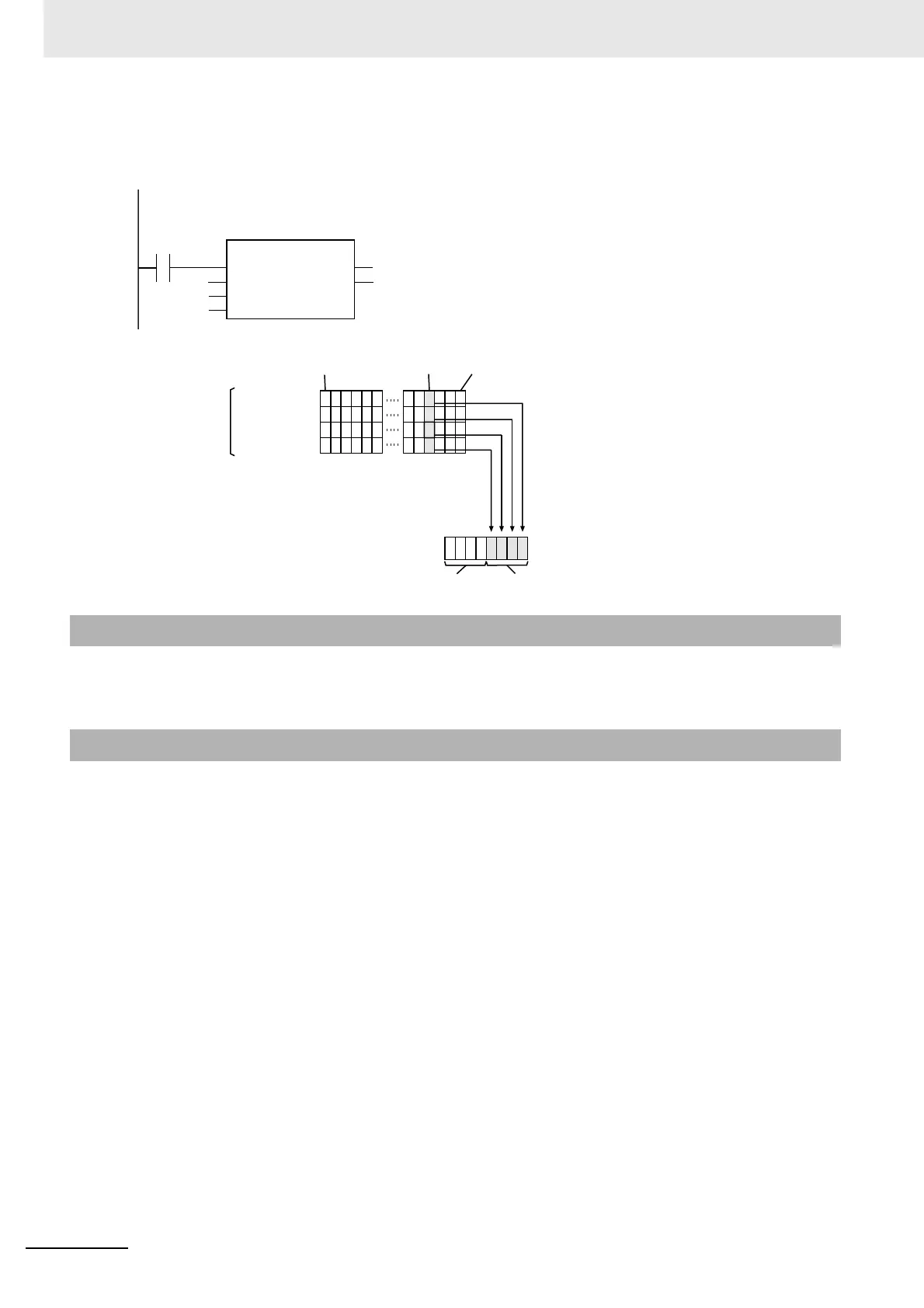

The following example shows the ColmToLine_BYTE instruction when Pos is USINT#3 and Size is
USINT#4.
Use the LineToColm instruction (page 2-379) to output a bit string to the specified bit position in array
elements.
• If the value of Size is 0, all bits in Out change to FALSE.
• An error occurs in the following cases. ENO will be FALSE, and Out will not change.
• The value of Size is outside of the valid range.
• The value of Pos is outside of the valid range.
• The value of Size exceeds the array area of In[].
• In[] is not an array of bit strings.
• An array without a subscript is passed to In[].
Additional Information
Precautions for Correct Use
def:=ColmToLine_BYTE(abc[3], USINT#4, USINT#3);
LD ST
def
abc[3]
USINT#4
USINT#3
ColmToLine_BYTE
EN ENO
In
Size
Pos
Bit 0
Pos=
USINT#3
Most-significant bit
Out=def
In[0]=abc[3]
In[1]=abc[4]
In[2]=abc[5]
In[3]=abc[6]
0 0 0 0 1 0 1 0
Size=USINT#4
Size=USINT#4
0 0 0 0 0 0
0 0 0 0 0 0
0 0 0 0 0 0
0 0 0 0 0 0
0 0 0 0 0 0
0 0 1 0 0 0
0 0 0 0 0 0
0 0 1 0 0 0
FALSE is set.
